Error with importing into SBuilderX

Discussion in 'Ground2k4, SBuilder, SBuilderX' started by See Michel, 17 Jul 2017.

  1. See Michel

    See Michel

    Joined:
    1 May 2014
    Messages:
    9
    Country:
    germany
    Hi, I have two issues.
    First:
    When I try to append BLN, XML or SHP file I created with CVX extractor I get an error message.

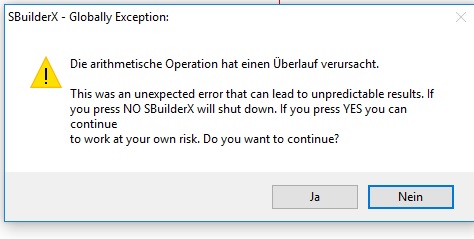

    first error.jpg
    Can someone tell me what to do? Is there a way to convert to SBX?

    Second:
    When I try to append a SRTM Water Body Data SHP file from USGS EarthExplorer I get this error:
    SBuilderX can not read this Shapefile!
    Can some one please tell me what to do? Or best: Post a SBX file or at least a compatible SHP file.

    Thank you!!


    Attached Files:

  2. GaryGB

    GaryGB

    Joined:
    23 Dec 2005
    Messages:
    3,239
    Country:
    us-illinois
    Hello:

    "Die arithmetische Operation hat einen Uberlauf verursacht." = "Arithmetic operation resulted in an overflow"


    Because I can successfully Append and thereby import the attached SHP files in SBuilderX version 3.14 (64-Bit) on (English) Windows-7 (64-Bit), I'm curious as to whether, in the (German Language) Windows you are using:

    * Do you have Windows configured to use the period (.) rather than the comma (,) in:

    Control Panel > Region and Language > {Formats} Tab > [Additional Settings] Button > Customize Format > Decimal Symbol

    http://www.fsdeveloper.com/forum/threads/sbuilderx-not-working.357335/

    http://www.ptsim.com/forum/viewtopic.php?p=6980


    FYI
    : SBuilderX was written using Visual Basic, which IIUC, can have errors when processing Floating Point precision numbers if the Windows numeric Decimal Separator is not set to the "Period" character.

    https://www.google.com/#q=Arithmetic+operation+resulted+in+an+overflow+visual+basic


    Hope this helps ! :)

    GaryGB

    Last edited: 17 Jul 2017
  3. iangbusa

    iangbusa

    Joined:
    19 Aug 2010
    Messages:
    214
    Country:
    us-ohio
