MSFS Getting Started With FS2020 HTML Gauges

Messages
27
Country
unitedstates

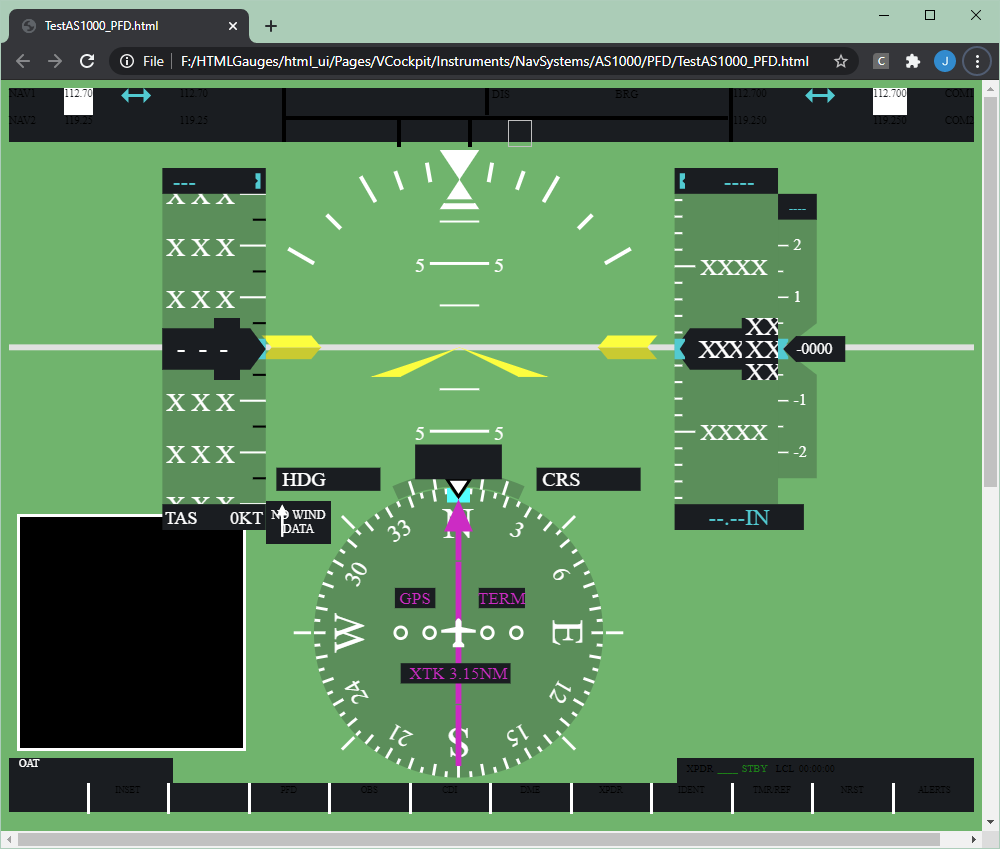

Here is a sneak peek at my progress after many hours of sifting and rewiring the html_ui code tree. This is the AS1000 PFD "running" from an entirely isolated code base outside of the game. My end goal is to add the bezel and get it working as a true 2D gauge when running in its own window


Attachments

  • TestAS_1000_PFD.png
    73.9 KB · Views: 371
Messages
9
Country
panama
Thanks for this!
I would like to be able to explore local L:SimVars in any plane with a debug-like 2D window, I have been fishing around but still came up emptyhanded - how do you hook gauges so that they appear in the sim without replacing an existing one?

Messages
27
Country
unitedstates
Thanks for this!
I would like to be able to explore local L:SimVars in any plane with a debug-like 2D window, I have been fishing around but still came up emptyhanded - how do you hook gauges so that they appear in the sim without replacing an existing one?
The community folder IS the hook. If your replaced files follow the exact folder path starting from html_ui, it will run your code. You can even override the core .js files. What do you mean by L:SimVars? Have you done any XML gauges?

Messages
9
Country
panama
Apologies, I went ahead of myself.
I am looking at Gauges because I ultimately want to gain access to the Local SimVars and Events currently inaccessible via SimConnect (for example, from G1000 or A320Neo virtual cockpit).

For now, I am still struggling to get the sample gauge running as you were showing - because I am VS-impaired I could not create "a basic Web project for JS HTML with CSS" in Visual Studio. I can't find a template and, if I do basic .NET Web app, it configures the solution as C# csproj which doesnt help.
From here its all downhill: Debug doesn't work with error "please select a valid startup item", the "set at startup document" context item is not available when I right-click the html file.

Messages
27
Country
unitedstates
Apologies, I went ahead of myself.
I am looking at Gauges because I ultimately want to gain access to the Local SimVars and Events currently inaccessible via SimConnect (for example, from G1000 or A320Neo virtual cockpit).

For now, I am still struggling to get the sample gauge running as you were showing - because I am VS-impaired I could not create "a basic Web project for JS HTML with CSS" in Visual Studio. I can't find a template and, if I do basic .NET Web app, it configures the solution as C# csproj which doesnt help.
From here its all downhill: Debug doesn't work with error "please select a valid startup item", the "set at startup document" context item is not available when I right-click the html file.
Start VS with no projects loaded. Go to File ->Open->Website ->Filesystem. From there just pick the root file folder that has your html, and js in it. You do not have to configure IIS. It should just come up showing you the folder contents. Right click an html file and select "set as start page" Click the green arrow on the toolbar which should launch the IIS Express web server. Debugger and breakpoints should now work

Messages
9
Country
panama
Start VS with no projects loaded. Go to File ->Open->Website ->Filesystem. From there just pick the root file folder that has your html, and js in it. You do not have to configure IIS. It should just come up showing you the folder contents. Right click an html file and select "set as start page" Click the green arrow on the toolbar which should launch the IIS Express web server. Debugger and breakpoints should now work
Thanks for replying but that didnt quite work, i didnt get at all the context menu "set at statup document".
I rebuilt my PC recently, so I may try again in the next few days.
Thx again!

Messages
135
Country
ca-britishcolumbia
Thanks for sharing your findings and that seems a good way to develop gauges and have it instantly tested.
One thing though, I could not find that JS folder. Also, I don't have the fs-base-ui folder, but fs-base-ui-pages and fs-base-ui-vr.
My version is the one from the Windows Store, not the Steam one. Are they that different or was there an update that removed/renamed the fs-base-ui folder?
Would you mind sharing that JS folder if you still have it?

Messages
135
Country
ca-britishcolumbia
Never mind. Find it in C:\Program Files\WindowsApps\Microsoft.FlightSimulator_1.12.13.0_x64__8wekyb3d8bbwe. Was looking in the wrong folder.

Messages
1,185
Country
canada
But can you open those files? I keep getting file access denied. Can't open file xxxx.js etc. Trying to take ownership does not work for me.

Messages
135
Country
ca-britishcolumbia
But can you open those files? I keep getting file access denied. Can't open file xxxx.js etc. Trying to take ownership does not work for me.

Yep, I had I hard time too and I advice against messing with the permissions for that folder or the WindowsApps one.

I've found a workaround though. As the simulator itself has access to that folder you can copy it through the simulator. Enable DevMod and get access to the file explorer by say, creating a new project and clicking "..." to open it. Then you can browse to that folder and copy whatever you want to wherever you want, but remember to copy and paste using the same window.

Messages
389
Country
australia
Yep, I had I hard time too and I advice against messing with the permissions for that folder or the WindowsApps one.

I've found a workaround though. As the simulator itself has access to that folder you can copy it through the simulator. Enable DevMod and get access to the file explorer by say, creating a new project and clicking "..." to open it. Then you can browse to that folder and copy whatever you want to wherever you want, but remember to copy and paste using the same window.
That sir is a handy tip ☺️

Messages
135
Country
ca-britishcolumbia
That sounds like Admin access, as I suggested. Did you try it?
WindowsApps folder and subfolders have special permissions. You have to take ownership of the folder and add yourself or the admin group with Full Control to have access, then overwrite subfolder permissions. Even after that you may have some inheritance issues on the subfolders.

Be advised that changing those permissions may adversely affect either your FS installation or any other windows app.

The workaround has no side effects though.

Messages
669
Country
australia
Amengol's tip saved me. Just load MSFS. Then create a dummy project and try to add a file. MSFS will open a standard file explorer and you can navigate to the html_ui folder, right click copy, navigate to your desired location and paste.

Fuck you Microsoft for making things so stupid.

Messages
669
Country
australia
After searching high and low for information on how to write HTML gauges I stumbled upon a Test HTML file left in by the FS2020 developers. That got me started.
Thank you for the video. Could you please upload the css file you used in your video. I'm completely new to html and css and js so it would be a big help in my learning. I've managed to get the test gauge running in a browser but without the css it is fixed in size.

Edit: I found the width and height controls in the html. Setting them to 100% and the margin-left and margin-top to 0 gets me a rescaleable HSI.

Last edited:
Messages
3
Country
germany
Trank you for the video, That was what I am was looking for. I had a hard time to access the js files, because I installed it via XBox Game Pass for PC which installed the files into an encrypted container, only accessible from the XBox app starter. But there is always a way... (see https://billyhulbert.github.io/2020/10/07/msixvc-xbox-pc/ ).
Could you maybe post the html file for the AS1000 PFD from your picture above? I would like to get the A320 PFD Running but I think I need a file with some kind of <body></body> that actually calls some functions to begin with. Would be great!
Cheers,
HellG

Messages
14
Country
us-texas
MoMadenU,

Where did you get or how did you write the the TestHsiIndicator.css file in the first video?

Thx
SM32870
