MSFS20 Parllax mapping. 3ds Max

Messages
105
Country
ukraine
Curious if anybody has succeded in creating a parallax window in MFS using 3ds and is willing to share how that can be done. I had a look at the example window that comes with SDK samples, but can't manage to make my own.

Can you link me to these samples? I will try to help you. Because I did not find ones. I found only DA62 and Test Aircraft, both of them without parallax windows obviously.

Can you link me to these samples? I will try to help you. Because I did not find ones. I found only DA62 and Test Aircraft, both of them without parallax windows obviously.
Navigate to your SDK folder and then open sample materials, there in resources you’ll have a 3ds max scene with all materials.

Ok, I understood how the material work.(Plus now I finally understand how to make a PortHoles, YAY! Personal success )

Material have 2 sets of textures and need to have 2 sets of uvw coordinates. First uvw channel is for the window itself, the second one - for "interior".

Now I need to know what you have done to try to say what's wrong.

Last edited:
Ok, I understood how the material work.(Plus i finally understand how to make a PortHoles, YAY! Personal success )

Material have 2 sets of textures and need to have 2 sets of uvw coordinates. First uvw channel is for the window itself, the second one - for "ïnterior".

Now I need to know what you have done to try to say what's wrong.
Many thanks, I’m quite sure I don’t have the second UV channel, but I don’t even know how to create it

Many thanks, I’m quite sure I don’t have the second UV channel, but I don’t even know how to create it

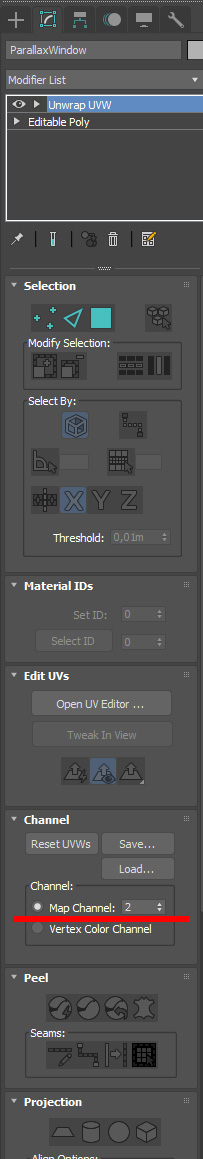

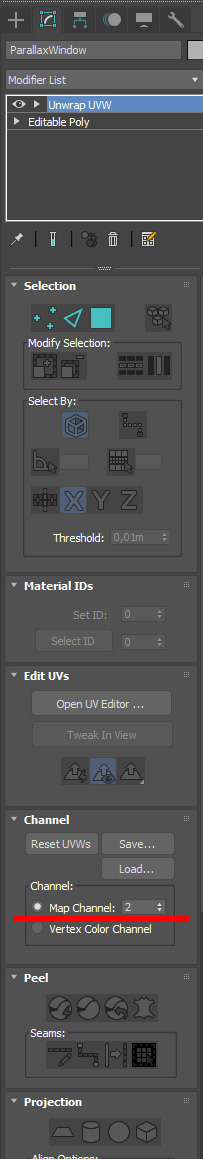

In the UVW unwrap modifier, there is a drop-down list named Channel

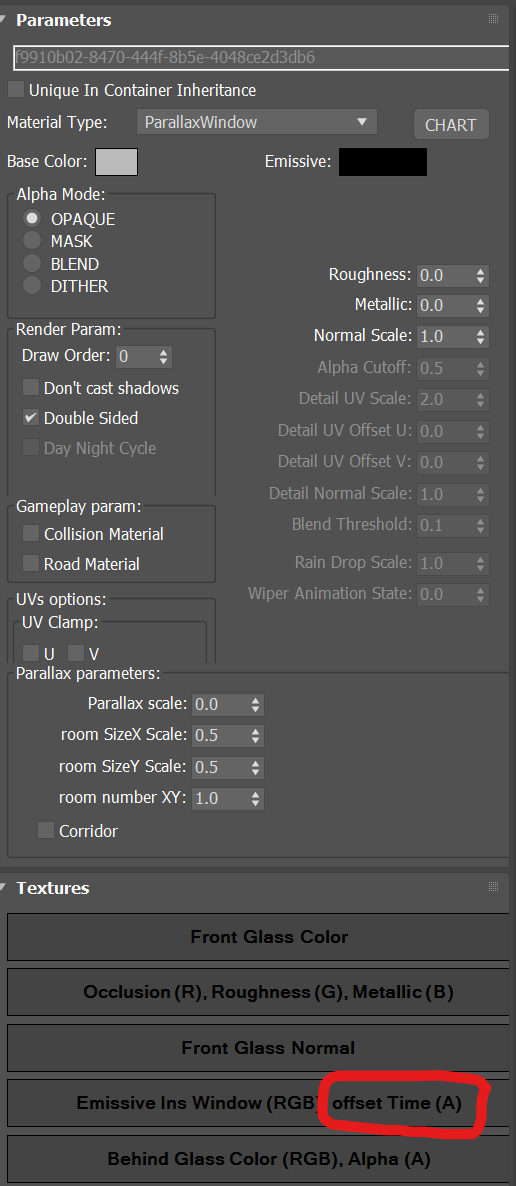

Does anybody know how to use "offset Time" for ParallaxWindows? In 3ds max you can find it here

Does anybody know how to use "offset Time" for ParallaxWindows? In 3ds max you can find it here
View attachment 64929
I'm a little lost on this as well, I think the brighter textures emit more light during the light and the emissive color tab determines the light color.

But then I look at their model "Al Hamra Tower" and it has different color lights, and i'm having trouble getting the Parallax windows fit so perfectly on complex models like they have on that model.

I'd say i've figured out 50% of this whole Parallax Window stuff, the documentation is just so sparse.

Does anybody know how to use "offset Time" for ParallaxWindows? In 3ds max you can find it here
View attachment 64929
For anyone that comes across this when searching for an answer in the future, its related to the offset for when the emis texture will appear at night rather than all at once when the day/night cycle rolls over. The opacity % is related to that time offset in some number of units.
