Runway disappears under the ground on Prepar3d V5

L

lumat

Messages
318
Hi everybody

I've a problem, appeared with Prepar3D V5 on one of my aiports :

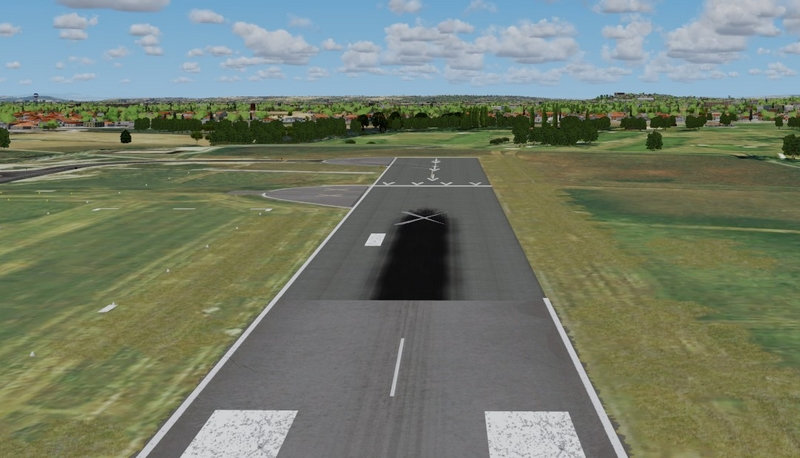

As shown below, the end of the runway goes under the ground.

I've a background poly set as "flatten" (Same altitude than the stock airport) and another background poly "Exclude Specific Airport Backgrounds Flatten MaskClassMap Autogen" to remove the stock data.
Strange : only the end of the runway goes under the ground and no the aprons or the taxi nearby




Somebody has an idea to solve this problem ?
Thank you for your help

NB : I use ADE 1.79 last version

Below another screenshot with the ADE Runway no transparent.
My problem seem to be only on the right (the white line, taxi and apron are visibles on the left.



Maybe it can help to find a solution ?

I have seen this somewhat in my own project. What ended up working was, adding a lot of small Flatten Polygons and adjusting them each bit by bit, until they sat right. (My Runways are sloped so this will be more extreme in my case.)
What I suspect is the edge of the flattens pull slightly higher as they join up with the not flattend terrain.

There are four new airport background flattens with _smooth at the end of the name. These are available in the latest ADE version but don't seem to have any effect. This may be because ADE is not coded correctly, the third party code I use does not like them or LM did not implement them properly. We are testing but the expectation is that they are intended to make these types of transition less harsh

Thank you for your answers :)
would that be some kind of bug? In this case, I should wait a little. Maybe a solution from LM
it would be logical since it is my only airport with the problem

NB : if I set the geographic coordinates like the stock airport ones, The problem disappear.
Of course, in this case, there is an offset with the background image (made with SbuilderX), since the coordonates of
the stock airport are wrong.
It seem to me difficult to change them, but, it seem to me interesting to precise it

Last edited:
