FSX There are no 3d objects when creating approach lights.

Messages
8
Country
russia
The placement data for Approach_T_Post.mdl and Approach_T_Head_X_x_X.mdl do not appear in AFLT_Bases_9.xml and AFLT_Bases_9.bgl, the models themselves are present in bgl. AFLT_Lights_9 are compiled correctly. AFLT 4.5.2.14


Attachments

  • USDB_ADEX_AEA.rar
    10.7 KB · Views: 47
Last edited:

gadgets

Resource contributor
Messages
9,388
Country
ca-britishcolumbia
So, if everything compiles correctly and the items of concern are displayed, what is the problem?

Messages
8
Country
russia
There is no 3d objects. I tried it in the default Tiksi (UEST) - there are also no posts and heads.


gadgets

Resource contributor
Messages
9,388
Country
ca-britishcolumbia
the models themselves are present in bgl. AFLT_Lights_9 are compiled correctly.
I misunderstood the intent of this statement.

Please send me the AFLT Project folder for this airport and the airport .bgl file.

Messages
8
Country
russia
AFLT Project folder for this airport and the airport .bgl file


Attachments

  • USDB.rar
    65.9 KB · Views: 48
  • USDB_ADEX_AEA.bgl
    6.9 KB · Views: 46

gadgets

Resource contributor
Messages
9,388
Country
ca-britishcolumbia
The airport .bgl you sent is a FSX airport. I'm not surprised things don't work for FS9. SInce USDB does not appear to be a stock airport in either FS9 or FSX, I'm unable to diagnose any further.

That being said, AFLT on my system generates the .mdl files for post and head for FS9 in AFLT_USDB_Bases_9.xml. (AFLT "doesn't care" for which version of Flightsim the airport .bgl applies.) Since FSX uses FS9 base models, the fsx and FS9 .xml should be identical.

Messages
8
Country
russia
I have placed the objects. I manually added objects to XML using AFLT coordinates and compiled it with a compiler for FSX, I had to create 4 heeds variants in GMAX with different offsets from the installation point.

Messages
8
Country
russia
Started over... I cleared all the project lights, created approach lights using the CALVERT template.

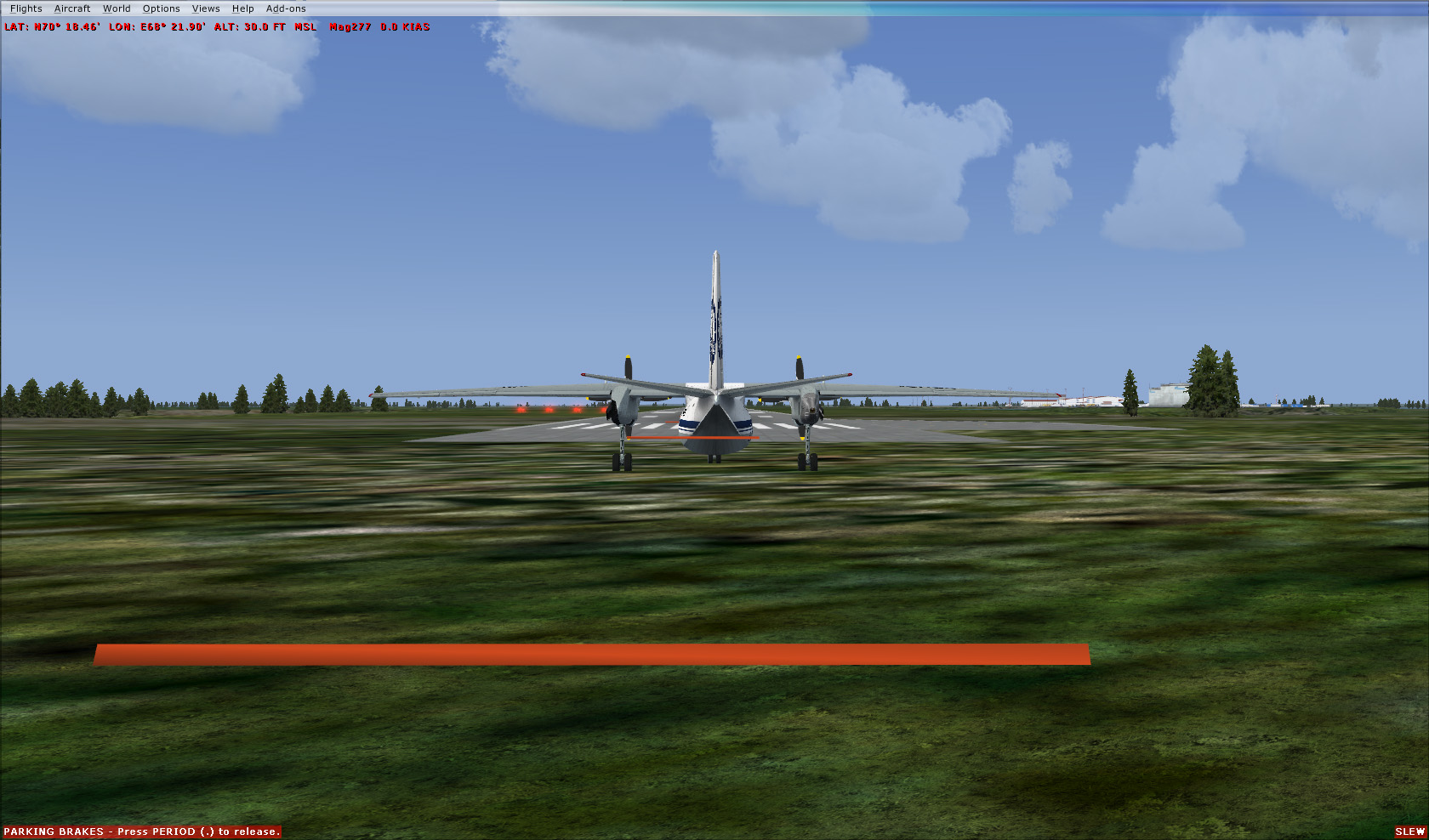

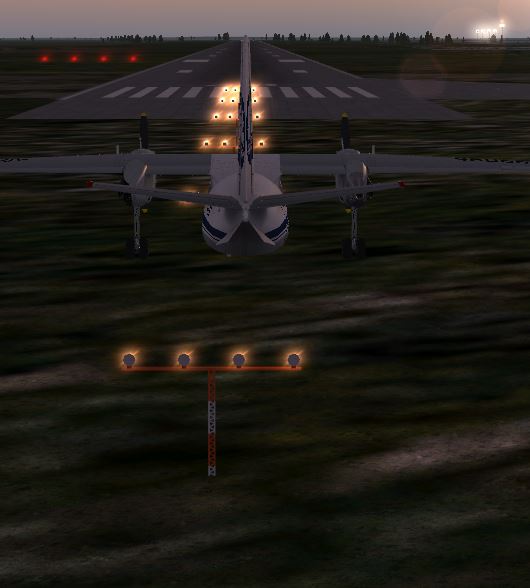

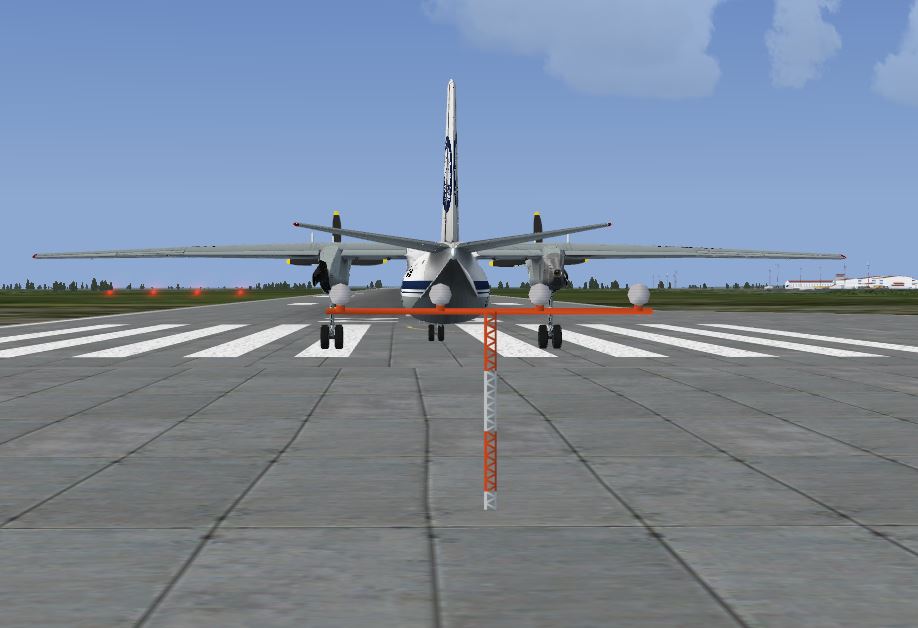

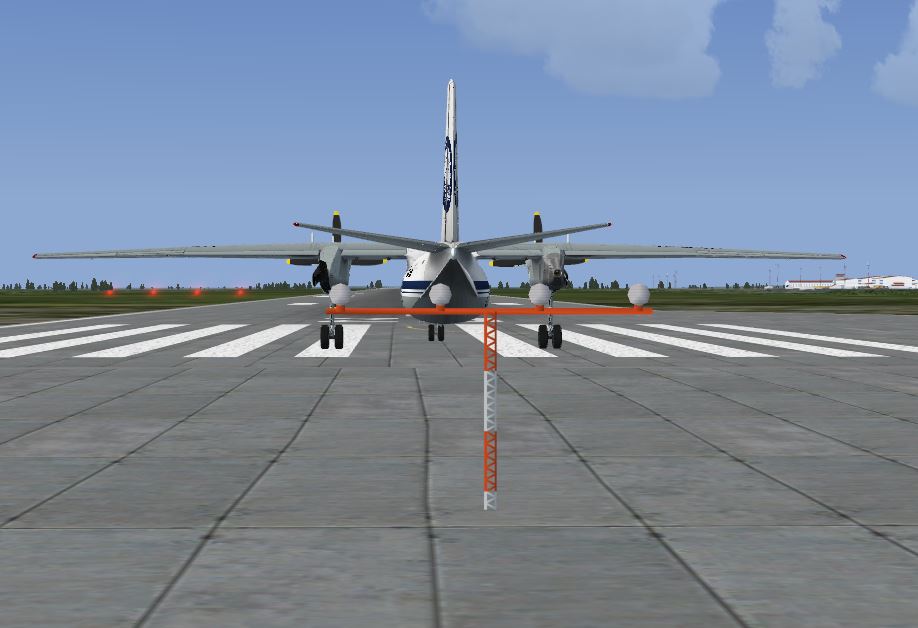

Posts and heads are missing. In addition, there are problems with BGL lights - they disappear against the background of the aircraft. However, this happens with all transparent FS9 objects if they are used in FSX...I decided to find out what is the reason for the absence of objects - the objects themselves or the object to which they are attached. I created a small 5x5 square with a transparent texture in GMAX. Edited XML, replacing objects with attachment points with this square.

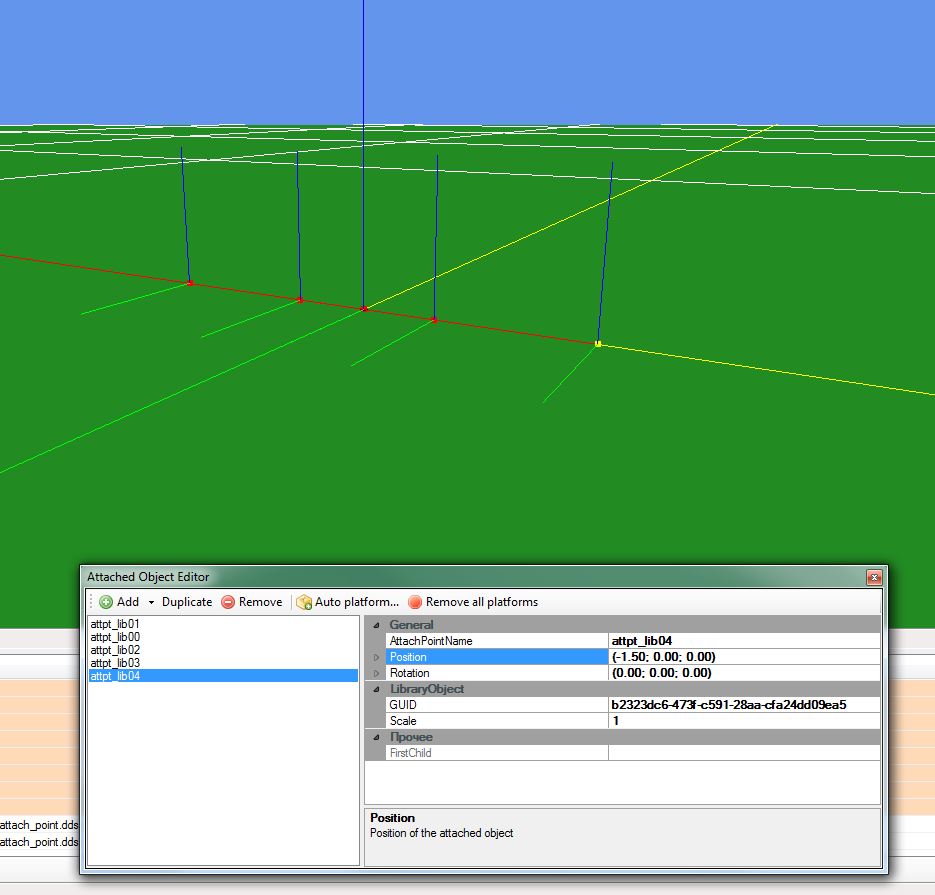

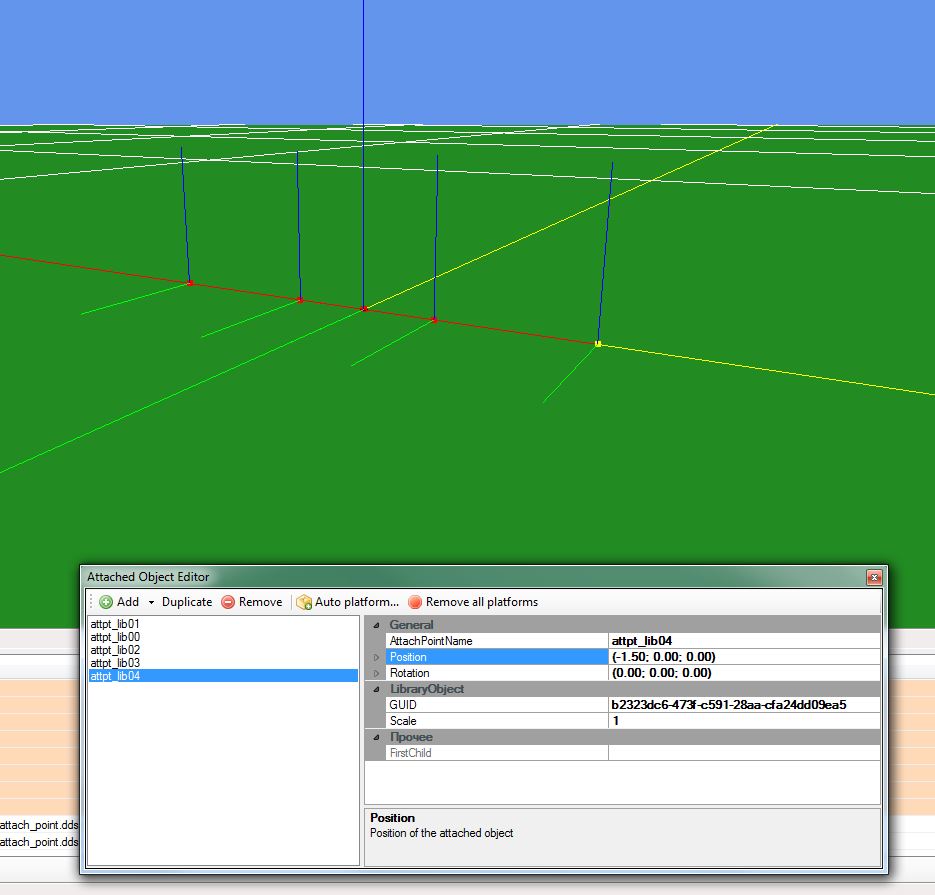

In MCX, I generated a new GUID's and renamed 2 new objects. Then I created new attachment points and compiled them with a compiler for FSX.

All objects are visible and are in their place.

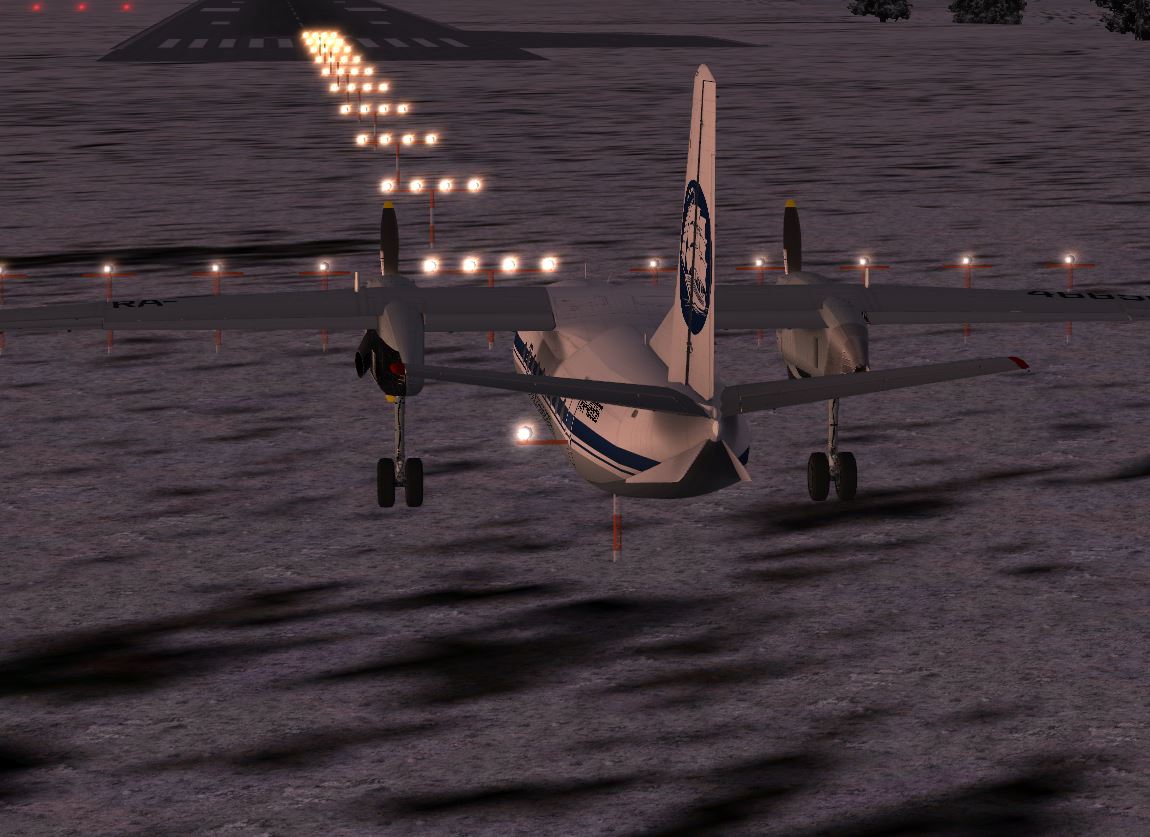

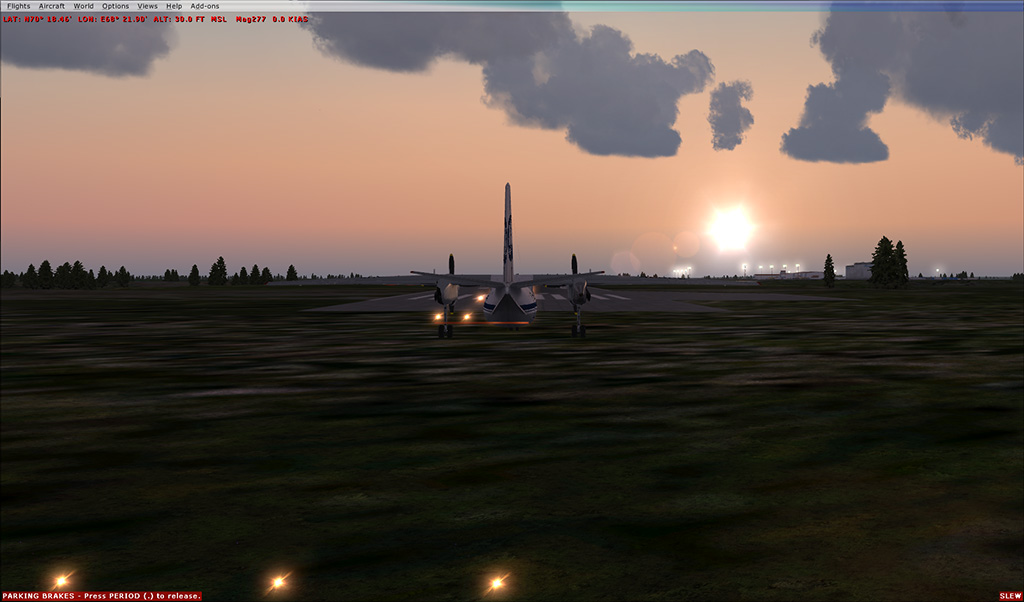

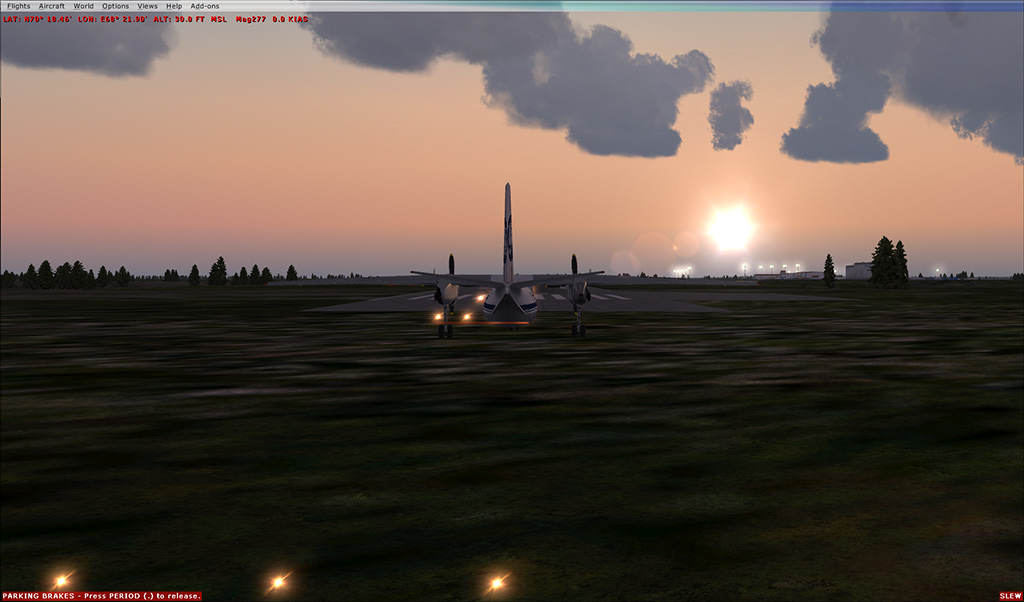

Although it seems that the lights are behind the lanterns - this is not the case... These are the problems of the material of the lights.
Added standard effects to MCX.

It looks like FSX ignores all attached objects if compiled for FS9. Therefore, no effects appear when compiling from AFLT with the "standard effects" option.

Last edited:

tgibson

Resource contributor
Messages
10,710
Country
us-california
Hi,

If there is ANY exclude file covering that area, the attached objects (the legs and the heads) will not appear, even if the exclude file is present in a scenery folder with a lower priority than the AFLT BGL files. ANY exclude file. Try removing all exclude files that cover that airport (temporarily) and see if they appear then.


gadgets

Resource contributor
Messages
9,388
Country
ca-britishcolumbia
Andrew, it's not clear what you are trying to accomplish. In the absence of you stating it explicitly, it is clear from my first couple of responses that I assumed you were using FS9. At no point have you taken issue with that assumption. Now it seems you are using FSX.

I have confirmed - and so have you in the AFLT .xml excerpt above - that AFLT does generate the .mdl files for the post and heads. I have further confirmed that all these 3D models display at your airport in FSX on my system - though I had to add a flatten since the default terrain elevation is nearly 300' (90 m) whereas the airport ARP elevation is just over 7m. (Even without the flatten, all the models display at default elevation.)

But, I would note one thing. Presumably, you are using the Russian version of Windows. A while ago, one of your countrymen had difficulty with another of my applications (TS Pro) using Russian Windows. The crux of the matter was that, under certain, as-yet-undefined circumstances, Russian Windows and/or NET Framework seems to handle Guids differently from their English/US counterpart. It seems significant now that when you replaced the guids, all was well.

This seems more than a coincidence. Consequently, I will take another look at the situation and report back.


gadgets

Resource contributor
Messages
9,388
Country
ca-britishcolumbia
Do you have access to an English version of Windows (not a Russian version with English language selected)? If so, please give it a try. I suspect everything will display properly.

Messages
8
Country
russia
У вас есть доступ к английской версии Windows (а не к русской версии с выбранным английским языком)? Если да, попробуйте. Я подозреваю, что все будет отображаться правильно.
Is the English version of Windows for development or FSX? Which version of FSX did you use for the tests? In early versions (without service packs), there were almost no problems with scenerys FS9. With the advent of SP1, the simulator has become completely different. I have FSX SP2.


gadgets

Resource contributor
Messages
9,388
Country
ca-britishcolumbia
I'm using the latest version, presumably SP2. It's running in Windows 7 compatibility mode.


gadgets

Resource contributor
Messages
9,388
Country
ca-britishcolumbia
Just re-reading your series of posts, in your initial post you said:
The placement data for Approach_T_Post.mdl and Approach_T_Head_X_x_X.mdl do not appear in AFLT_Bases_9.xml and AFLT_Bases_9.bgl
I This is normal. The post and heads are not called separately. The required number of each are called via attachpoints in the .mdl files for
Approach_T_1_x_0.00_White.mdl and Approach_T_4_x_1.00_White.mdl (which I have confirmed are present in the material you sent in Post #5 above), so separate placement data is not required.

I appreciate this does not solve your issue (which I remain convinced is a guid-related problem in the Russian version of Windows 10 for which I have yet to find a solution). But, this may aid in your understanding of what's going on "inside" AFLT.
