Animating a train

cobras

cobras

Messages
88
Country
chile
Hi guys.

I have a big doubt. After much testing, I finally managed to animate a vehicle on a curve and follow a path.

This time I am encouraging a train with two wagons, but when turning on a curve, turn straight and not as you would a train in reality. How do I make rotate as in reality and not straight.

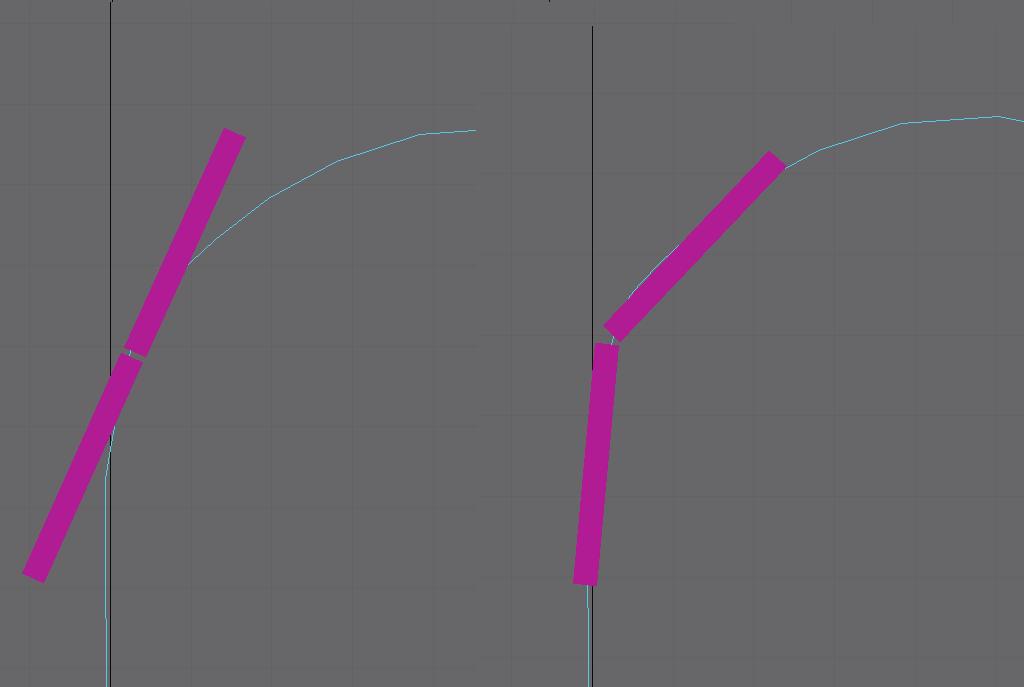

I leave a picture of my doubt. I hope I can help.

Sorry for my english

Greetings.


Attachments

  • train_animated.JPG
    21.7 KB · Views: 664
Hi Juan (:D), did you make the animation with the two wagons as 2 different objects or you attached them?

JCRL said:
Hi Juan (:D), did you make the animation with the two wagons as 2 different objects or you attached them?
Click to expand...

Hi Juan.

The second wagon attached to the first.

You are a member of Argentina Real?

Best regards.

Hi,

When you move an object along a line, it is the pivot point that will follow the line. But in real life such a wagon would have contact with the rails at the front and back. So what you need are actually two points following the line. But I am not sure if GMax has an option for that.

Have you try out at front and end of each waggon to make bogies.
And the bogies are the pivot point.

bogie


Better is maybe a jacob bogie:
jacob-bogie
Schematic of a Jakobs bogie (above) as opposed to traditional bogies (below).

Last edited:
Help me plis.

This is my model.

Greething


Attachments

  • train_path.JPG
    95.1 KB · Views: 670
Hi Juan,
I'm happy to help but you need to provide me the train and the track that you intend to used.
You can use File->Archive and everything I need will be zip together. You can attach this zip so we can take a look on that.
Regards,
Tic

Last edited:
Thanks.

Here I send you the model. But it would be good to write the help in the forum so that everyone understands.

Best Regards.


Attachments

Hi Cobra,
I 'm done with your file now. I make a link of the second train to the first one. Then they go along together. What you have to do is just animate the second one to match the tract by rotating it. I haven't export that yet but they look good in gmax.

Don't be so accurate with the move of second train so much. They move fast and user might not notice some minor "derail" that could happen.

Please tell me how they did when export to flight sim. Sometime they might not be the same as it look in gmax.

Regards,
Tic


Attachments

Hey

Thanks buddy, works perfect.

Aas I could draw you do it?.

Greetings and thanks.

Hi Juan,
I'm glad to hear that it works. Hope to see your work in Showroom.
Regards,
Tic

Hello again.

MakeMDL error when exporting the animation.

Anyone know what could cause the error.

Ajdunto photos.

Greetings


Attachments

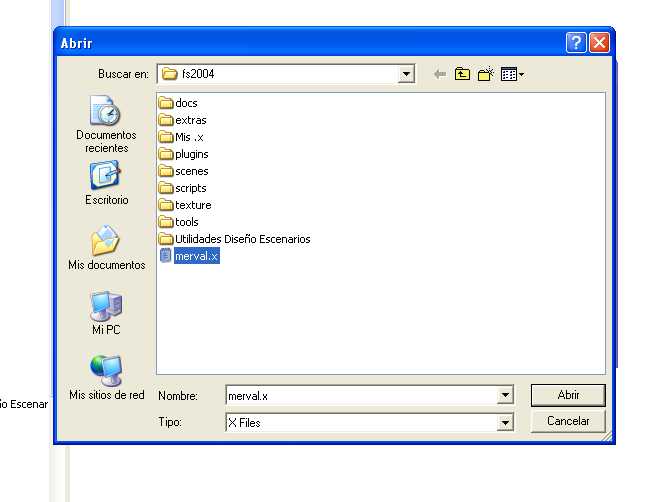

  • error1.jpg
    27.4 KB · Views: 543
  • error2.jpg
    30.3 KB · Views: 559
  • error3.jpg
    99.9 KB · Views: 564

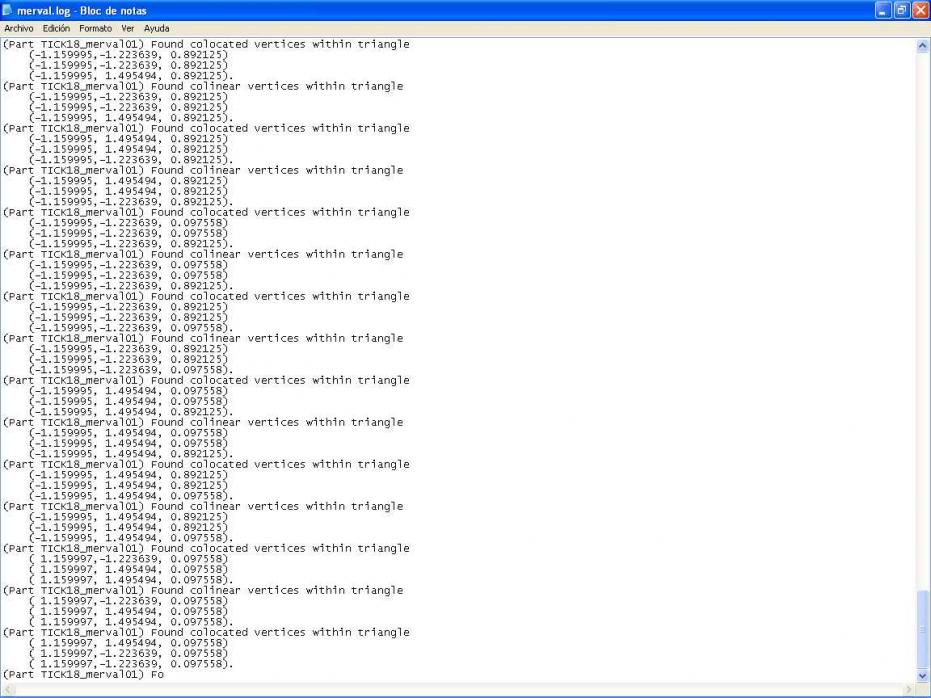

The last image (the log) only shows colocated vertices warnings, which won't stop compilation if you set MakeMDL to Ignore Errors.

There might be another part of the log with real errors?

Hi Juan,
I have checked your file, it seem to have problem at the first time I downloaded from you. The solution is; you need to go to reset X-from to your model BEFORE animate it. I did that and redo all the animation again and it works. Exporter has no compliant at all now. No other way to work around. Don't forget to do X-form reset before animation. You have to go to the last tab of gmax and look for Xform button then click reset.
Here is the file:
I'd like to see the screenshot when it done. Since I have no texture with the gmax. The trains look beautiful.
Regards,
Tic


Attachments

Bingo .........

No problem in the compilation. Perfect.

Thanks and best regards from Chile
