Collimated HUD

K

kowal5376

Messages
36
Hi all . :wave:
Somewhere in the fsdeveloper forum posts I found a way to make in the Gmax collimated HUD.
I tried to repeat the recipe in the blender, but unfortunately something's not working.
After exporting from Gmax everything it is ok, but after exporting Blender is not.

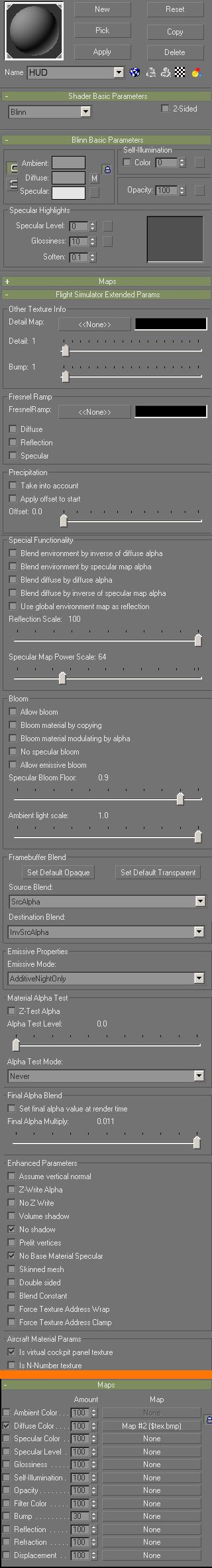

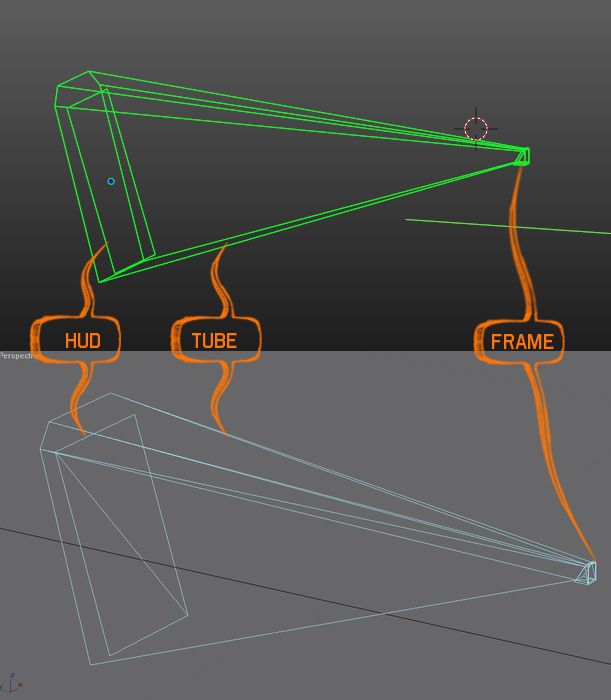

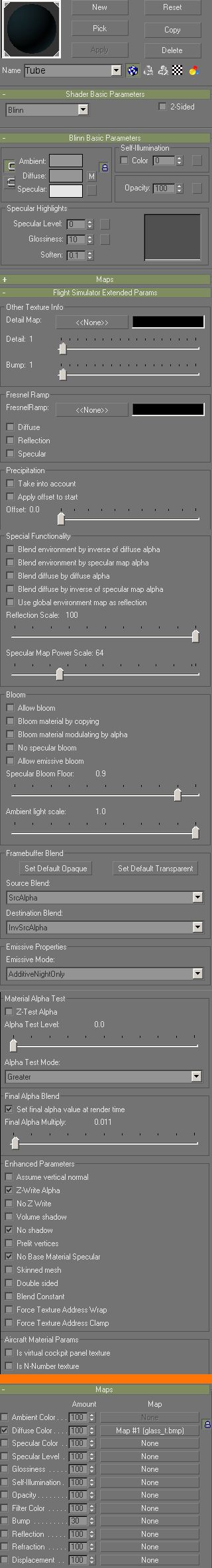

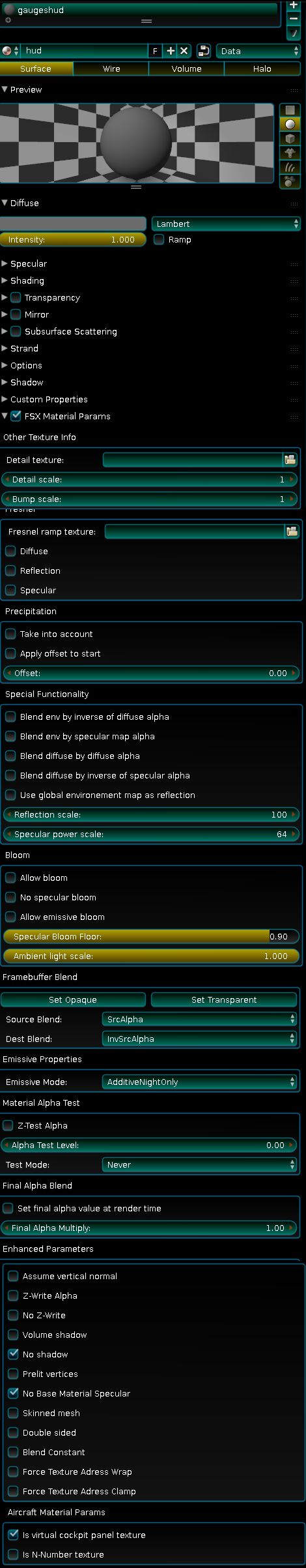

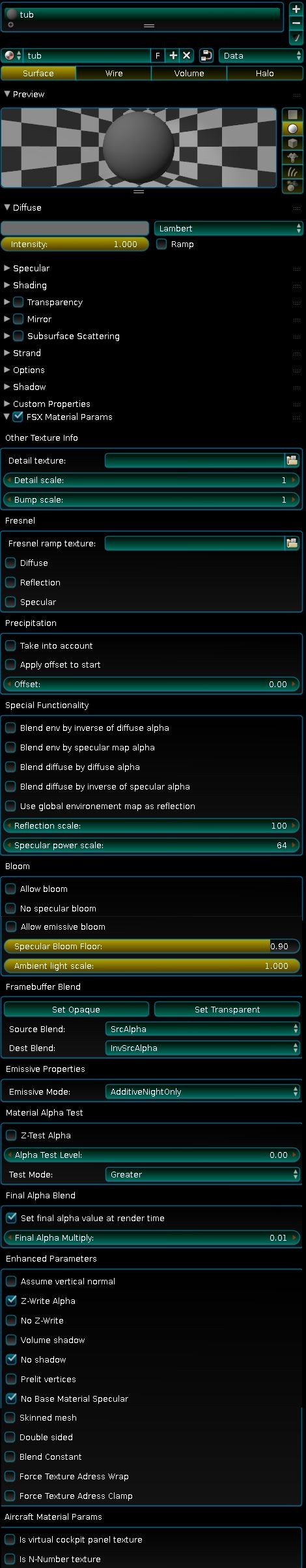

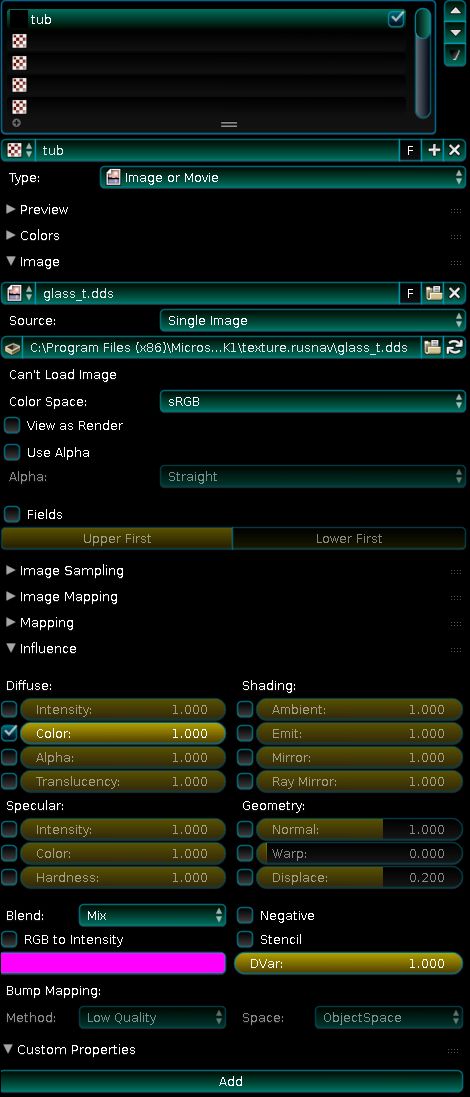

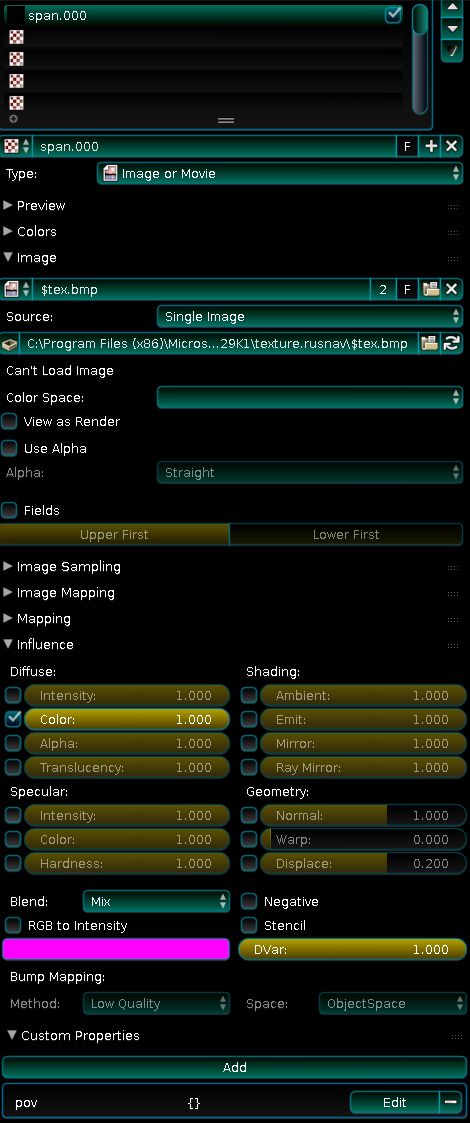

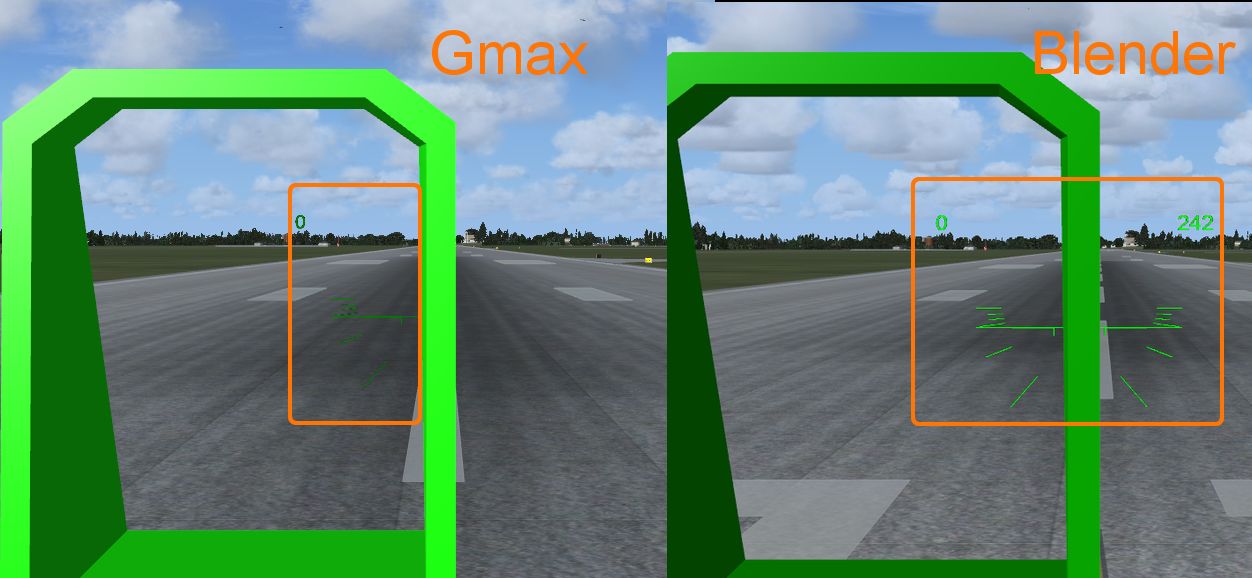

Below images with the settings Gmax and Blender, and what came out of Gmax, and what came out of Blender.
Do I set something wrong, or is it a problem Blender2FSX script.
I'm using Blender 2.74 and Blender2FSX 0703, I tried Blender2FSX 084, but when I exporting large files, program displays the error (in the 0703 I do not have such errors).
Thanks in advance for your help.
Rob.
3D.jpg blenderhud.jpg blenderhudtexture.jpg blendertube.jpg blendertubetexture.jpg gmaxhud.jpg gmaxtube.jpg In FSX.jpg

Hi.
Judging by the huge number of replies,my topic causes fascination of crowds ...;)
Because I started it,I should also end it.
So I solved the problem.
Collimated HUD works perfectly,I developed a simpler version than the G-Max, built on one texture $tex.bmp.
I will not elaborate on how it works, simply attach finished .blend file with the project and texture.

Best regards.
Rob.


Attachments

Nice to see you solved it.
You had my interest from the beginning but I simply had no idea myself.
