compile error with gp 4932

G

gww53

Messages
172
Country
us-newyork
I've been working on a project for a few weeks. All was well until I added a few more polys earlier today, and a line or two as well--I wish I could remember for sure which I last added.

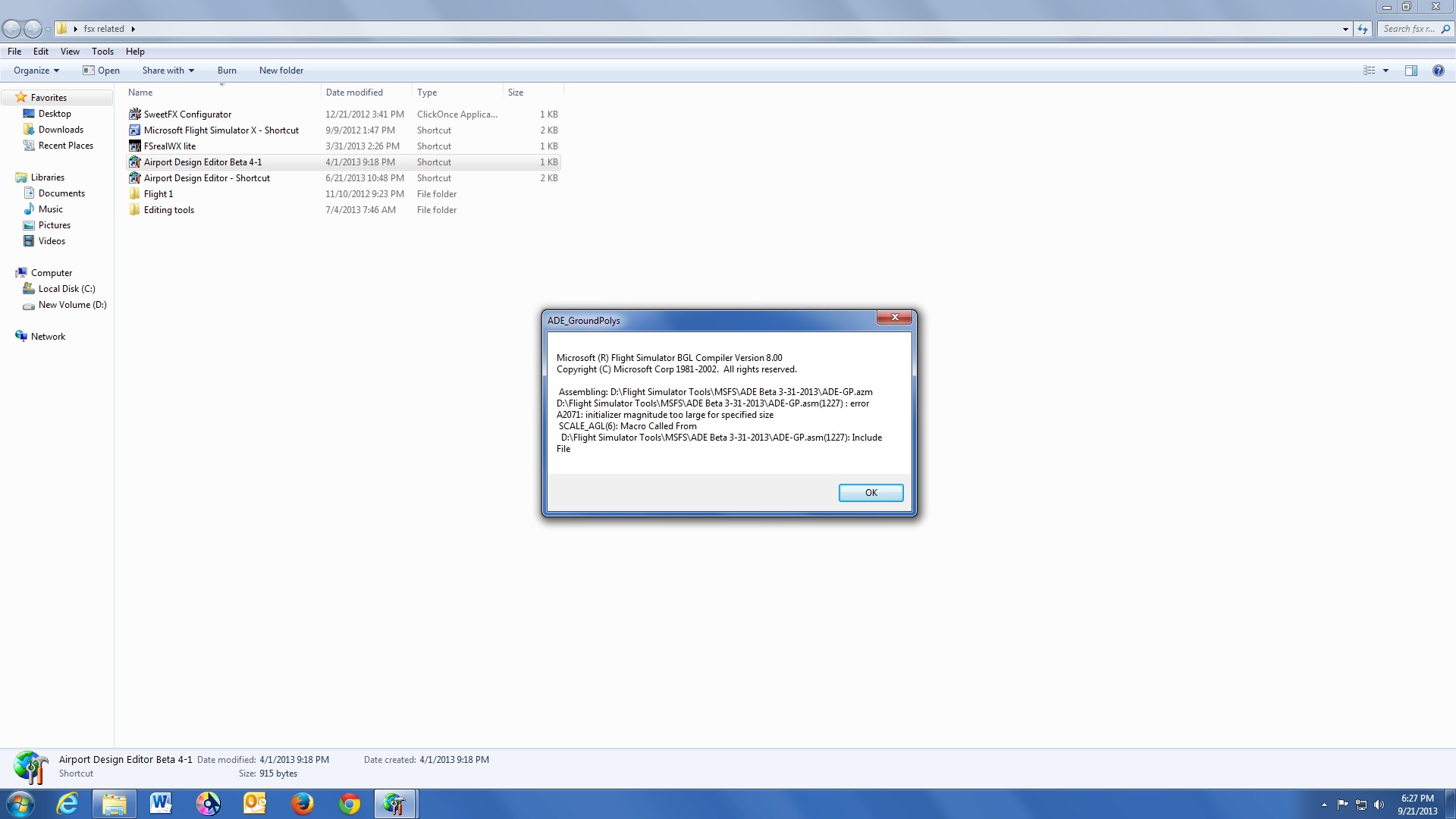

When I go to compile I get the error message attached. I click OK, and get a message that ADX compiled ok. But as you can (I hope) see on the side by side screen shot of fsx/adx, none of the ground polys, new or old, show (seems that all of the adx created aprons are ok, just the ground polys.

I've (tried) to attach the error message, the screen shot and the ADEX file

Thanks for any thoughts. I can't tell which GP is the problem, and will likely start deleting one at at time

Gary


Attachments

  • error message.jpg
    error message.jpg
    217.4 KB · Views: 469
  • fsx and adx views.jpg
    fsx and adx views.jpg
    603.8 KB · Views: 641
  • KTOL_ADEX_GWW.ad3
    KTOL_ADEX_GWW.ad3
    144.2 KB · Views: 372
Gary, which version of ADE are you using and, when you edit a ground po0ly object, what is the version number of ADE_GP displayed in the title bar?

Don

That was quick

ADE 01.60.4932.24718 (v01.60.4932 BETA)

GP editor 0.0.96(j)

I've been re-reading the manual. I've been trying to compile using default option (single point, ARP elevation, full visibility) and I have not even done a full flatten/exclude autogen etc, it appears--so perhaps??

Thanks so much for the quick look

Gary

Those are the latest.

It's not a problem you can do anything about. The generated .asm file contains an error. I'll get back to you.

Don

I've tried adding the flatten, excluding autogen and as many permutations of the compile menu as I can try, and all generate the same error.

I'll try to back out the polys tomorrow if I have a chance... but my daughter's dishwasher died and she has a new one "for me to install". 45 minutes....or all day!!

Thanks again, Gary

Gary, I misread your (j) for an (l). 0.0.96(l) is the latest. - but it shouldn't make any difference. You can get it from one of the recent posts in the thread entitled ADE_GP 0.0.96.

I've just compiled your file with (l) and, while a couple of polys won't triangulate (I'm working on such an issue now), I don't get any compiler errors.

Are you using the BGLC_9 compiler shipped with ADE?

Don

I updated to (l) and the file now compiles--with the triangulation error that you describe. The poly's are back in FSX, as they were this morning.

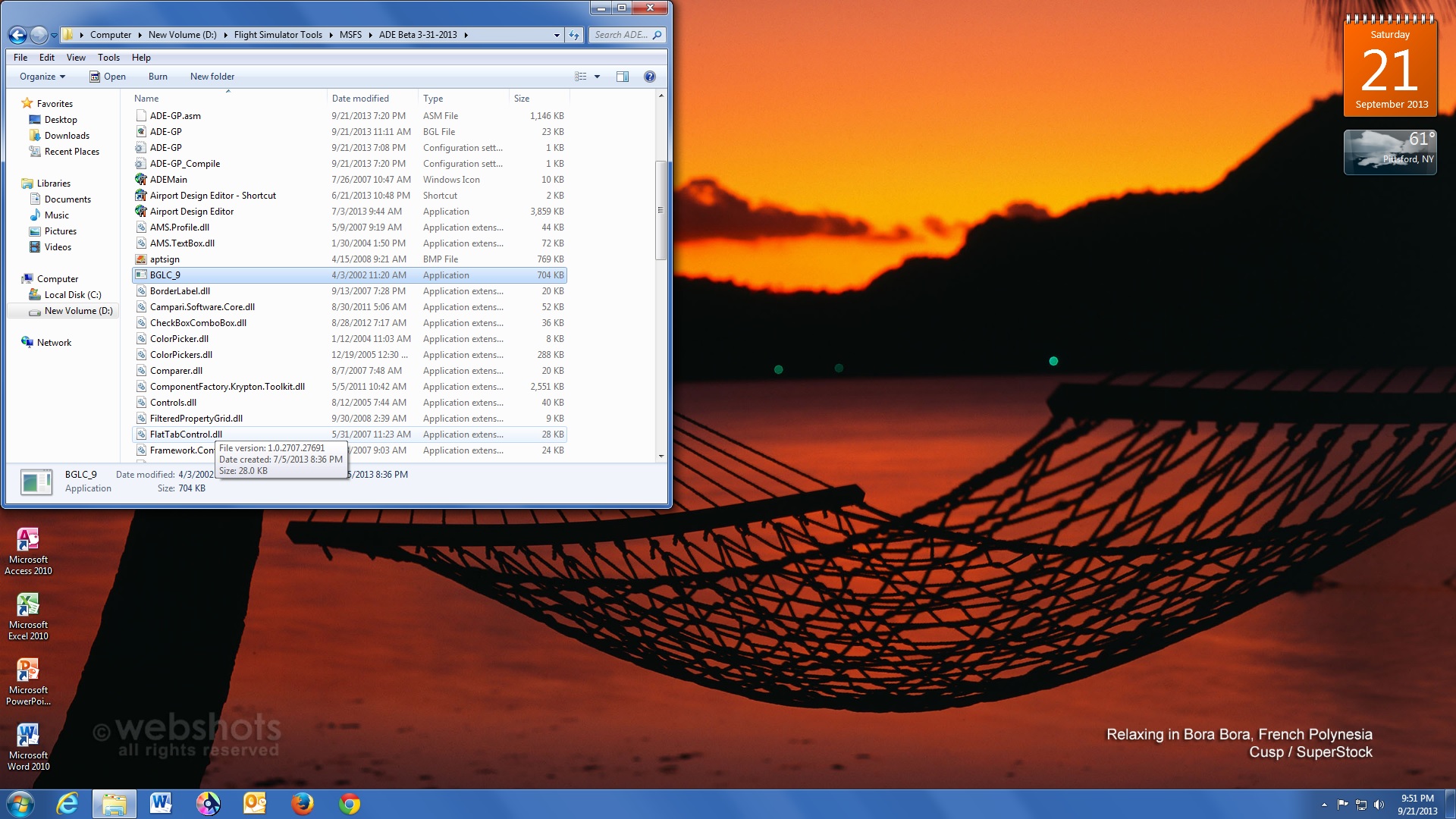

I'm pretty sure I use the "stock" BGLC_9 compiler--a copy of the directory attached.

It certainly looks as if the change from j to l addressed something I did wrong.

Thanks so much....again.

With the error message re: triangulation I can identify and change/delete those polys

Gary


Attachments

  • compiler.jpg
    501.1 KB · Views: 606
I suggest you don't change anything yet. I found a problem in (l) that causes the triangulation error message on very complex polys (e.g., large V-shapes that require partitioning). It may be what is causing your problem as well.

Also, during my own testing yesterday, I encountered a compiler error message similar to yours. I'm "chasing it" today.

Don

Gary, found it! It should fix both problems. And I also now know why the compile error didn't happen with(l).

I'll re-release ASAP.

Don

This version works perfectly on the project--no compile error, no triangulation message. Displays perfectly (alas, THAT is a bit of a problem with any of my work!!! )

As always, most appreciative and absolutely amazed at your talent and dedication!!


Thanks
Gary

Your welcome, Gary.

BTW, shortly after making that post, I realized how to avoid the triangulation error messages due to partitioning. So, if anyone still experiences those messages with 96(m), I should have a fix by tomorrow.

Don
