Decals for impurity.

GrafLaugenkotz

GrafLaugenkotz

Messages
7
Country
germany
Hello all,
I have a question about the best way to create and place decals on buildings in Blender. I want to apply impurities to break repetitive patterns in the basemesh texture.
What method do you guys use to apply decals to a basemesh texture on buildings?
My basic idea would be to put smaller meshes directly on the basemesh and then apply the impurities as decals.
I have tried this but to no avail.
When I put the decals directly on the basemesh, Blender does not render the surfaces correctly because they are directly on top of each other.
Should the meshes have a small distance between them?
How do you do that?
The second problem is that the transparency of the decals are not rendered correctly.
The alpha channel is not interpreted correctly when baking the decals....
I've been trying all sorts of ways for two weeks now, but can't really get it to work.
I use the addon pbr nexus for my pbr textures and simple bake for baking.

Warm regards...
Thomas

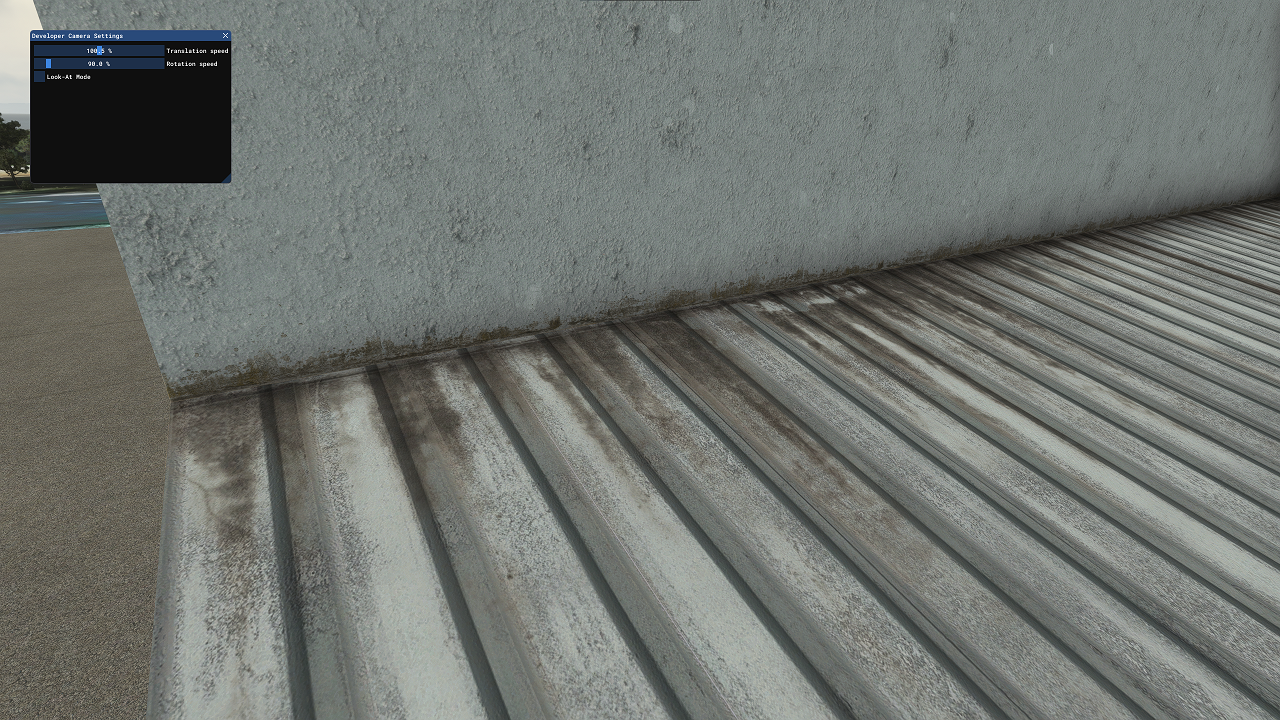

Hey Thomas! Check out the page on surface details in the how to make aircraft guide of the msfs sdk. You can also apply this technique to buildings. I have done so on some occasions working in blender just like you. The preview in Blender almost never matches what you're going to see in sim but it can get very close. However, decals are always going to cause z-fighting when viewed from afar. This problem is solved with the decal material in the simulator as you can see below:



The dirt in this picture is basically a part of a trim sheet with all kinds of dirt and grime textures. It is than applied to a mesh with a very slight offset to the main mesh. As you can see, the normals are similar to the mesh below it as the decal material simply transfers those if you want (just like roughness, metalness etc. if you desire). If you want I can send you an example file that is ready to export to the sim?

Good luck, hope this helps!

Hi FoxtrotScenery,
thank you very much for your quick reply to my problem.
My approach would be from my understanding, just as described by you. Only for some reason it doesn't work the way I think it should.
I would be very grateful if you could help me with an example. I will send you my email address by PM.

Do you use vanilla blender or do you use tools for PBR materials?

Best regards
Thomas
