MSFS20 Elevation / mesh problem

A

AlphaBravo

Messages
5
Hey guys,
i'm in the developement of a small general aviation airfield and mostly everything works as intended. But there is one thing that makes me wonder and I could not find a reason or solution for this by now. Each time after opening the project, right when loading the scene in the editor the ground of my airfield changes and my plane falls through the ground by approx. 20 feet. Also having the modded scenery in the packages directory makes my plane stand below aircraft by players with the standard scenery but the altitude indicator in both planes shows always the same altitude. Any guess what's wrong here?
Thanks!

@AlphaBravo unfortunately, I have the same problem. When I load the scene in the Editor, the ground elevation changes. That's very strange. I don't know what I did wrong that causes this kind of effect.

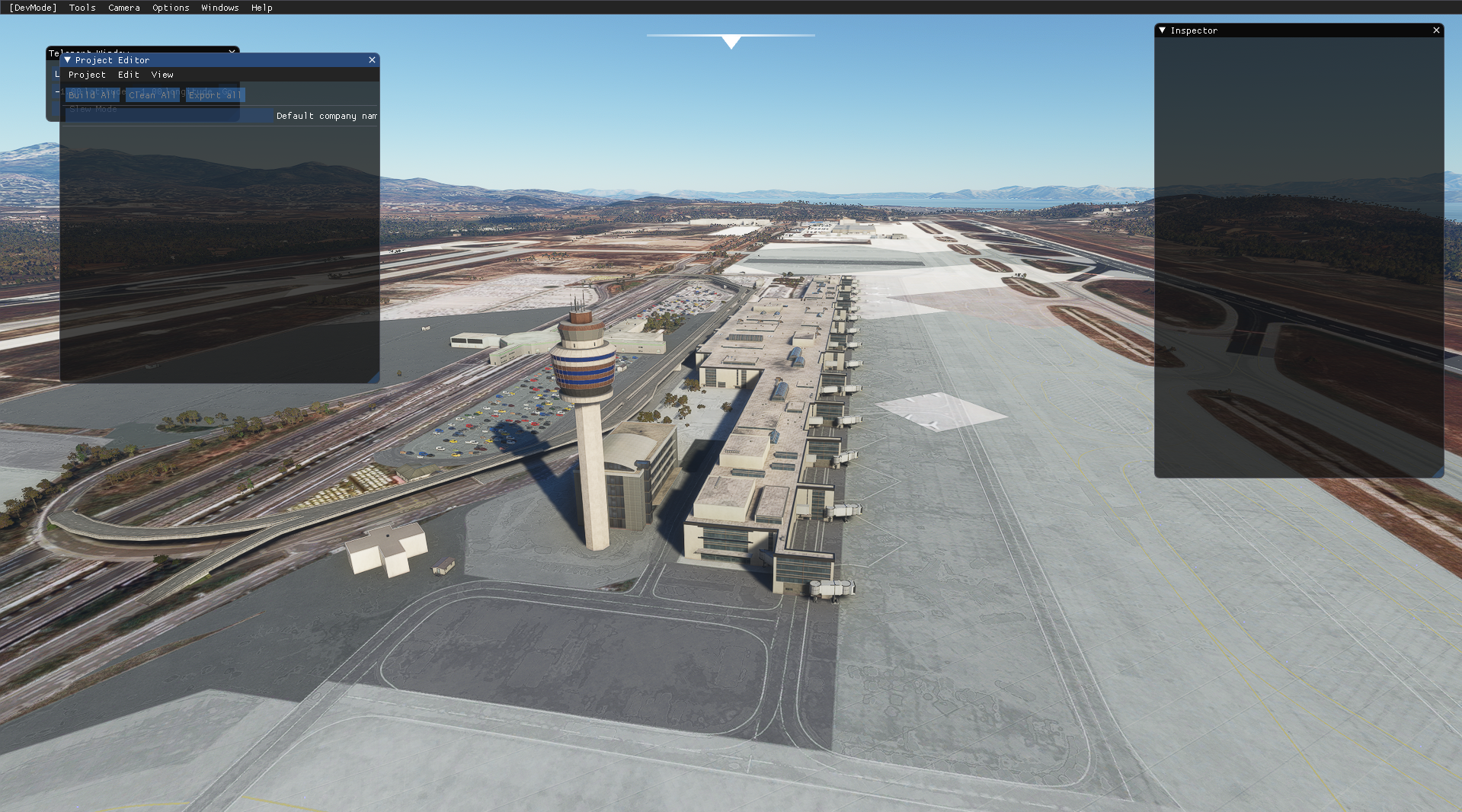

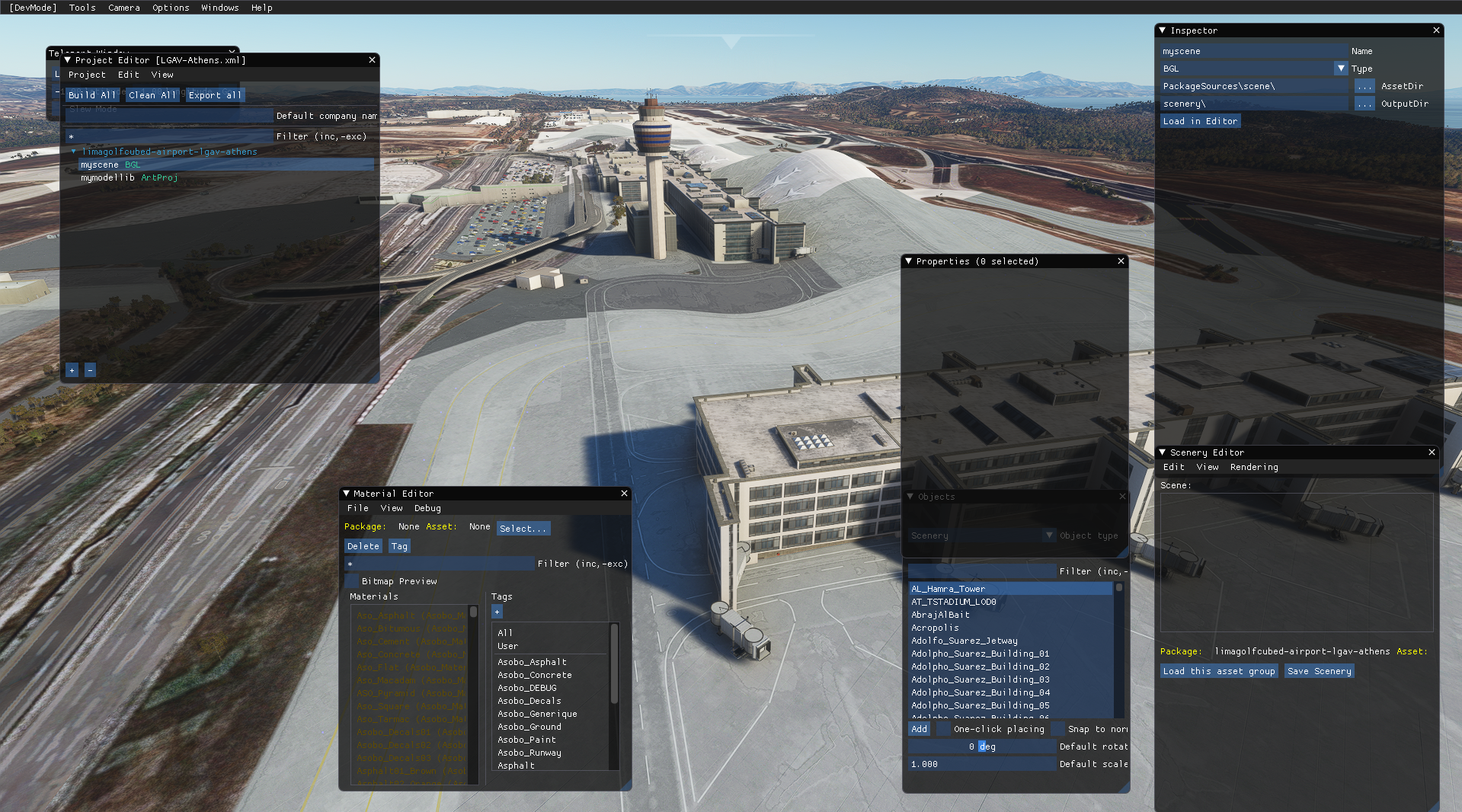

In the following images you can see the airport before I load the project (on the left) and after importing the scene in the Editor (on the right).

AlphaBravo said:
Hey guys,
i'm in the developement of a small general aviation airfield and mostly everything works as intended. But there is one thing that makes me wonder and I could not find a reason or solution for this by now. Each time after opening the project, right when loading the scene in the editor the ground of my airfield changes and my plane falls through the ground by approx. 20 feet. Also having the modded scenery in the packages directory makes my plane stand below aircraft by players with the standard scenery but the altitude indicator in both planes shows always the same altitude. Any guess what's wrong here?
Thanks!
Click to expand...

Hello:

When you state:

"the altitude indicator in both planes shows always the same altitude"

..do you mean both your aircraft and that of another MSFS multiplayer aircraft on the same ground surface displayed on a computer which does not have your scenery loaded ? :scratchch

GaryGB

limagolfcubed said:
@AlphaBravo unfortunately, I have the same problem. When I load the scene in the Editor, the ground elevation changes. That's very strange. I don't know what I did wrong that causes this kind of effect.
In the following images you can see the airport before I load the project (on the left) and after importing the scene in the Editor (on the right).
Click to expand...

Hello:

Perhaps your scenery contains an Exclusion Polygon that excludes a default Polygon that has Altitudes assigned to its vertices, and you have not replaced it with a new Polygon that has Altitudes assigned to its vertices ...to provide a new flatten ? :idea:


You may wish to review the YouTube video on MSFS-2020 'Terraforming' ...linked in this post:

https://www.fsdeveloper.com/forum/t...ttening-where-it-is-placed.449867/post-862270

GaryGB

Last edited:
@GaryGB thanks a lot for your reply! If there was such an Exclusion Polygon, would it be listed in the Scenery Editor or something? I get the same effect even if I load the SimpleScenery sample without any changes.

Hi again:

Here is some more informative discussion on terrain work-flow options to be considered:

www.fsdeveloper.com

MSFS20 - How to get runway to follow terrain?

Hi, How do I get the runway to follow the existing terrain? Apparently, I accidentally pulled the altitude of the runway, and I don't know what variables to choose to get the runway to drape over the terrain as is. I'm recreating a closed airport (69NH), so the terrain is already correct. I...
www.fsdeveloper.com www.fsdeveloper.com


Regarding your statement:

"I get the same effect even if I load the SimpleScenery sample without any changes."

...I cannot explain how any scenery content in the SDK "SimpleScenery" package could cause the terrain display anomaly.


I would recommend first searching for mis-placed scenery content in the Community folder chain which might have been overlooked.

If that does not reveal an explanation, exit MSFS and try deleting the rolling (not manual) cache file, then re-launch MSFS from Windows Desktop.

GaryGB

Thanks a lot for the recommendations! Since I didn't have either any sceneries in my Community folder or placed any polygons in my scenery while editing, I went directly to the rolling cache setting. I deleted it as you suggested and restarted MSFS. It works nicely now!

In my first encounter with the Editor, trying to create my scenery I accidentally added a rectangle with terraforming effect, which I immediately deleted. It seems that for some reason MSFS kept showing the terraforming every time I opened that scenery project after that incident even though there wasn't any rectangle anymore.

Thanks again!

GaryGB said:
I would recommend first searching for mis-placed scenery content in the Community folder chain which might have been overlooked.
If that does not reveal an explanation, exit MSFS and try deleting the rolling (not manual) cache file, then re-launch MSFS from Windows Desktop.
GaryGB
Click to expand...

Last edited:
