P3D v4 EnvironmentalDataProbe Error SODE V1.7.1

H

hammer56

Messages
16
Hello everyone,
I have a problem with SODE v1.7.1

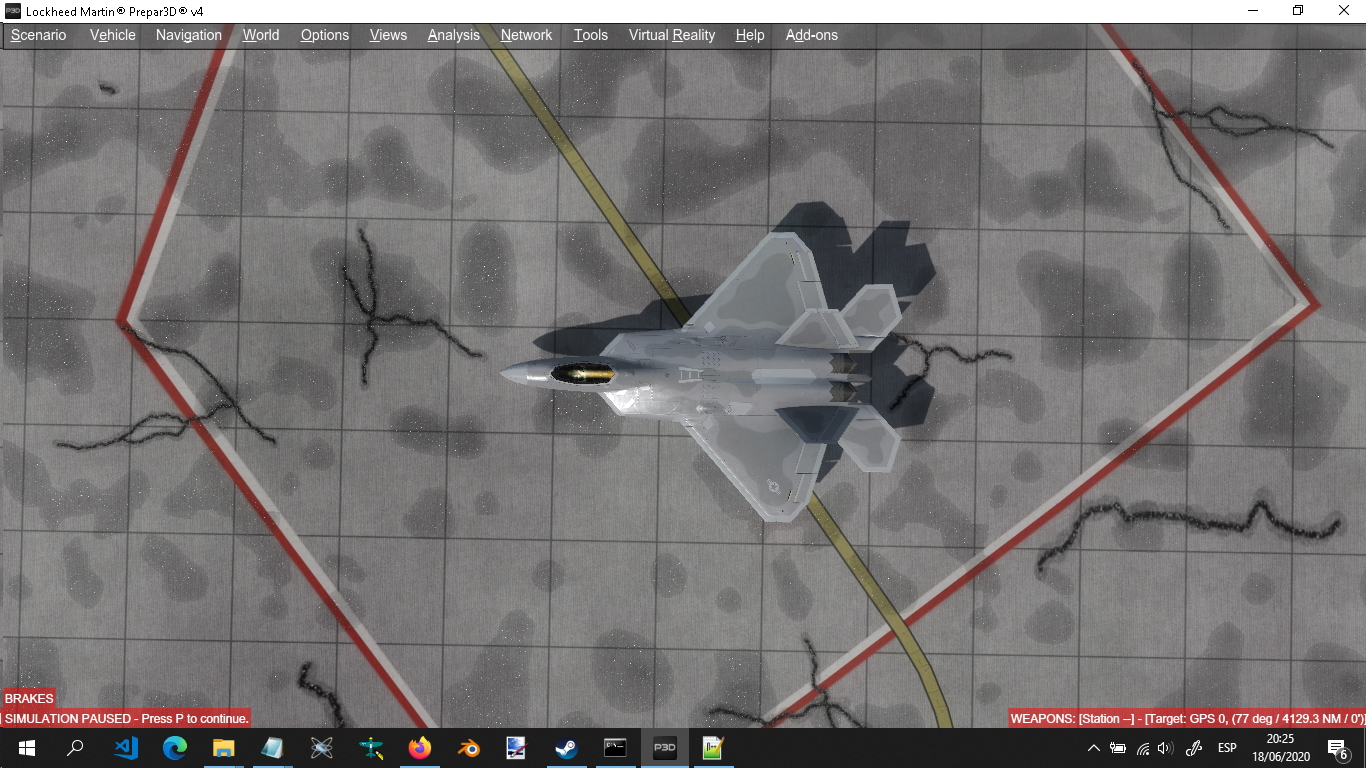

the visibility condition does not work for me, I have an mdl file that contains puddles, these puddles should be shown when the weather is rainy, but this is also shown when it does not rain,

this did not happen to me in old versions of sode

sorry for my level of english i use google traslator




Code:
<SODE>
    <SimObject Name="EDP SPTU">
        <Placement Lat="-12.613601" Lon="-69.228673" Alt="0#AGL" Hdg="00.0"/>
        <Model SimTitle="12bPilot_SODE_Environmental_Data_Probe">
            <EnvironmentalDataProbe ClientList="SPTU_groundPoly_wet;"/>
        </Model>
    </SimObject>

    <SimObject Name="SPTU_groundPoly_wet">
        <Placement Lat="-12.613601" Lon="-69.228673" Alt="0.0#AGL" Hdg="2.099900"/>
        <Model SimTitle="runwaywet">
            <ConditionalVisibility Variable="MetPrecipitation" Value="RAIN"/>
        </Model>
    </SimObject>

</SODE>

You must enter AGL="the altitude of the airport" without # at the data probe elevation.
This is the airport altitude in MSL.

For SPTU the entry in the data probe elevation would be AGL="659"...
