Exclude_all_terrain_items failed

[agarzon]

I draw a polygon, and set "Exclude_All_Terrain_Items", compile and that happen:

How I can remove land like a polygon?



[meshman]

It's doing what you told it to do, exclude all terrain items. Water within FSX is a terrain item, as the entire FSX world is really land with water polygons added in. Unless you have a particular reason for using the Exclude_All_Terrain tag, you can accomplish much the same effect using different exclusionary polygons.



[agarzon]

ok thanks,

So.. how I can remove all default "land", and let there the water and my phototerrain (see picture) ?



[meshman]

I think it's important to remember that in the FSX world everything is land and that water is added into the equation. At this point, going by the picture posted, you need to re-introduce what you want the water to be by making a new water polygon to match your photo area. Very tedious work, speaking from experience. And... shorelines and wave effects are seperate items within the scenery makeup, they don't just appear because there is a water polygon with the Ocean water Tag.



[agarzon]

So what I need do?

Remake BGL to substitute originals default land and water?

Or is possible draw (move) water inside land?

Shorelines and waves effects, not problem "by now".



[pierrot1951]

Hello

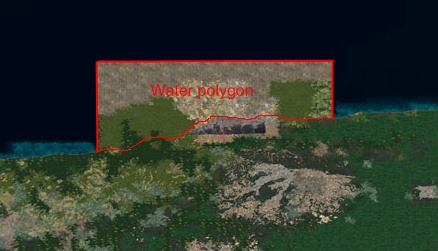

On your right picture you need to erase the green/ brown rectangle corresponding to QMID grid. "Delete all items" automatically replaced the whole QMID box with "land".
1/ You have to create a polygon following the left vertical side, the horizontal upper side, the right vertical side, and then the bottom line following the coastline (even if not very precise, your lines may overlap the neighbouring blue areas).
2/ Then tag with : Generic Ocean Perennial for instance to rebuild the "blue" part.
3/ After, you can create a new shoreline, rivers, roads, ....

*** Once you draw the poly, you can get the shoreline without drawing line again: select poly / right click: make line; you have a closed line in place of poly; then just delete useless 3 straight sides, and apply tag, width, waves....
Pierrot - FMEP



[agarzon]

Hello

On your right picture you need to erase the green/ brown rectangle corresponding to QMID grid. "Delete all items" automatically replaced the whole QMID box with "land".
1/ You have to create a polygon following the left vertical side, the horizontal upper side, the right vertical side, and then the bottom line following the coastline (even if not very precise, your lines may overlap the neighbouring blue areas).
2/ Then tag with : Generic Ocean Perennial for instance to rebuild the "blue" part.
3/ After, you can create a new shoreline, rivers, roads, ....

*** Once you draw the poly, you can get the shoreline without drawing line again: select poly / right click: make line; you have a closed line in place of poly; then just delete useless 3 straight sides, and apply tag, width, waves....
Pierrot - FMEP

Excellent help!

I already solve the problem using other technicals, but really interesting your idea. I will considerer in another project.

Thanks.
