EXPORTING problem in Gmax
- Thread starter wael
- Start date

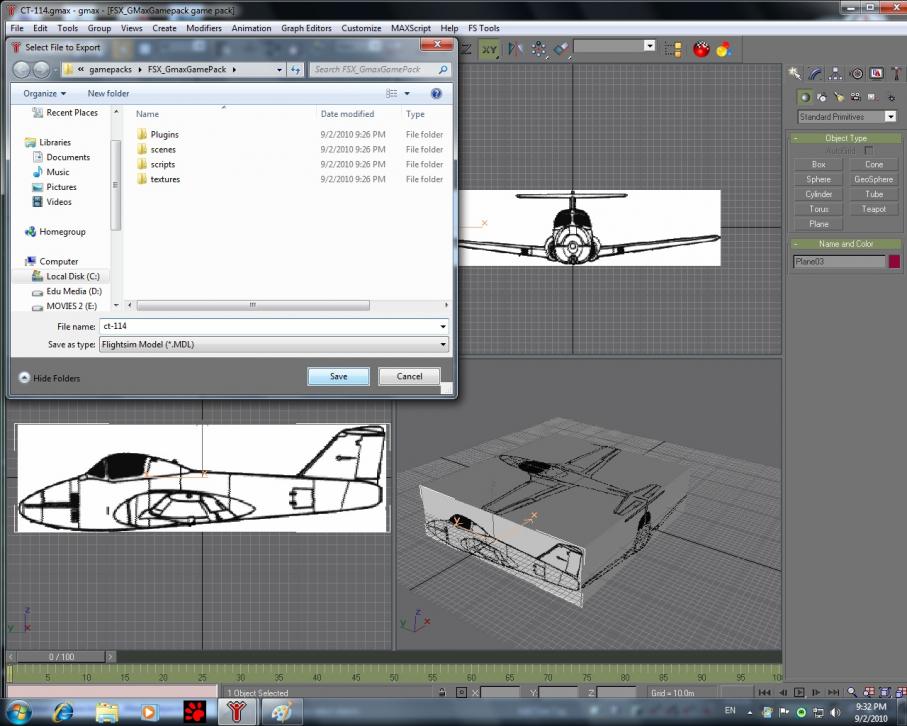

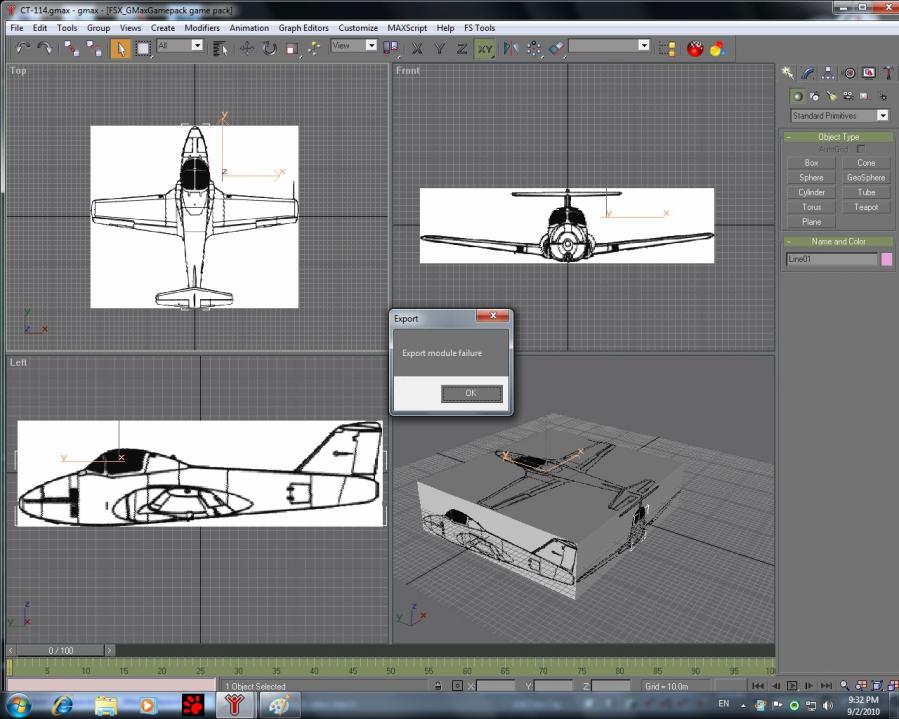

thanks for your reply but still there are some problems first i searched te whole world for fsk gamepack until i found this manual installation which i think it doesnt work.anyway here are the errors that came to me while trying to export (this is only an example i made )
Attachments
hairyspin
Resource contributor
- Messages
- 3,253
- Country
Look the Wiki for the article on installing the SDK.
http://www.fsdeveloper.com/wiki/index.php?title=Category:Tools
When that's properly done, read the SDK for how to install the FSX Gamepack into gmax and how to run it - see Using Modelling Tools
It's pretty simple, but nothing will run properly unless done by the book.
http://www.fsdeveloper.com/wiki/index.php?title=Category:Tools
When that's properly done, read the SDK for how to install the FSX Gamepack into gmax and how to run it - see Using Modelling Tools
It's pretty simple, but nothing will run properly unless done by the book.
ok thanks all for what you told me it was all pretty good .
and i know my mistake now.
but i used to make the canopy in 3d max like this tutorial
http://www.youtube.com/watch?v=hoGQPJTfTEE&feature=related
but now i cant make this in gmax because exporting there means only to fsx game so does anyone know how to make this now. thanks for your help.
and i know my mistake now.
but i used to make the canopy in 3d max like this tutorial
http://www.youtube.com/watch?v=hoGQPJTfTEE&feature=related
but now i cant make this in gmax because exporting there means only to fsx game so does anyone know how to make this now. thanks for your help.
no this is only one part of the whole tutorial the rest you can watch at youtube and i dont think it is bad, i didnt learn 3ds max but im making my own planes now from this tutorial but this version is not good because of the voice is not moving with the picture you should look for a better one in youtube they are very good........
- Messages
- 10,158
- Country
Hey Wael,
He does give you a glimpse of how it is all done. If you continuously halt/pause the YouTube movie, you can see what buttons he is pushing to get where he is going. Making notes as he does this, pausing alot, will show you much of how he does this.
One odd thing he is doing in this tutorial is exporting his canopy and then the fuselage to a custom 'own' folder, then importing it back again with 'merge' (sort of like import procedure). I havent heard of that and it seemed redunent to me.
Instead, what he could do is 'Edit/Clone' the fuselage and name it Canopy. Then Edit/Clone again and name that one Fuselage, then rename the older fuselage 'original Fuselage.' Next, I would cut the 'canopy' from the 'canopy' fuselage, and the fuselage from the new fuselage part using Boolean.
BUT!!!!!!!!!!! In my years of doing these things, I found that Boolean creates a zillion little 'extra' Vertices... If I use a template 'line' and I cut the edge manually using Editable Poly mode; Edge/Create and Edge/Divide, and delete unwanted edges, and add in Vertices into the middle of Polygons (for curves) using Editable Mesh mode and 'Polygon/Divide' (to add Vertices), then back to Editable Poly mode; 'Edge/Delete' and Edge/Create to form the new lines (curves, etc), I then can create a new cut line for a nice canopy, precisely, without dealing with the unstability factors of Boolean, and 'no' (none whatsoever) extra Vertices...
To quote the old Alka Seltzer commercial; 'Try it, you'll like it....'
He does give you a glimpse of how it is all done. If you continuously halt/pause the YouTube movie, you can see what buttons he is pushing to get where he is going. Making notes as he does this, pausing alot, will show you much of how he does this.
One odd thing he is doing in this tutorial is exporting his canopy and then the fuselage to a custom 'own' folder, then importing it back again with 'merge' (sort of like import procedure). I havent heard of that and it seemed redunent to me.
Instead, what he could do is 'Edit/Clone' the fuselage and name it Canopy. Then Edit/Clone again and name that one Fuselage, then rename the older fuselage 'original Fuselage.' Next, I would cut the 'canopy' from the 'canopy' fuselage, and the fuselage from the new fuselage part using Boolean.
BUT!!!!!!!!!!! In my years of doing these things, I found that Boolean creates a zillion little 'extra' Vertices... If I use a template 'line' and I cut the edge manually using Editable Poly mode; Edge/Create and Edge/Divide, and delete unwanted edges, and add in Vertices into the middle of Polygons (for curves) using Editable Mesh mode and 'Polygon/Divide' (to add Vertices), then back to Editable Poly mode; 'Edge/Delete' and Edge/Create to form the new lines (curves, etc), I then can create a new cut line for a nice canopy, precisely, without dealing with the unstability factors of Boolean, and 'no' (none whatsoever) extra Vertices...
To quote the old Alka Seltzer commercial; 'Try it, you'll like it....'
