FS2004 aircraft mdl export
- Thread starter arno
- Start date
- Messages
- 70
- Country

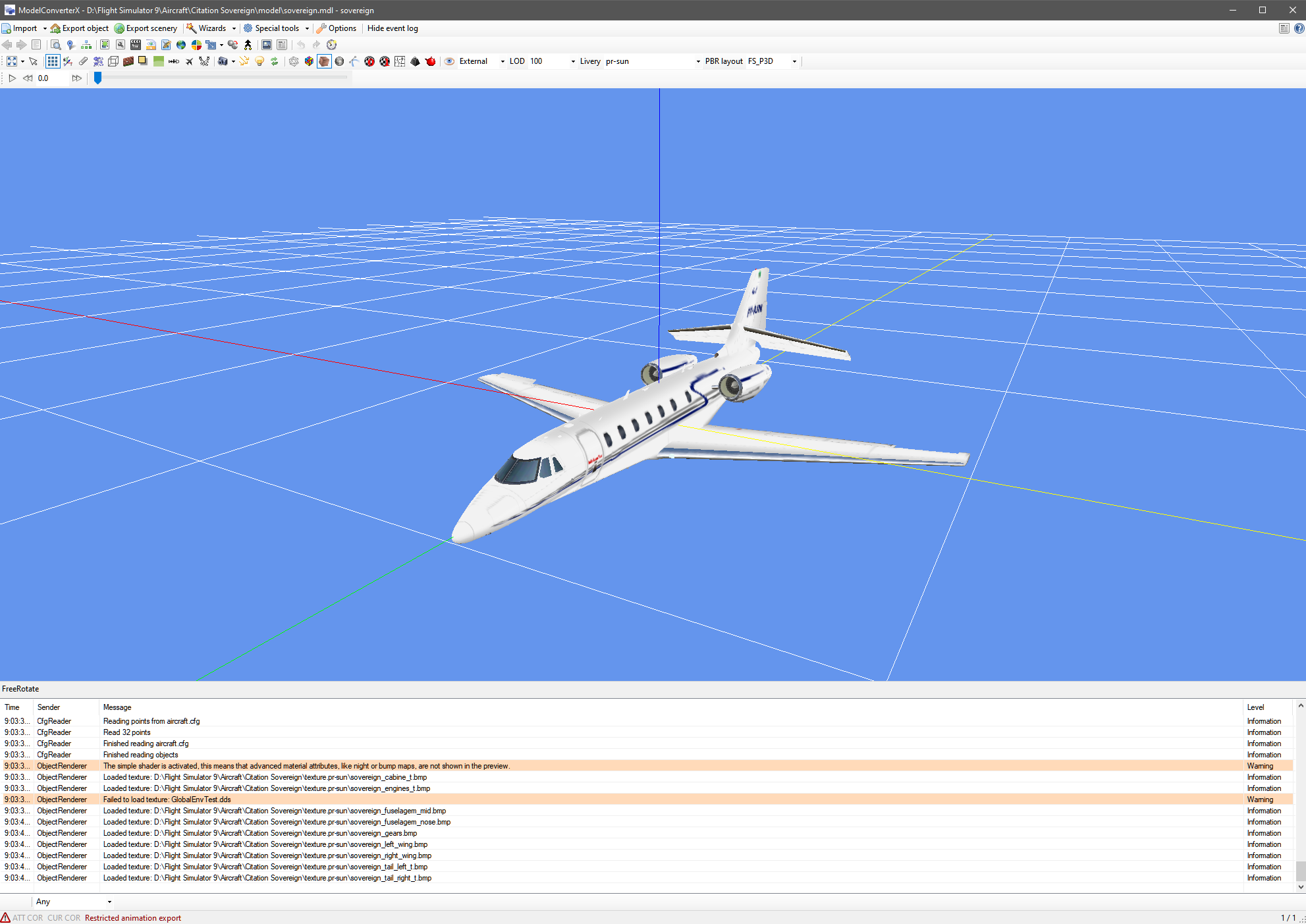

Is anyone else having issues with the latest dev version of MCX incorrectly portraying rudder animations? The rudder appears to be rotating about the Y axis instead of the Z axis as it should. Pic attached I have tried it in a few models and seen this issue...
FS2004 - Animation Display of Rudder is on wrong Axis
Hi Arno, probably an old issue: Rudder works correkt in FS9 for Project Airbus A320. Same in MCX 130, MCX 140, MCX 160, last dev. version.
www.fsdeveloper.com
- Messages
- 70
- Country
I assume I am I just downloaded it today.
Mike Stone's Beech Queen Air 65 does this. Can be found on simviation in the fs2004 section. This can be corrected by changing the animation from the y axis to the z axis and changing the angles in the hiearchy editor (you probably know this already). Works well after changes and they remain in future imports and exports.
- Messages
- 70
- Country
It says I am using 1.7.0.8909683 from 6/1/24 I am attaching a couple of models that have this issue; downloaded from flightsim.cz
Also another issue I noticed is some models when I load them are transparent in places they shouldn't be but also prop discs come up as opaque... While the fix for the fuselage is relatively easy the props seem to be a bit more of a pain in that even after setting them to transparent they still look like solid discs...
Also another issue I noticed is some models when I load them are transparent in places they shouldn't be but also prop discs come up as opaque... While the fix for the fuselage is relatively easy the props seem to be a bit more of a pain in that even after setting them to transparent they still look like solid discs...
- Messages
- 33,388
- Country
Hi,
The rudder issue seems related to a change I made recently to fix the rudder on another model. If you open the animation_mapping.ini file and then remove the line with rudder from FS2004_AXIS_CHANGE section the rudder will import as before again.
I will make sure in the next release this line is removed by default.
The rudder issue seems related to a change I made recently to fix the rudder on another model. If you open the animation_mapping.ini file and then remove the line with rudder from FS2004_AXIS_CHANGE section the rudder will import as before again.
Code:
[FS2004_AXIS_CHANGE]
rudder 0,-1,0I will make sure in the next release this line is removed by default.
