FSX:SE Gauges

Flyer50

Flyer50

Messages
40
Country
us-texas
I want to add a bobblehead to my plane. I made a gauge for it and put it in the panel an it doesn't work. Check It out

// This Panel.cfg file created by FS Panel Studio panel editor utility - http://www.fspanelstudio.com
// Built Tuesday, October 06, 2009 at 22:09 FSPS Build:20204

[Window Titles]
Window00=Main Panel
Window01=Radio Panel
Window02=GPS
Window03=Throttle Quadrant
Window04=Overhead
Window05=Standy Compass
Window06=FMS Panel
window07=GroundhandlingV6
Window08=Full PFD
Window09=Full MFD
Window10=Full EICAS Primary
Window11=Full Eicas Systems
Window12=Lighting Panel
Window13=Frenchie Bobblehead



[VIEWS]
VIEW_FORWARD_ZOOM=0.700
VIEW_FORWARD_DIR=1.000, 0.000, 0.000



//--------------------------------------------------------
[Window00]
size_mm=1680,1050
position=0
visible=1
ident=MAIN_PANEL
window_size= 1.000, 1.000
window_pos= 0.000, 0.000
no_luminous=1
view_window_rect=0,0,8192,3700

gauge00=XRS_Panel!autopilot_v2, 870,448,815,120
gauge01=XRS_Primus!pfd_control_panel, 545,448,320,120
gauge02=XRS_Chrono_Clock!XRS_Chrono_Clock, 24,672,140,145
gauge03=XRS_Primus!Primus_PFD_v2, 245,614,300,400
gauge04=XRS_Primus!Primus_MFD_v3, 560,614,300,400
gauge05=XRS_Primus!eicas_primary_v2, 876,614,300,400
gauge06=XRS_Primus!eicas_secondary_systems_v2, 1380,614,300,400
gauge07=XRS_Panel!MCWP_w-HUD_LH, 265,448,275,120 //for panel with HUD future addon??
gauge08=XRS_Panel!XRS_stby_Att_AS_Alt, 1194,614,170,170
gauge09=New_Icons!ECU Icon, 222,530,19,19
gauge10=New_Icons!Overhead Icon, 222,550,19,19
gauge11=New_Icons!Kneeboard Icon, 202,550,19,19
gauge12=New_Icons!ATC Icon, 202,530,19,19
gauge13=New_Icons!Map Icon, 182,530,19,19
gauge14=New_Icons!GPS Icon, 182, 550 ,19,19
gauge15=New_Icons!Radio Icon, 222,510,19,19
gauge16=New_Icons!Other Controls Icon, 202,510,19,19
gauge17=n_number_plaque!n_number_plaque, 92,530,65,20
gauge19=New_Icons!LTG_icon, 182,510,20,20


//--------------------------------------------------------
[Window01]
Background_color=128,128,128
size_mm=225,675
position=6
visible=0
ident=RADIO_STACK_PANEL
zorder=5

gauge00=XRS_Panel!XRS_RMU, 0,0,225,300
gauge01=XRS_Panel!XRS_Audio_Panel, 0,300,225,175
gauge02=XRS_Primus!MFD_control_panel, 0,475,225,100
gauge03=XRS_Primus!eicas_control, 0,575,225,100


//--------------------------------------------------------
[Window02]
Background_color=0,0,0
size_mm=456,420
window_size_ratio=1.000
position=8
visible=0
ident=GPS_PANEL
window_size= 0.360, 0.442
window_pos= 0.650, 0.560

gauge00=fs9gps!gps_500, 0,0,456,420


//--------------------------------------------------------
[Window03]
Background_color=0,0,0
size_mm=450,778
position=0
visible=0
ident=THROTTLE_PANEL

gauge00=XRS_Panel!AB_splr_Eng_EPR_control, 0,0,225,185
gauge01=XRS_Panel!Throttle_Spoiler_control, 0,185,225,359
gauge02=XRS_Panel!Slat_flap_park_brake_control, 0,544,225,234
gauge03=XRS_Panel!EGPWS_control, 225,0,225,141
gauge04=XRS_Panel!LG_control, 225,141,225,227
gauge05=XRS_Panel!Trim_panel, 225,367,225,140


//--------------------------------------------------------
[Window04]
Background_color=0,0,0
size_mm=900,791
position=1
visible=0
ident=OVERHEAD_PANEL
window_size= 0.536, 1.004
window_pos= 0.360, 0.000

gauge00=XRS_EngineFire_Panel!EngineFire_Panel, 225,0,450,175
gauge01=XRS_Panel!air-cond_anti-ice_panel, 450,175,225,616
gauge02=XRS_Panel!Hydraulic_panel, 0,435,225,149
gauge03=XRS_Panel!Engine-APU_panel, 225,597,225,194
gauge04=XRS_Panel!Fuel_panel, 225,378,225,220
gauge05=XRS_Panel!WS-Heat_Ext_Lts_NS-FSB_panel, 675,492,225,299
gauge06=XRS_Panel!Pressurization_panel, 675,354,225,138
gauge07=XRS_Panel!Electrical_panel, 0,584,225,207
gauge08=XRS_Panel!ELT_panel, 0,346,225,89
gauge09=XRS_Panel!Aural_warning_panel, 225,290,225,89
gauge10=XRS_Panel!Blank_filler_panel, 225,175,225,115


//--------------------------------------------------------
[Window05]
Background_color=0,0,0
size_mm=200,260
visible=0
ident=MISC_POPUP_1
window_pos= 0.770, 0.000

gauge00=XRS_Panel!Stby_Compass, 0,0,200,260


//--------------------------------------------------------
[Window06]
Background_color=0,0,0 //16,16,16
size_mm=325,512
window_size_ratio=1.000
position=8
visible=0
ident=10001
window_size= 0.255, 0.475
window_pos= 0.745, 0.520

gauge00=FMC1!FMC, 0,0,325,512


//--------------------------------------------------------
[Window07]
size_mm=204,65
visible=1
window_size= 0.20,0.09
window_pos= 0.0,0.05
background_color=16,16,16
type=SPECIAL
gauge00=RCB_Groundhandling6!PushbackDisplay, 2,2,74,61
//gauge01=RCB_Groundhandling6!PushbackStatesStandard, 0,0 //Using embedded FSX/P3D Pushback feature
gauge01=RCB_Groundhandling6!PushbackStatesFreeControl, 0,0 //Using Pushback alternative
gauge02=RCB_Groundhandling6!Taxispeed, 79,2,64,61
gauge03=RCB_Groundhandling6/AVM32!Maryadi_lv2av, 0, 0 //For FSX and P3Dv2,3
//gauge03=RCB_Groundhandling6/AVM64!Maryadi_lv2av, 0, 0 //For P3Dv4
gauge04=RCB_Groundhandling6!Brakes, 146,2,56,61
gauge05=RCB_Groundhandling6/XMLSound32!Sound, 0,0,0,0, ./Gauges/RCB_Groundhandling6/XMLSound.ini //For FSX and P3Dv2,3
//gauge05=RCB_Groundhandling6/XMLSound64!Sound, 0,0,0,0, ./Gauges/RCB_Groundhandling6/XMLSound.ini //For P3Dv4
gauge06=RCB_Groundhandling6!NoseWheelRadius, 0,0 //Establishes the NoseWheelRadius of the aircraft

//--------------------------------------------------------
[Window08]
Background_color=0,0,0
size_mm=400,640
window_size_ratio=1.000
position=6
visible=0
ident=10003
window_size= 0.238, 0.508
window_pos= 0.030, 0.572

gauge00=XRS_Primus!Primus_PFD_v2, 0,0,400,640


//--------------------------------------------------------
[Window09]
Background_color=0,0,0
size_mm=400,640
window_size_ratio=1.000
position=7
visible=0
ident=10004
window_size= 0.238, 0.508
window_pos= 0.266, 0.572

gauge00=XRS_Primus!Primus_MFD_v3, 0,0,400,640


//--------------------------------------------------------
[Window10]
Background_color=0,0,0
size_mm=400,640
window_size_ratio=1.000
position=7
visible=0
ident=10005
window_size= 0.238, 0.508
window_pos= 0.504, 0.572

gauge00=XRS_Primus!eicas_primary_v2, 0,0,400,640


//--------------------------------------------------------
[Window11]
Background_color=0,0,0
size_mm=400,640
window_size_ratio=1.000
position=8
visible=0
ident=10006
window_size= 0.238, 0.508
window_pos= 0.742, 0.572

gauge00=XRS_Primus!eicas_secondary_systems_v2, 0,0,400,640


//--------------------------------------------------------
[Window12]
Background_color=0,0,0
size_mm=250,690
window_size_ratio=1.000
position=0
visible=0
ident=10007
window_size= 0.149, 0.548
window_pos= 0.860, 0.000

gauge00=XRS_Panel!Cockpit_Lights_Panel1, 0,0,250,220
gauge01=XRS_Panel!Cockpit_Lights_Panel2, 0,220,250,170
gauge02=XRS_Digital_Clock!XRS_Digital_Clock, 0,389,250,300


//--------------------------------------------------------
[Window13]
size_mm=256,256
window_size=0.20
position=0
visible=1
ident=10014
zorder=99
gauge00=FrenchieBobblehead!FrenchieBobblehead, 0,0,256,256
//--------------------------------------------------------
[Vcockpit01]
Background_color=0,0,0
size_mm=1024,1024
visible=1
pixel_size=1024,1024
texture=$VC_01

gauge00=XRS_Primus!Primus_PFD_v2, 0,0,497,658
gauge01=XRS_Primus!Primus_MFD_v3, 512,0,497,658
gauge02=XRS_Panel!autopilot_v2, 0,685,1024,159
gauge03=XRS_Primus!pfd_control_panel, 0,845,416,154
gauge04=XRS_Panel!MCWP_w-HUD_LH, 416,845,366,154
gauge05=XRS_Primus!pfd_control_panel, 0,845,416,154
gauge06=FrenchieBobblehead!FrenchieBobblehead, 500,120,150,150


//--------------------------------------------------------
[Vcockpit02]
Background_color=0,0,0
size_mm=1024,1024
visible=1
pixel_size=1024,1024
texture=$VC_02

gauge00=XRS_Primus!eicas_primary_v2, 0,0,497,658
gauge01=XRS_Primus!eicas_secondary_systems_v2, 512,0,497,658
gauge02=XRS_Panel!XRS_stby_Att_AS_Alt, 416,685,240,238
gauge03=XRS_Panel!Master_caution_warning_panel_RH, 0,685,314,154


//--------------------------------------------------------
[Vcockpit03]
Background_color=0,0,0
size_mm=1024,1024
visible=1
pixel_size=1024,1024
texture=$VC_03

gauge00=XRS_Primus!Primus_MFD_v3, 0,0,497,658
gauge01=XRS_Primus!Primus_PFD_v2, 512,0,497,658
gauge02=XRS_Panel!Trim_panel, 0,684,414,234
gauge03=XRS_Digital_Clock!XRS_Digital_Clock, 414,684,251,257


//--------------------------------------------------------
[Vcockpit04]
Background_color=0,0,0
size_mm=1024,1024
visible=1
pixel_size=1024,1024
texture=$VC_04

gauge00=XRS_Panel!XRS_RMU, 0,0,414,514
gauge01=XRS_Panel!XRS_Audio_Panel, 610,0,414,223
gauge02=XRS_Primus!MFD_control_panel, 610,223,414,149
gauge03=XRS_Primus!eicas_control, 610,372,414,147
gauge04=XRS_Panel!Cockpit_lights_panel1, 610,519,414,286
gauge05=XRS_Panel!Cockpit_lights_panel2, 610,805,414,208


//--------------------------------------------------------
[Vcockpit05]
Background_color=0,0,0
size_mm=1024,1024
visible=1
pixel_size=1024,1024
texture=$VC_05

gauge00=XRS_EngineFire_Panel!EngineFire_Panel, 0,0,834,305
gauge01=XRS_Panel!ELT_panel, 0,840,414,134
gauge02=XRS_Panel!Hydraulic_panel, 0,305,414,227
gauge03=XRS_Panel!Electrical_panel, 0,532,414,308
gauge04=XRS_Panel!Fuel_panel, 414,305,414,333
gauge05=XRS_Panel!Engine-APU_panel, 414,637,414,285


//--------------------------------------------------------
[Vcockpit06]
Background_color=0,0,0
size_mm=1024,1024
visible=1
pixel_size=1024,1024
texture=$VC_06

gauge00=XRS_Panel!air-cond_anti-ice_panel, 0,0,414,920
gauge01=XRS_Panel!Pressurization_panel, 414,0,414,214
gauge02=XRS_Panel!WS-Heat_Ext_Lts_NS-FSB_panel, 414,214,414,454
gauge03=XRS_Panel!Aural_warning_panel, 414,668,414,133
gauge04=XRS_Panel!Blank_filler_Panel, 414,801,414,176


//--------------------------------------------------------
[Vcockpit07]
Background_color=0,0,0
size_mm=1024,1024
visible=1
pixel_size=1024,1024
texture=$VC_07

gauge00=XRS_Panel!Throttle_Spoiler_control_vc, 0,0,414,600
gauge01=XRS_Panel!Slat_flap_park_brake_control_vc, 414,255,414,425
gauge02=XRS_Panel!AB_splr_Eng_EPR_control, 414,680,414,308
gauge03=XRS_Panel!EGPWS_control, 414,0,414,224
gauge04=XRS_Panel!LG_control_vc, 0,600,414,375


//--------------------------------------------------------
[Vcockpit08]
Background_color=0,0,0
size_mm=512,512
visible=1
pixel_size=512,512
texture=$VC_08


gauge00=FMC1!FMC, 0,0,325,512



[Color]
Day=255,255,255
Night=15,15,15
Luminous=15,15,15

[Default View]
X=0
Y=0
SIZE_X=8192
SIZE_Y=3500
Click to expand...

Be sure that you have correctly listed the gauge in the export table. If it's mssing, the gauge will compile without error but nothing will show up.

DragonflightDesign said:
Be sure that you have correctly listed the gauge in the export table. If it's mssing, the gauge will compile without error but nothing will show up.
Click to expand...
Added the export.xml, moved it into window 05 render:

should see:


I got it to render as BMP. But getting it in the dash is a problem now

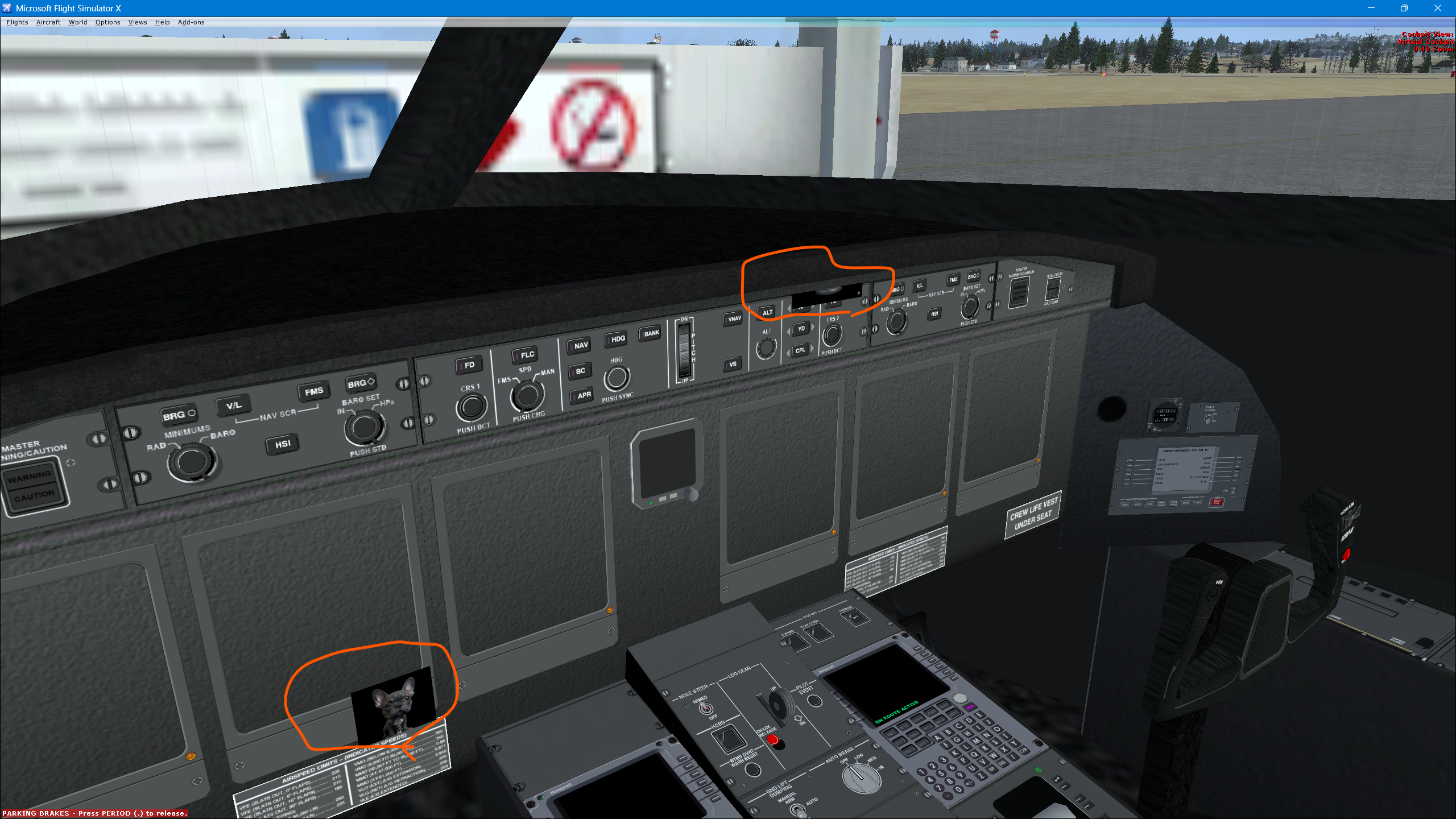

Plus, my displays look like they haven't been cut out. (New bobblehead image from NanaBanana)

Adding gauges to existing VC’s can be very difficult, depending on how the original VC was designed. That’s why most are added as a 2D subpanels, as was your original concept.

tgibson said:
Adding gauges to existing VC’s can be very difficult, depending on how the original VC was designed. That’s why most are added as a 2D subpanels, as was your original concept.
Click to expand...
I added it as a float for now, but I'm for sure going to look into Modeling. Don't see why not over the years done textures and now panels and sound. Seems logical next step.
