Gmax House Tutorials

J

Joe W

Messages
258
Country
unitedstates
I have been trying to do the house in the SDK and have got a problem. I can't seem to get the line ( the red one in the screen shot) to rotate right or to appear right. I think it needs to be where the ridge is or where a valley is. I just cant seem to get this right.
Thanks

Last edited:
Hi Joe,

I have done that tutorial too. I tapped the line shown in yellow. (see pic)
Just fiddle around a bit in that area and it should work.

Cheers,
Jaap



attachment.php


Attachments

  • huis.jpg
    70.1 KB · Views: 819
But.... shouldn't there be a line at the valley of the garage to the roof ridge and another at the ridge of the garage?
Those are missing. All edges are shown except the missing 2 and the red one in my shot that really shouldn't be there.
Thanks
Joe

Joe, you never wrote back after I suggested turning the edge. did you try that?

Bob

of course there are many ways to skin a cat in gmax....the tutorial writers never suggest their way is the only way.

Yes ....I did turn it. It went the other way, from the ridge in front to the valley at the eave where it intersects the house. Not that way it should have..... I don't think. To my thinking there should be a wire fram at all valleys and ridges and corners. In short.... all nodes that are an edge should be shown as a line.... not as this line is shown. There is no ridge there, or valley.
Of course....This is my first project in Gmax... never done one so I don't know whats right or wrong.
I have used Autocad for about 10 years. I'm basing this on using FSDS and Autocad. :confused:
Joe

Hi Joe

I think that your problem is comming from the fact that you have not selected the whole house.

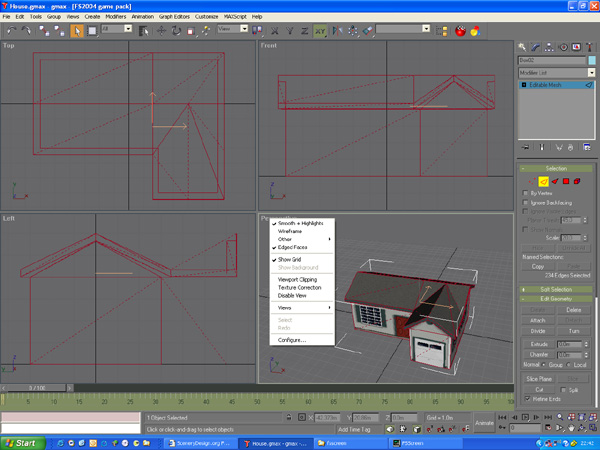

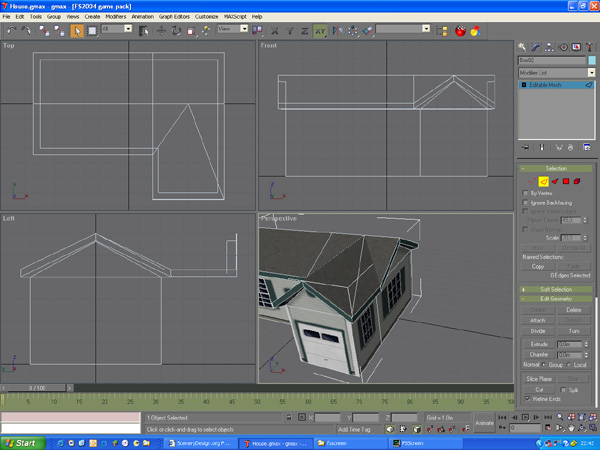

Pls look att my attached pic of my "house project". In the first picture is the house not selected, just marked. In the secons picture has i selected the whole house by draging a "selection box" around the whole building.

When this is done and you have "Edged Faces" selected so do you see all lines.

Hope that I understod your problem right so I don't just "talk rubbish".

Regards

Gerth


Attachments

  • House1.jpg
    86.7 KB · Views: 604
  • House2.jpg
    100 KB · Views: 606
Hi Joe,

I have done this tutorial as well. I found numerous errors in the instructions. Following the tutorial to the letter just doesn't give the roof as shown. I ended up ignoring the tutorial for that part and just tried figuring out what the turning actually did.

In the end I got what was shown in the pictures. Good luck with it. You will get there. It was my first model as well :)
