GMAX not showing textures

[shamrock122]

Hello everyone,
I recently got a new computer with windows 7(64 bit). everything is running great (FSX hitting almost 100 fps) except i have one problem with gmax. In gmax when i texture a model no matter what i do the texture wont display within the gmax program. However, if i export the model the texture shows up in fsx perfectly. Basicallly i apply the texture in the materials editor, click the blue and white checkered box, uvw map the texture. But my model still remains in its default colour e.g blue/grey/brown.....etc with no texture visible.

I have used GMAX with vista many times and never had this problem.
If it helps i am using the direct 3d driver and have a nvidia gt530 graphics card. I also have smooth and highlights enabled in the view menu. Any help? beacuse it is very difficult to texture something without being able to see the result.

Thanks



[Tejal Bernardo]

I's very weird,usually it's the opposite , people can't see the textures in Fsx,In gmax the only you can do is apply, and check that blue,wihte box.
Can you post what is the feature or spec of the pc, that frame rate is good, but you should say under what conditions, near of a complex airport ?



[shamrock122]

i have an i7-2600 4 gb ram, nvidia gt 530, 1tb harddrive. i think it should be well able to handle gmax. i also have a 1.9ghz laptop with 2 gb ram and it runs gmax without an problems. im a bit annoyed as i bought the computer to improve my designing

It is difficult to uvw map when i cant see how the textureit looks. instead i just guess the dimensions and hope for the best. I cant post a screenshot now as i am at work but tommorow i will post a screenshot of my problem if it helps.

thanks for the reply



[Tejal Bernardo]

Well, just don't worry, must be a silly thing, here with W7, and never fail, I choosed as Display drivers: direct3D Nvidia gtx 260, (in "preferences settings"-viewport), And the process for materials can't be simpler, new material, and once worked with the material, apply and check the litlte blue box. by now I have not heard of such an issue, so just not worry at all



[Tejal Bernardo]

Here another reason why could not work the textures in gmax
"Using Mapping
You can use scanned and painted bitmap images as part of the material. The placement of these bitmaps is controlled by the UVW mapping coordinates. If an object has no UVW mapping coordinates, the texture will not be visible in the viewport. UVW mapping coordinates can be added to an object or sub-object selection through the use of UVW Mapping modifiers."
Reading a tutorial is what I found, but I mapped without apply uvw mapping, I don't understand it



[arno]

What texture format are you using?



[tgibson]

What video driver are you using within GMAX? Try changing that?



[shamrock122]

i have tryed using many different formats- jpeg, bmp, dds, tga, png but none of them work. I have also tryed all of the different display drivers and again no luck

i have also tryed running GMAX in compatability mode for Vista and XP but that doesnt work either, running as administrator doesnt work either

by the way i appreciate the help guys



[Tejal Bernardo]

The only way I could replicate that is not asigning UVW maping.Do this, click in Standard primitives, box and before you draw your box, check "generate mapping coordinates" at the bottom of the command panel, make the box, apply Fsx material and asign a bitmap to this. then apply material and check the blue-white button.



[shamrock122]

The only way I could replicate that is not asigning UVW maping.Do this, click in Standard primitives, box and before you draw your box, check "generate mapping coordinates" at the bottom of the command panel, make the box, apply Fsx material and asign a bitmap to this. then apply material and check the blue-white button.

i tried this but it still doesnt work

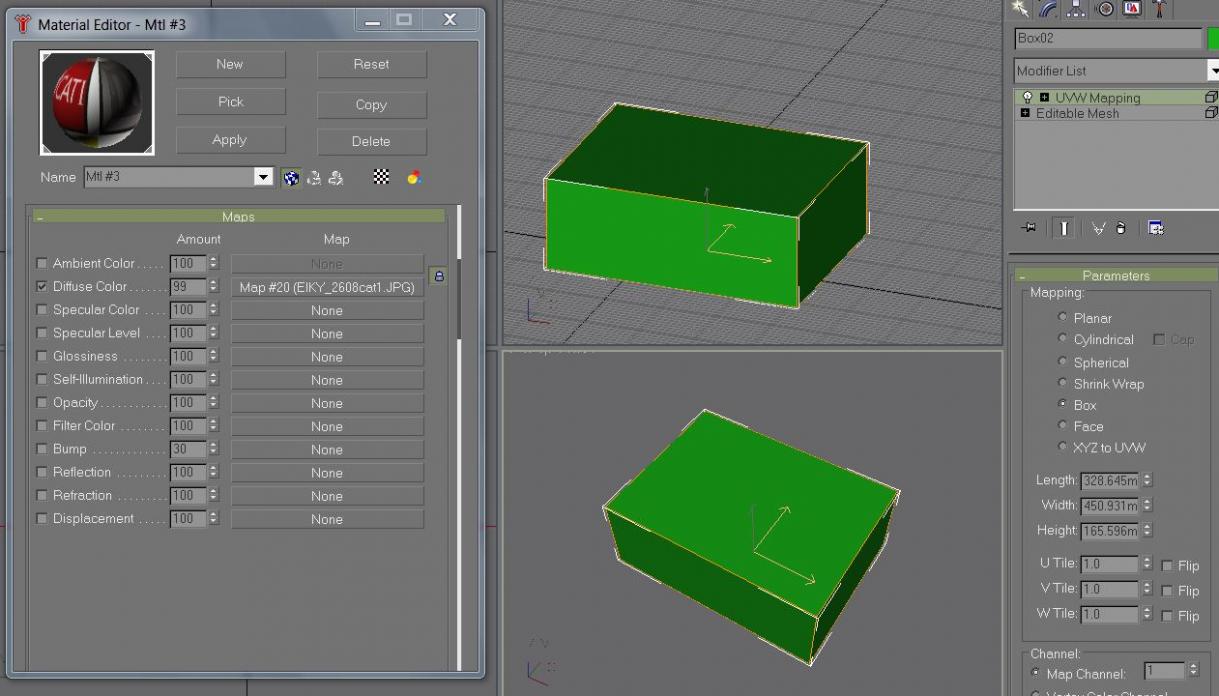

all i get is this,



[shamrock122]

i have just found a workaround
if i export my model to Arno's model creator x, save it as a .3ds file and then import it back into gmax, it works.

not a perfect solution but it works i guess



[Tejal Bernardo]

Always there is some kind of solution , anyway it's a misterious thing.Only can think of the texture formats, but you say too that have checked this with all the formats.extange really.



[tgibson]

I always use 24 bit BMP files, they are the simplest for me.



[Tejal Bernardo]

Yes, in the tutorials always was adviced to work with bitmaps 24, but I see that work with all formats except DDS.
take a look at this here there is a soul with the same problem http://www.google.es/url?sa=t&rct=j&q=gmax%20not%20show%20the%20textures&source=web&cd=9&sqi=2&ved=0CIEBEBYwCA&url=http%3A%2F%2Fforum.avsim.net%2Ftopic%2F70382-textures-not-showing-in-gmax%2F&ei=sGcxT9y3F4fU-gaflrHjBQ&usg=AFQjCNFAPX4S3utk2H8mExrgVJv2NwK-5g&sig2=PtJghU2pk4qCgT0MnwtgOw never you know if can be of help



[tgibson]

I find the texture mapping display in GMAX can be displaced if you use certain formats, like 8 bit (256 colors). And DXT formats do not display AFAIK. 32 bit BMP files will probably display, but I haven't checked for mapping displacement using that format. Others use PSD files with no problems though.

Hope this helps,



[Andrew]

All my gmax textures are Photoshop PDS, and in my opinion, the best way to go. Before I used tga. Both works well, regarding layers and all that I convert my PSD's directly with the FSX ImageTool, which is NOT the same ImageTool as the FS9 ImageTool. Just mentioning this in case someone already have fallen into that trap...

I use FSX SP2 or Acceleration. In future never without ACC, as it is the same as SP2, but gives me additional Navy goodies, and more MS models to place with Instant Scenery

Cheers,



[hcornea]

Can you post a sample texture and .gmax file that has the problem?

It doesn't sound like a config issue if a 3ds file will work when loaded back in.

We can then have a look.

BTW: You don't need to Run in Compatibility Mode. You do need to disable Desktop Composition under the same compatibility tab.

Also: You are running a laptop with hybrid graphics? Make sure that the program is set up to run using the Nvidia chip, to match your selected driver, rather than the Intel one.
