FSXA Ground Polygon Gaps. (Solved)

mendiola_loyola

mendiola_loyola

Resource contributor
Messages
520
Country
peru
Dear all:

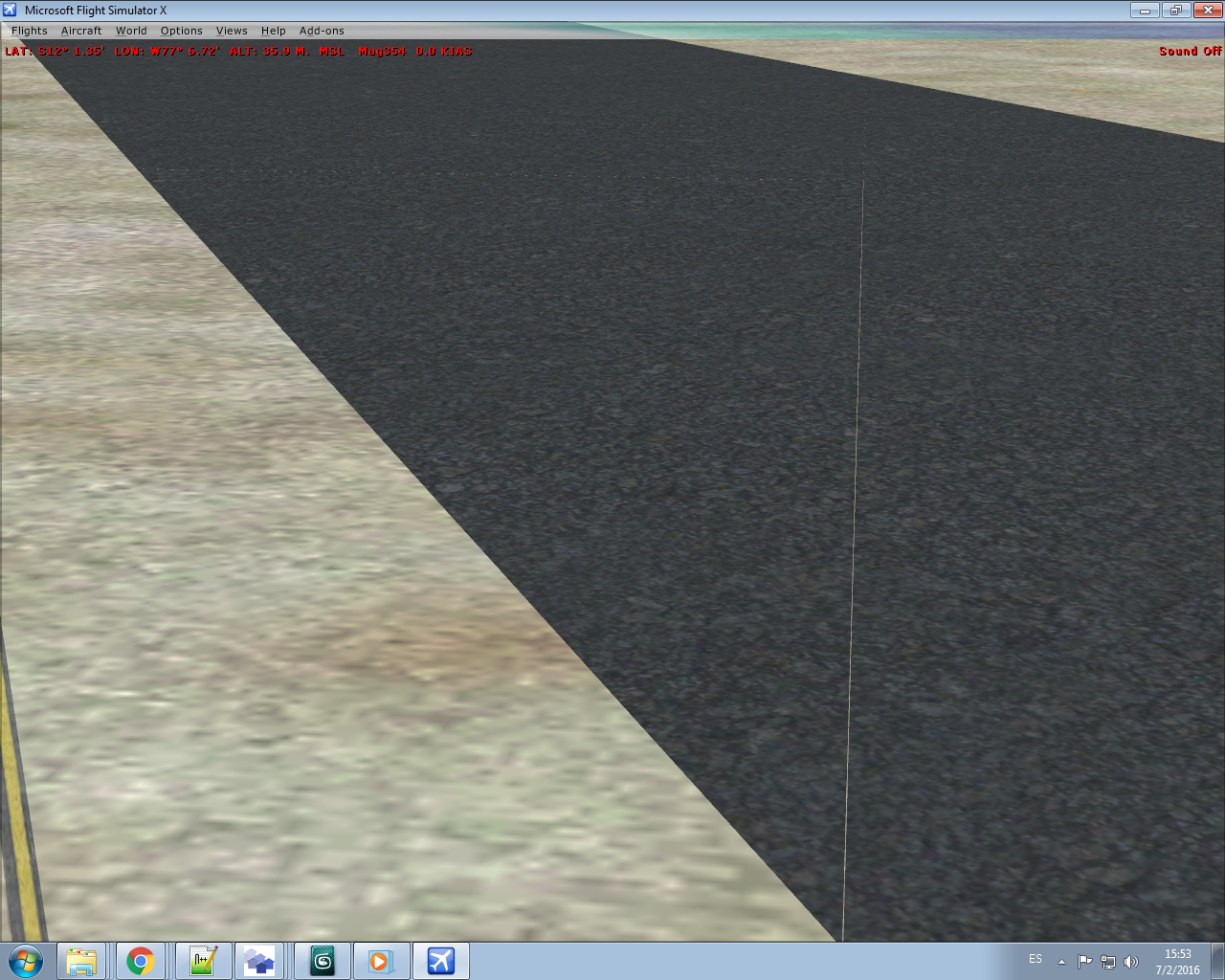

When I activate the option "Group Polygons 500 meter" I got cracked polygons like the picture.

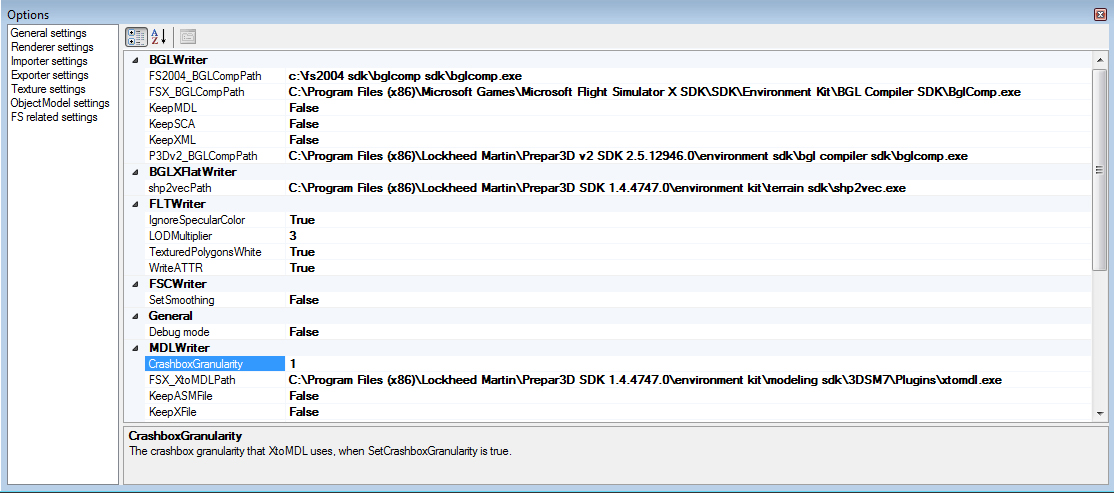

I'm Using model converter X 1.4.0
Exported from 3ds Max 9 with the FSX SDK (3dmax9 scripts folder)

I think there are problems when the generated mdl comes from a X file generated from 3ds Max 9.


Regards.
Alfredo Mendiola Loyola
Lima, Peru


Attachments

Are you sure you entered the correct altitude and that you have a flatten at the same altitude?

arno said:
Are you sure you entered the correct altitude and that you have a flatten at the same altitude?
Click to expand...
Yes Arno.
I have a flatten covering the polygon area, the flatten is set up to 30 meters.
I did a test using the Gmax with the FSX gamepack but the result is the same.


So both in the GPW, in your flatten and in the airport elevation you have entered 30 meters as altitude? In that case you should not see a crack. But if any of the values is off, the correction for the curve of the earth can't be calculated correctly. That can give such cracks.

arno said:
So both in the GPW, in your flatten and in the airport elevation you have entered 30 meters as altitude? In that case you should not see a crack. But if any of the values is off, the correction for the curve of the earth can't be calculated correctly. That can give such cracks.
Click to expand...
Yes Arno, both the airport elevation and the flatten have 30 meter. The GPW is set up to 30 meters and the ADE file for the airport has 30 meters.

If you want I can send you the x, mdl ang bgl files.

Regards.
Alfredo

But the default airport is at 34.442 meters (like I said before)!!!!!!!!!
How did you change the altitude in ADE? Do you have a 'stub' in your scenery\world\scenery?

robystar said:
But the default airport is at 34.442 meters (like I said before)!!!!!!!!!
How did you change the altitude in ADE? Do you have a 'stub' in your scenery\world\scenery?
Click to expand...
Are you saying there is a strong likelihood he never disabled the default airport, along with it's own flattens, likely at 34.442 meters? See, I'm not really sure because a) I can't tell what the default airport is because it's not in this thread and b) what does all your 34.xx2 meter stuff have to do with re-inventing the wheel anyway? It kind of looks like it might be funner to post questions and then figure out the answer one's self.

Alfredo should probably confirm the absence of mesh and conflicting scenery elements including flattens from other airports.

=rk= said:
Are you saying there is a strong likelihood he never disabled the default airport, along with it's own flattens, likely at 34.442 meters? See, I'm not really sure because a) I can't tell what the default airport is because it's not in this thread and b) what does all your 34.xx2 meter stuff have to do with re-inventing the wheel anyway? It kind of looks like it might be funner to post questions and then figure out the answer one's self.

Alfredo should probably confirm the absence of mesh and conflicting scenery elements including flattens from other airports.
Click to expand...

I disabled all my sceneries on FSX, I placed the ground polygon on the Addon Scenery folder.
I tested the ground polygon with the default airport elevation 34.442 meters and the result was the same.
It is hard to find the gaps on the polygon, there is one or two gaps on the polygon.
Even I created a bigger flatten polygon ...

Gap Coordinates on FSX:
12* 1.55'S
77* 6.72'W

MDL Setup:
Lat:-12.02220000
Lon:-77.11200000
Elev: 34.442

ICAO: SPIM

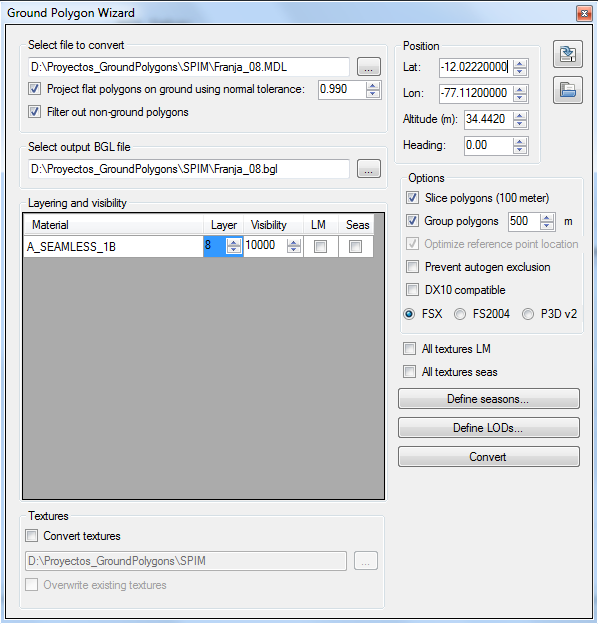

7-6-2016 8-37-01.png

Regards.
Alfredo Mendiola Loyola
Lima, Peru


Attachments

Awesome, thanks for the background information. For what it is worth I looked at your polygon in MCX and didn't find anything typical of the fractured poly your image shows. If I can, I'll explore further.

Please don't hesitate to be as descriptive and explicit as possible so it is easy to understand your situation, now and if someone searches this rhread. Thanks.

Ok I looked at you polygon again and it seemed perfect to me. I did not compile it but I would not suspect your 3d program, I would look to compilation or placement errors.

Dear Rick:
Did you see the Polygon on FSX?
Could you generate the bgl in your computer and share it to test in my FSX environment?

Regards
Alfredo Mendiola Loyola

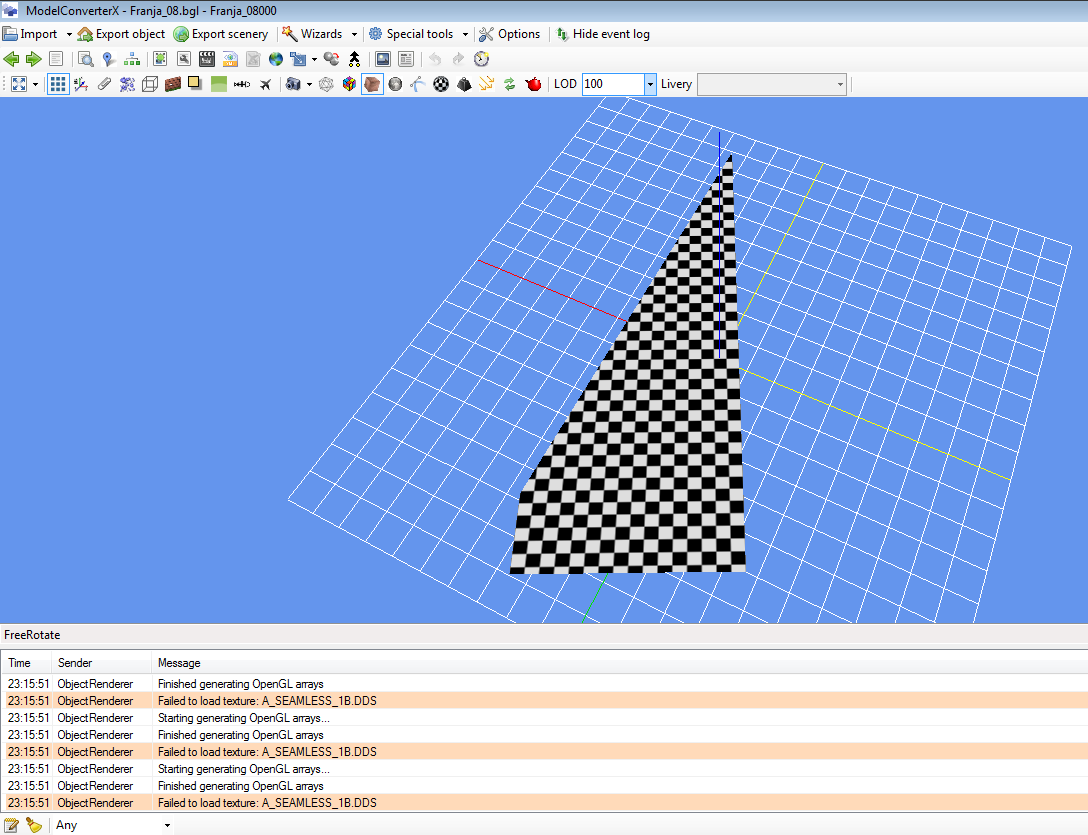

When I import the generated bgl with the MCX 1.4 I can't see the complete polygon.
Only if I uncheck the group Polygons 500 meters I can see the complete polygons:

7-6-2016 23-16-11.png


Regards
Alfredo

Hi,

The mdl is at 10cm above the ground.

The picture you show is a bgl that probably contains two mdl's. Click on the green arrow to see the other one.
Make sure they are both at 0.00m using the move button. Then merge the second one to the first one and export the merged mdl.
Open the merged mdl with the GPW and convert.

I have not had the opportunity to compile, but in MCX I see a perfect rectangle composed of 80 polygons with 161 sides which is exactly what I would expect and it is a single model.

I needed to set the model at -0.1m for it to display correctly at the runway mid-point. However, it is slightly higher at the ends.

I see no breaks in the texture:


mendiola_loyola said:
I disabled all my sceneries on FSX, I placed the ground polygon on the Addon Scenery folder.
Click to expand...
Some addon files do not reside within the Addon Scenery folder and it very much appears to me that you have other scenery elements interfering with your tests. If you are testing for your own use exclusively, then it is good to discover what causes this issue and correct this scenery for it. If you are testing for distribution, then you should locate the unique factor in your individual system and eliminate it.

Could you generate and attach a bgl file from the mdl attached to test it on my computer?

Regards

Here come the bgl and the mdl (because I do not have your texture). I had done the same as George in MCX (= lower the model 0.1 m z) first.
