How can I add waypoints to xml file?

A_day

A_day

Messages
18
Country
turkey
I'm building a new airport that doesn't actually exist. Since there is no possibility to add waypoints from msfs using SDKs, I have to manually add all vors and waypoints to object.xml. I managed to introduce vor/dme's, but I can't add waypoints. Error.

What could I be doing wrong?

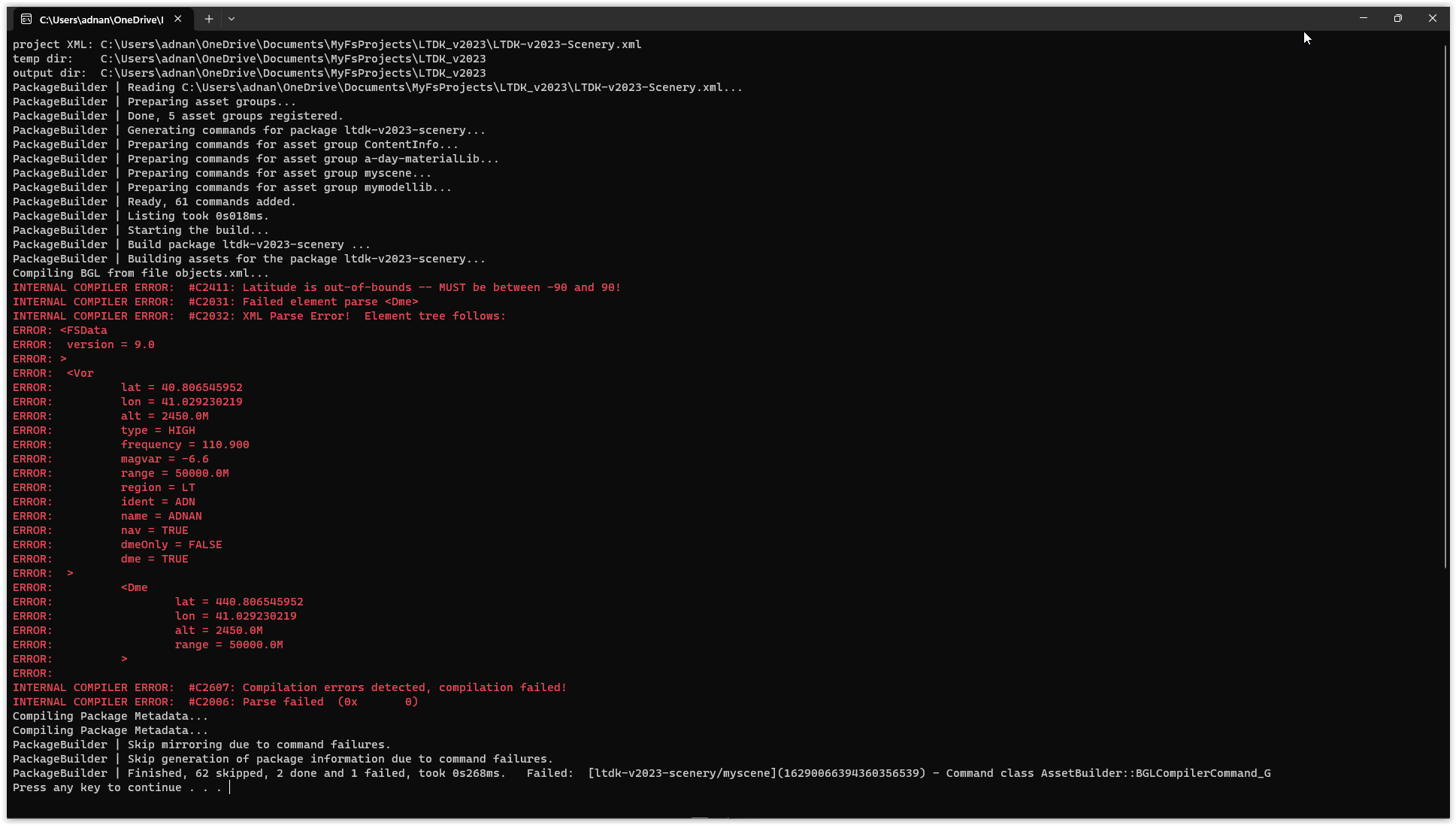

Screen Shot 06-07-23 at 10.09 PM.PNG


my object.xml file :

https://dosya.co/wni2dphpk30c/objects.xml.html

The compiler is literally telling you where the error is:
In the Dme section of the Vor there is a type in the latitude coordinates (440 instead of something else), that value is out of bounds, cause altitude range from 90 to -90)

Waypoints are still not the culprits

Inviato dal mio Mi 9 Lite utilizzando Tapatalk

@mamu, thank you for your interest. I didn't see that error, thanks.

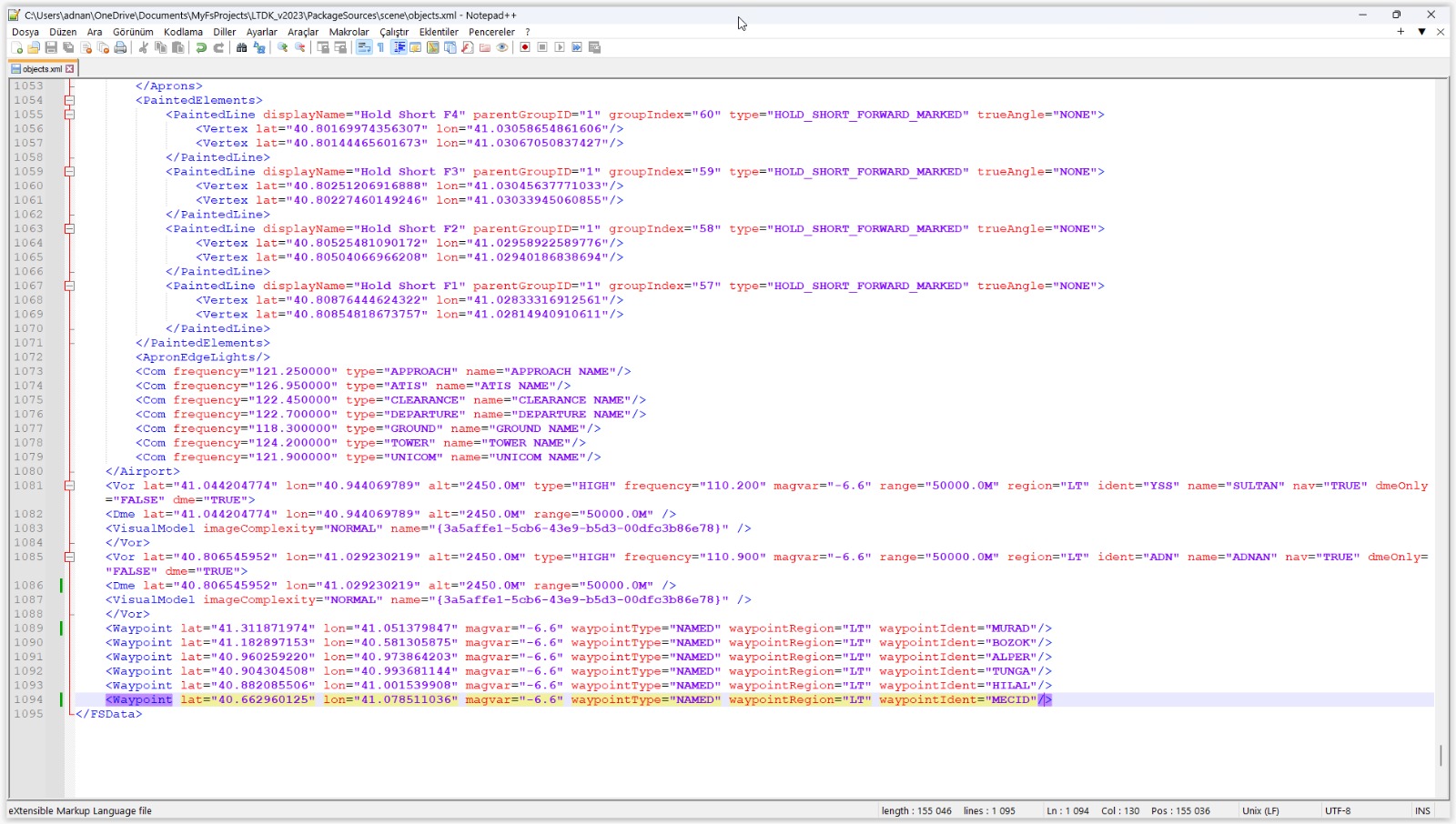

After correcting that number, I didn't get an error when I compile it, but when I open my object.xml file in ADE21, only 2 blue-marked vor dots appear. In the places I marked with red, there should be waypoints that I want to add, but they are not visible.

What would be the reason?

WhatsApp Image 2023-06-08 at 00.18.22.jpeg
WhatsApp Image 2023-06-08 at 00.18.10.jpeg


WhatsApp Image 2023-06-08 at 00.18.28.jpeg

Adnan,

you are correct that ADE for MSFS2020 is not recognising waypoints and some others that are not part of the SDK when you tick "Two Way Edit" from your objects.xml.

But, I think, you can construct them in ADE for MSFS and they are written to the objects.xml when you save but when you read in again they are not recognised and lost!

Hans
