How to Create Loft Edge using 3Ds max (Tutorial needed)

[Majid]

@Majid once you check generate texture coord. do not use UVW Map, instead use Unwrap UVW, then edit UVW.If you use UVW Map, you will loose the ability to have the texture follow the curve.

Thanks , I will try it tonight.



[Aviasim]

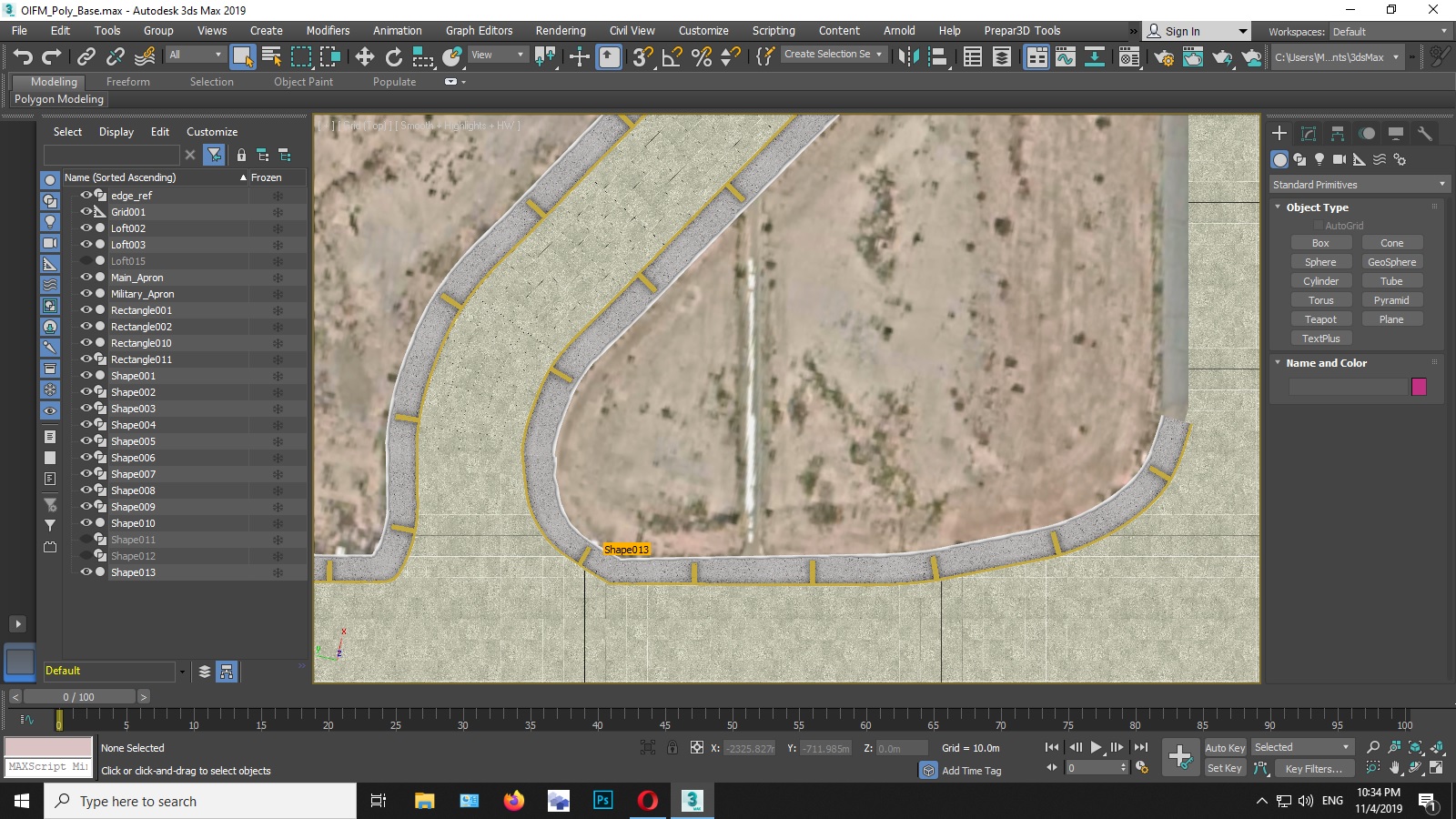

I guess this Option should be uncheck , please take a look these shots :

No - otherwise I wouldn't recommend checking it.
It's "REAL WORLD MAP SIZE" meaning it's trying to scale it to the size of the loft - it "normalises" the texture, you just have to scale down.

Never seen someone turn down, reject and refuse so much help. Unreal.



[Majid]

No - otherwise I wouldn't recommend checking it.
It's "REAL WORLD MAP SIZE" meaning it's trying to scale it to the size of the loft - it "normalises" the texture, you just have to scale down.

Never seen someone turn down, reject and refuse so much help. Unreal.

Hi
As you noticed I'm beginner in 3ds max So this is very clear that I just trying to the find best and easiest way or method to continue my project , As I remember you and other member @Nater I guess , you two had a different opinion about this check box , for me as a beginner this is Clear that I need to try for myself and find best way that make me happy , and at the end I'm Grateful person , every time some one reply to my posts and said Thank you. you can see and check for yourself , NOW the Question is why you believe i reject or refuse other people kindness or help? i recommend you and Nater to reach Agreement with each other about REAL WORLD MAP SIZE.
P.S
I'm still working on it (Edges) Still not happy with result , need more tweaking.

Regards.



[Aviasim]

All real world map size does is map your mesh IN PROPORTION - you just have to go to Unwrap UVW and "Uniform Scale" down until it fits your texture... it's REALLY simple. You can go without checking real world map size, but then you have to scale the UVs to match the proportion of the mesh and texture yourself.

Again, it's made clear in the 2014 tutorial, use it, trust it.. you won't get final results on step 1.



[Majid]

All real world map size does is map your mesh IN PROPORTION - you just have to go to Unwrap UVW and "Uniform Scale" down until it fits your texture... it's REALLY simple. You can go without checking real world map size, but then you have to scale the UVs to match the proportion of the mesh and texture yourself.

Again, it's made clear in the 2014 tutorial, use it, trust it.. you won't get final results on step 1.

Thanks , now i got the difference , I'll try it tomorrow .



[Majid]

Hello guys
Sorry for my big delay , I'm so busy these days so i wrote this post to thanks from everyone that helped me to solve my problem , I have to tell you I Completely learn how to use sweep method and this not Happen without your help , Thanks guys you are great.

Best
