ILS requiring a rather large curve?

S

SpoorObjecten

Messages
18
Country
netherlands
Hey guys,

Does anyone have any insight on the ILS procedure in FS2020?

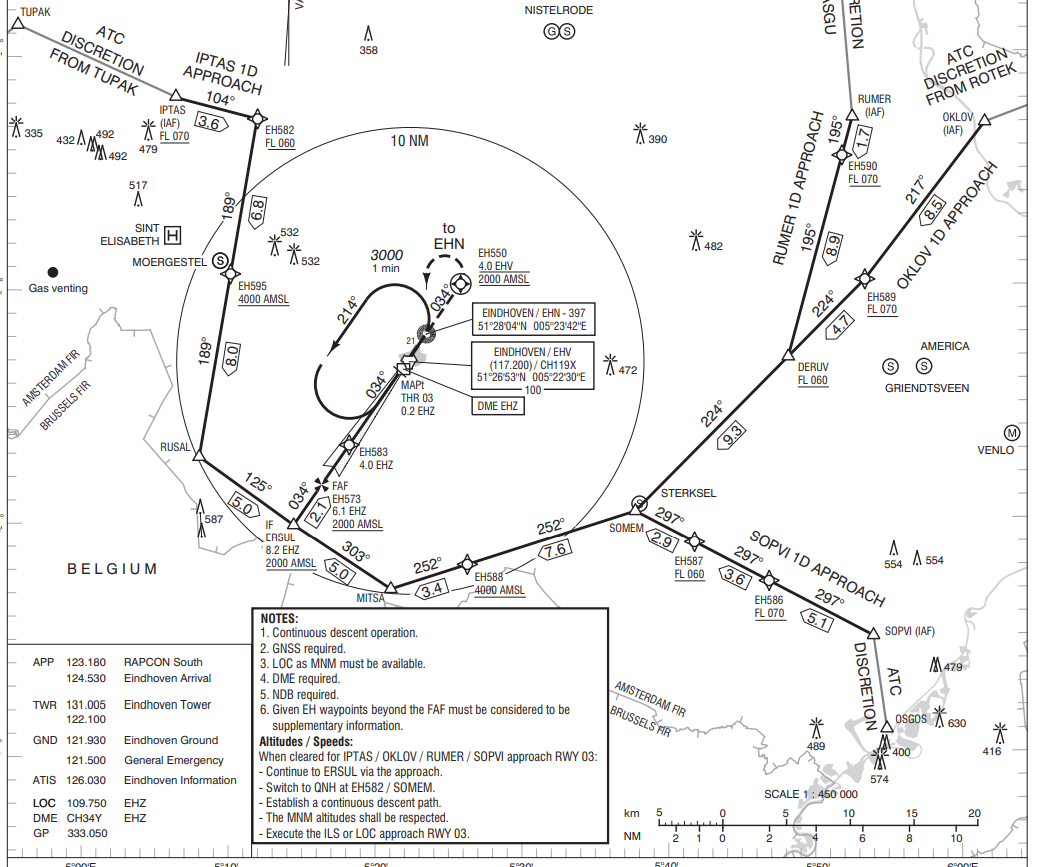

My approach looks like this:

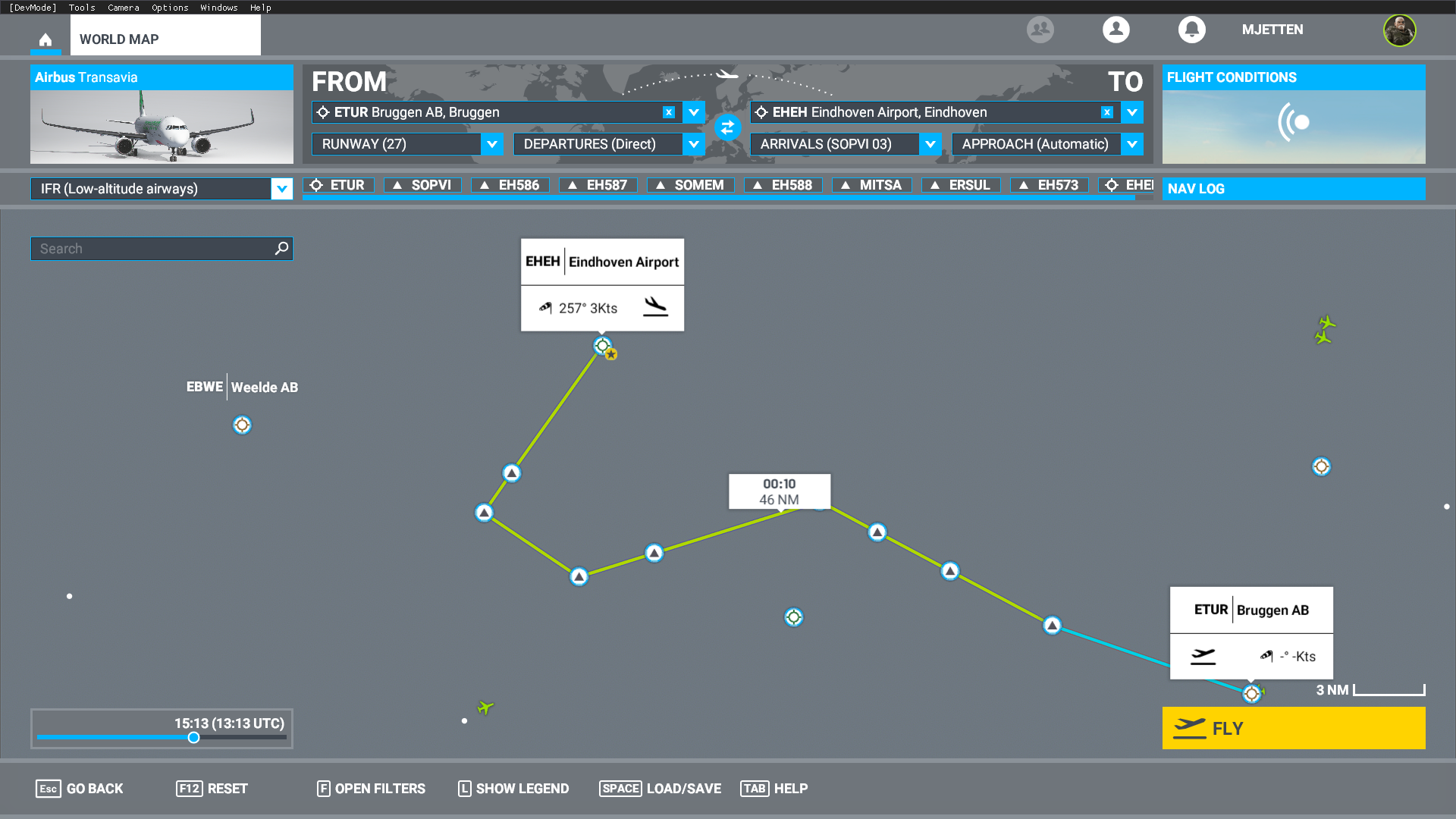

Which is as expected:

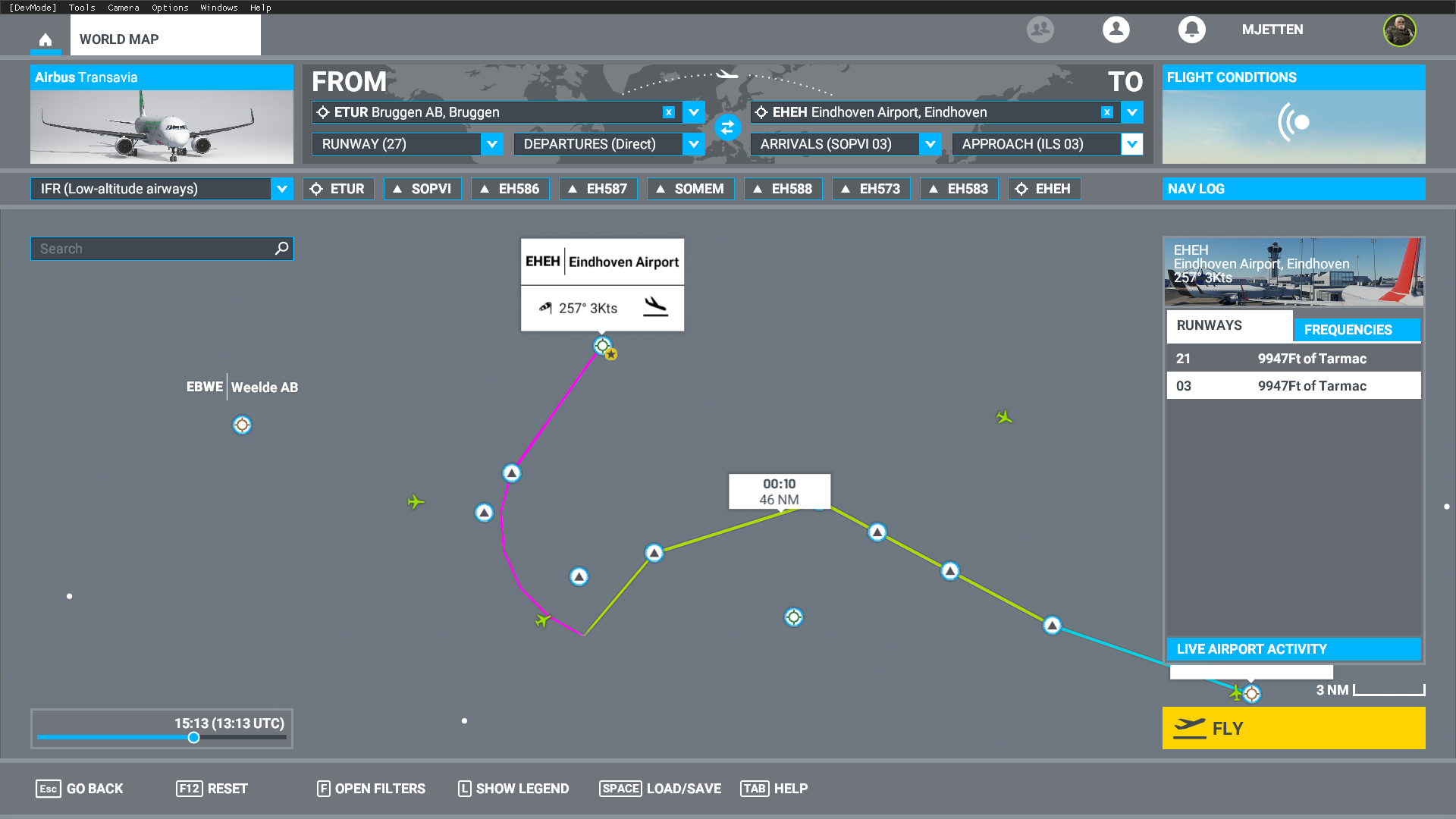

However the moment I set the approach to ILS, it suddenly changes my arrival (skipping some points) and creating a huge curve:


So it's trying to skip 2 waypoints and go south to then make a rather large curve.

Is this something with my code or is this an FS2020 issue?

<Approach type="ILS" runway="03" fixType="TERMINAL_WAYPOINT" fixRegion="EH" fixIdent="EH583" altitude="1330.0F" heading="35" missedAltitude="5000.0F">
<ApproachLegs>
<Leg type="IF" fixType="WAYPOINT" fixRegion="EH" fixIdent="EH573" recommendedType="LOCALIZER" recommendedRegion="EH" recommendedIdent="EHZ" theta="35" rho="6.1N" altitudeDescriptor="I" altitude1="2000.0F" altitude2="2000.0F"/>
<Leg type="CF" fixType="TERMINAL_WAYPOINT" fixRegion="EH" fixIdent="EH583" flyOver="FALSE" recommendedType="LOCALIZER" recommendedRegion="EH" recommendedIdent="EHZ" theta="35" rho="6.0N" magneticCourse="35" distance="4.0N" altitudeDescriptor="A" altitude1="1330.0F"/>
<Leg type="CF" fixType="RUNWAY" fixRegion="EH" fixIdent="RW03" flyOver="TRUE" recommendedType="LOCALIZER" recommendedRegion="EH" recommendedIdent="EHZ" theta="35" rho="1.4000000000000001N" magneticCourse="35" distance="0.2N" altitudeDescriptor="A" altitude1="26.0F"/>
</ApproachLegs>

Did you have to hand code the approach and pattern somewhere deep in the files? I assume so as I can't find any option in the SDK. All of the airports I've done are all over the place as I can't figure this out.

Try to add a WPT before <Leg type="IF" fixType="WAYPOINT" fixRegion="EH" fixIdent="EH573",
Exampel <Leg type="TF" fixType="WAYPOINT" fixRegion="EH" fixIdent="CRSUL"
Note Waypoint must be exist in sim.

I tried that as well but still didn't want to do a straight line up :(
On the arrival I now end up at EH573, but still skips a few points for the ILS and makes this weird curve

<Arrival name="SOPVI">
<EnrouteTransitions>
<EnrouteTransitionLegs>
<Leg type="IF" fixType="WAYPOINT" fixRegion="EH" fixIdent="SOPVI"/>
<Leg type="TF" fixType="WAYPOINT" fixRegion="EH" fixIdent="EH586" flyOver="FALSE" magneticCourse="0.0"/>
<Leg type="TF" fixType="WAYPOINT" fixRegion="EH" fixIdent="EH587" flyOver="FALSE" magneticCourse="0.0"/>
<Leg type="TF" fixType="WAYPOINT" fixRegion="EH" fixIdent="SOMEM" flyOver="FALSE" magneticCourse="0.0"/>
</EnrouteTransitionLegs>
</EnrouteTransitions>
<CommonRouteLegs>
<Leg type="IF" fixType="WAYPOINT" fixRegion="EH" fixIdent="SOMEM" altitudeDescriptor="+" altitude1="6000.0F"/>
<Leg type="TF" fixType="WAYPOINT" fixRegion="EH" fixIdent="EH588" flyOver="FALSE" magneticCourse="0.0" altitudeDescriptor="+" altitude1="4000.0F"/>
<Leg type="TF" fixType="WAYPOINT" fixRegion="EH" fixIdent="MITSA" flyOver="FALSE" magneticCourse="0.0" altitudeDescriptor="+" altitude1="4000.0F"/>
<Leg type="TF" fixType="WAYPOINT" fixRegion="EH" fixIdent="ERSUL" flyOver="FALSE" magneticCourse="0.0" altitudeDescriptor="+" altitude1="4000.0F"/>
</CommonRouteLegs>
<RunwayTransitions>
<RunwayTransitionLegs number="03" designator="NONE">
<Leg type="IF" fixType="WAYPOINT" fixRegion="EH" fixIdent="ERSUL" altitudeDescriptor="+" altitude1="2100.0F"/>
<Leg type="TF" fixType="WAYPOINT" fixRegion="EH" fixIdent="EH573" flyOver="FALSE" magneticCourse="0.0" altitudeDescriptor="+" altitude1="2000.0F"/>
</RunwayTransitionLegs>
</RunwayTransitions>
</Arrival>


<Approach type="ILS" runway="03" fixType="TERMINAL_WAYPOINT" fixRegion="EH" fixIdent="EH583" altitude="1330.0F" heading="35" missedAltitude="5000.0F">
<ApproachLegs>
<Leg type="IF" fixType="WAYPOINT" fixRegion="EH" fixIdent="EH573" recommendedType="LOCALIZER" recommendedRegion="EH" recommendedIdent="EHZ" theta="35" rho="6.1N" altitudeDescriptor="I" altitude1="2000.0F" altitude2="2000.0F"/>
<Leg type="CF" fixType="TERMINAL_WAYPOINT" fixRegion="EH" fixIdent="EH583" flyOver="FALSE" recommendedType="LOCALIZER" recommendedRegion="EH" recommendedIdent="EHZ" theta="35" rho="4.0N" magneticCourse="35" distance="4.0N" altitudeDescriptor="A" altitude1="1330.0F"/>
<Leg type="CF" fixType="RUNWAY" fixRegion="EH" fixIdent="RW03" flyOver="TRUE" recommendedType="LOCALIZER" recommendedRegion="EH" recommendedIdent="EHZ" theta="35" rho="1.4000000000000001N" magneticCourse="35" distance="0.2N" altitudeDescriptor="A" altitude1="100.0F"/>
</ApproachLegs>

That 'curve' is reasonably prototypical in terms of what the aircraft will fly. The IF is not a 'fly-over' fix, so the ILS intercept path doesn't have to go over it. The fact that the approach also misses the MITSA waypoint is, I suspect, because MSFS assumes a certain radius of turn to intercept the ILS, and that's the geometry it comes up with. In real life, and assuming approach speeds prior to the FAF of about 180kts, I'd have expected a turn radius of around 2-3 nm, so MSFS is overdoing it somewhat!

Then you have to create transition.
Addd missing leg in the approach, is absolutely necessary.
