Invisible rwy with SCASM - RwyLights

Hi Arno, thanks for your reply and i set light value to 3 because I was proving with some different values seeing the Scasm manuals and also I changed the surface value to -1 but the light appear partially and when you move it desappears, when you are on approach the lights are not visible, what could it be?

Cesar

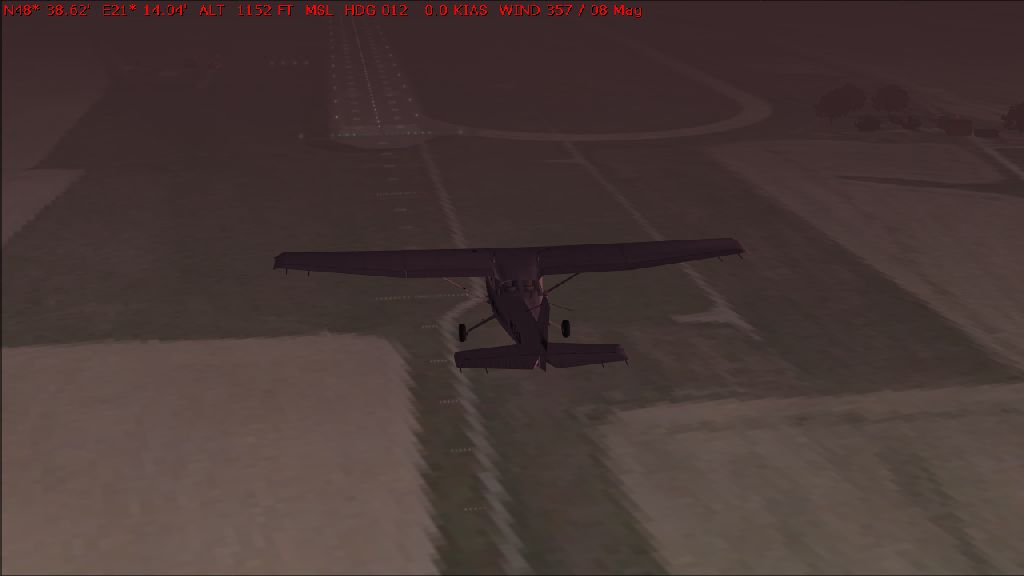

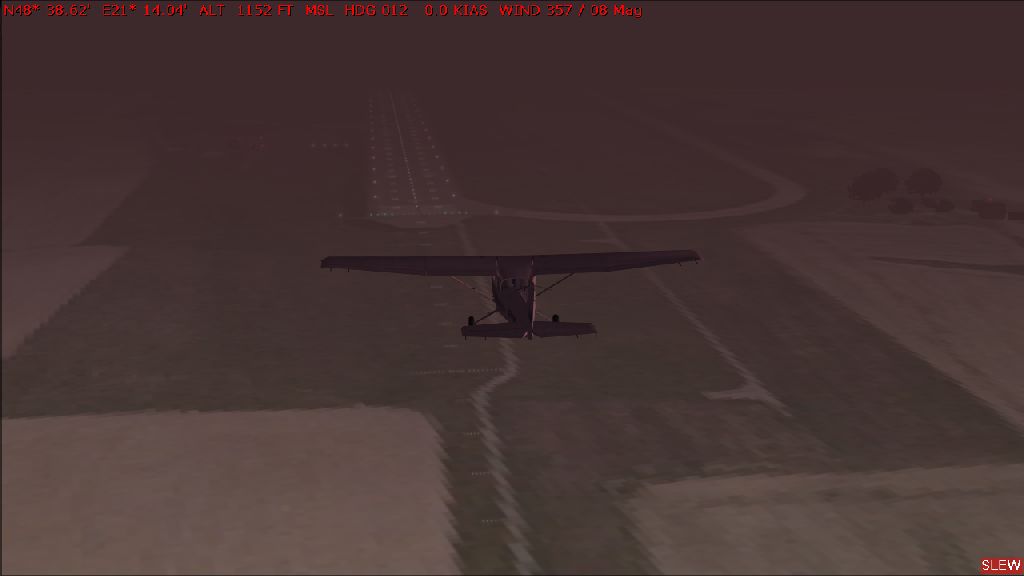

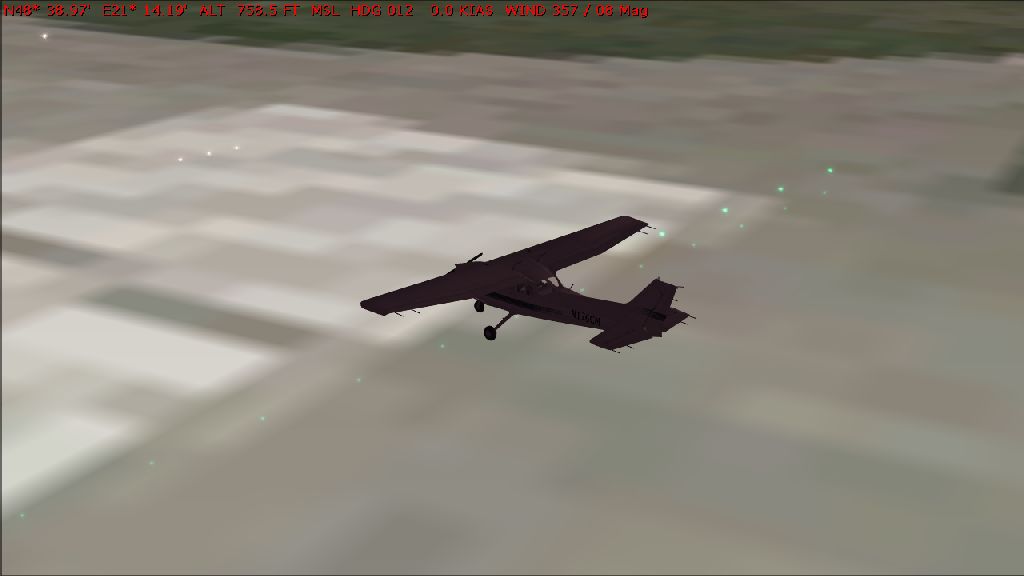

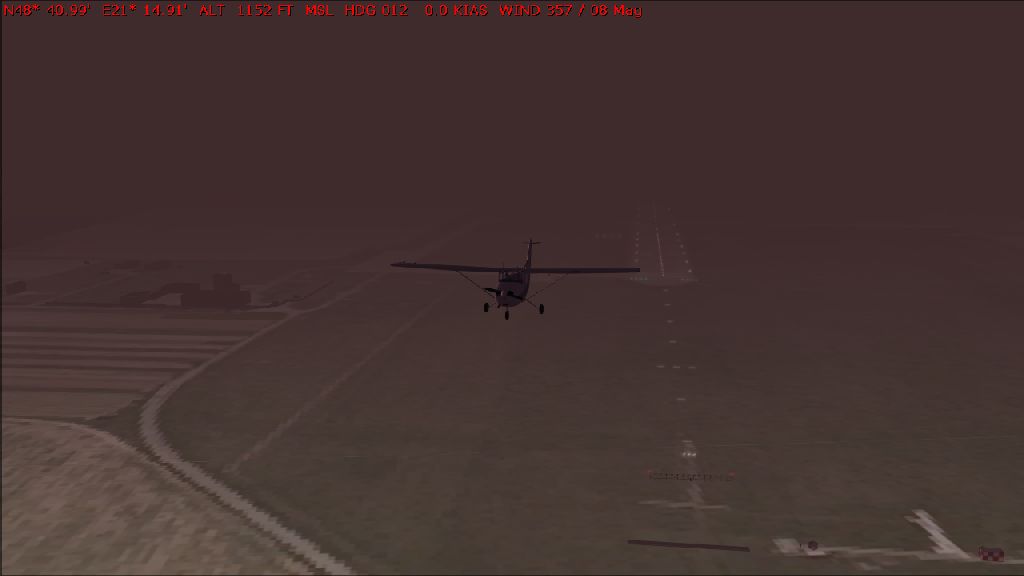

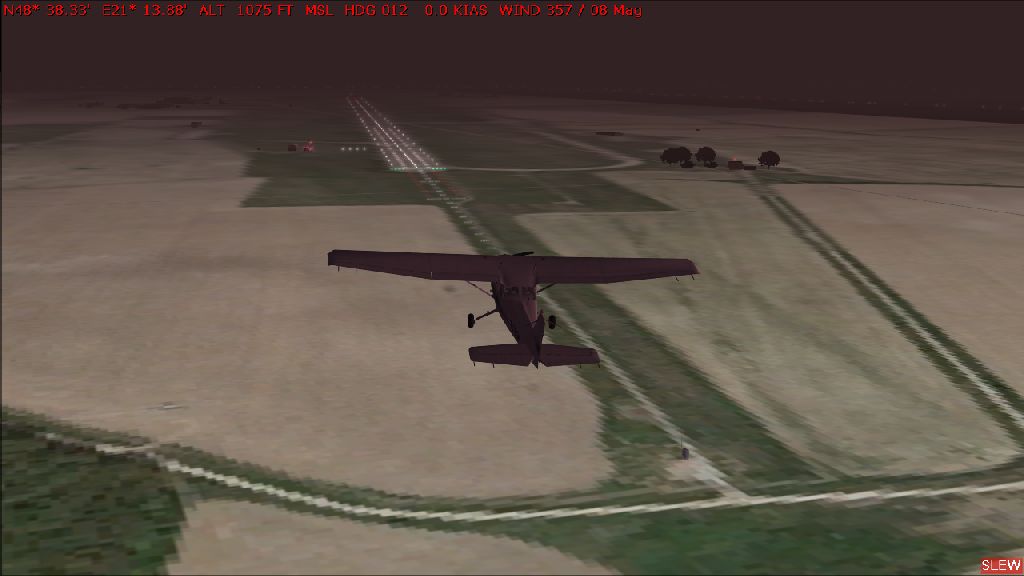

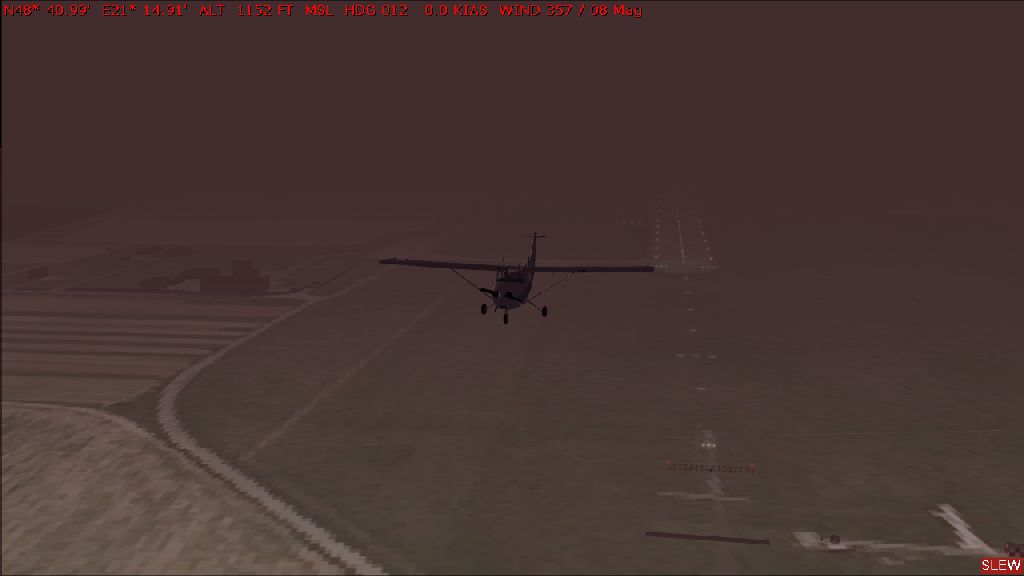

Hi, here is a picture what I see:




Cesar

Hi guys, I solved the problem but its something strange, I just delete a layer of the runway and it works, I really dont understand what could it be I supouse the number of layers or something like that because that layer was made as the other layers via fs2002 gamepack.

Cesar

Hi Cesar in my past experience if you have a Layer number 2 it causes problems. If you haven't already, start your layer numbers at 4. Also I would think if you have a large number of layers, say 40(!) you might want to merge those that you can.

Hopefully that was somewhat helpful.

I am not sure if this deserver own thread... somebody please move the post if you believe so.

So, I have played with SCASM runways a bit. I managed to make it show up where I wanted it, and to stop it causing flickers. Then I managed to make it show approach lights and TDZ lights on near side.

While being a bit problematic, eventually I managed, via use of two draws, to add a REIL light too (both REIL and TDZ light are uncombinable values of ThrLights parameter in Runway draw call. And by the way, REIL is value 04, not 02 as stated in SCASM documentation).

But I am having problem making RAIL type AppLts (value 08) to show up. Both 07 ALSF2 and 03 MALSR (on far side) show up normally. Has anyone tried and succeeded in placing this type of approach lighting on SCASM runway?

Also, having both TDZ and REIL showed does make a small glitch... but nothing to worry about too much.


Attachments

  • Tuto_021.jpg
    49.5 KB · Views: 544
  • Tuto_022.jpg
    28.9 KB · Views: 560
  • Tuto_023.jpg
    26.1 KB · Views: 526
  • Tuto_024.jpg
    23.5 KB · Views: 514
  • Tuto_025.jpg
    22.6 KB · Views: 523
  • Tuto_026.jpg
    24.2 KB · Views: 517
Hello,
I'm trying to create SCASM lightning, but when exporting I receive

E:\projekt\other>SCASM 121.txt 1211.bgl
Scenery Assembler Vers. 2.96
Copyright(C)1995-2005 by Manfred Moldenhauer, Manfred.Moldenhauer@t-online.de
Any unauthorized distribution prohibited

found sections: 0x00000200
VIS SCN -> entrys: 1 mem: 114
Linebuffer 354/20480
Maxlabels 1/1500 Maxpatches 3/2000
Warning! No Header command in source file!
Scasm compilation status: error(s) 0
Click to expand...

Here's my code:

Header( 0 34.00 33.00 -118.00 -117.00 )
LatRange( 33.00 34.00 )

Area( 5 33:40:48.85 W117:52:17.31 12 )
LayerCall( :drawStuff 24 )
Jump32( : )

:drawStuff
Runway( N33:40:48.85 W117:52:17.3
Alt 16.6
Heading 027.0
Length 5708
Width 150
Markers 00
Lights 4
Surface -1
Threshold 0
ThrOffN 0
ThrOffF 5708
ExtN 0
ExtF 0
ThrLightsN 69
AprLN 0
AprLF 10
VasiBarsN 3
VasiSpaceN 300
VasiDistN 5000
VasiSideN 153
VasiSlopeN 3.0
ThrLightsF 01
AprLF 03
VasiBarsF 8
VasiSpaceF 0
VasiDistF 2104
VasiSideF 95
VasiSlopeF 3.0
)
Return
EndA
Click to expand...

Could somebody help me?

Thank you

Last edited:
