K:Variable in Element section - Single switching ?

Hi Karol,

You're welcome ...
Really, no rocket science here ..LoL
The code just normalises the substraction between 0 and 360, and substracts 360 if the difference is > 180.

As said, a familiar problem....
I stumbled onto it years ago for a simular application, and (like you) spent a few hours trying to realise why it sometimes worked and sometimes not .......

Cheers, Rob

For information , the following briefly details some aspects of the current state of the BNS - Bomb Nav System .

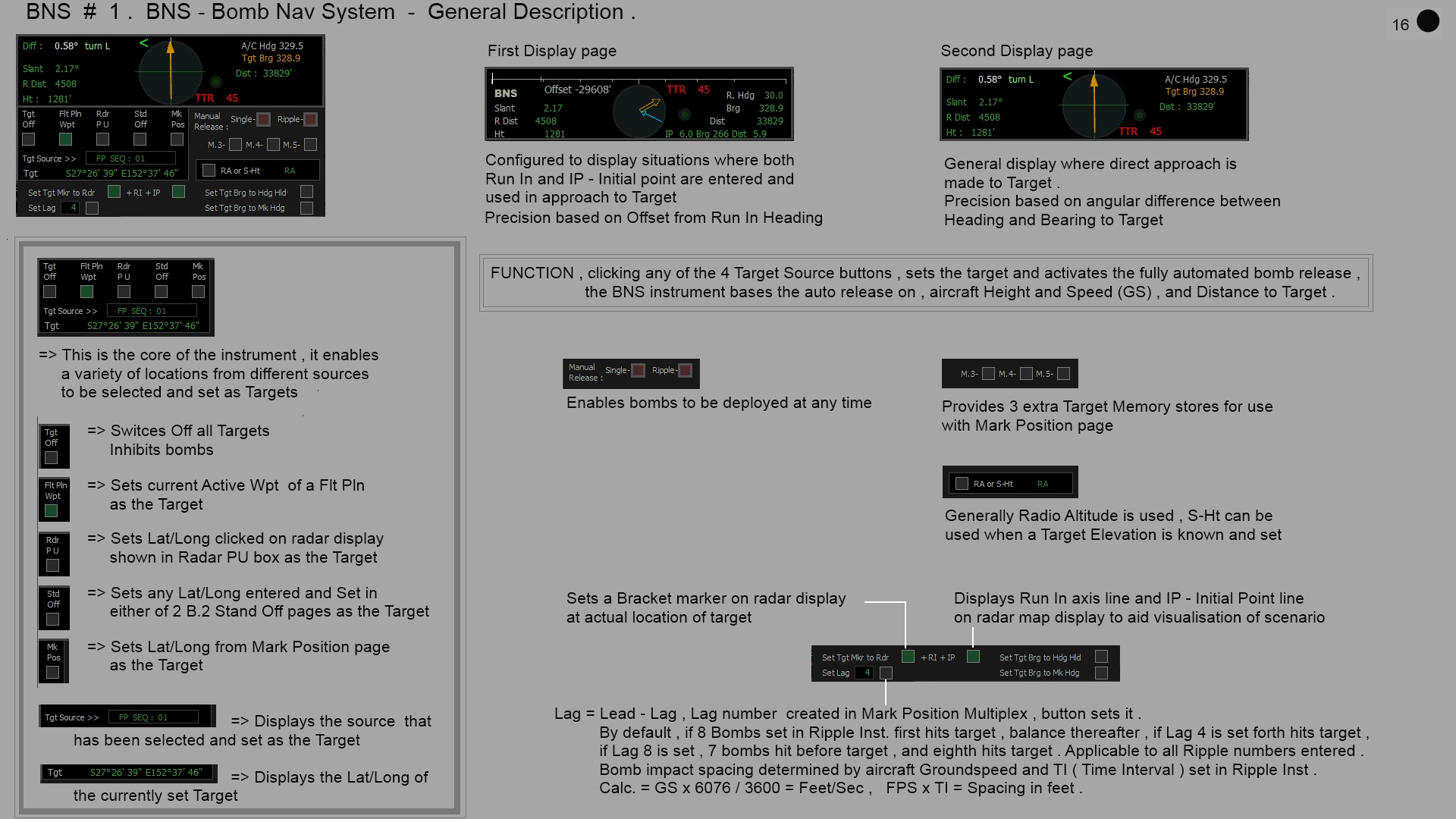

# 1 . General arrangement .
BNS # 1.jpg

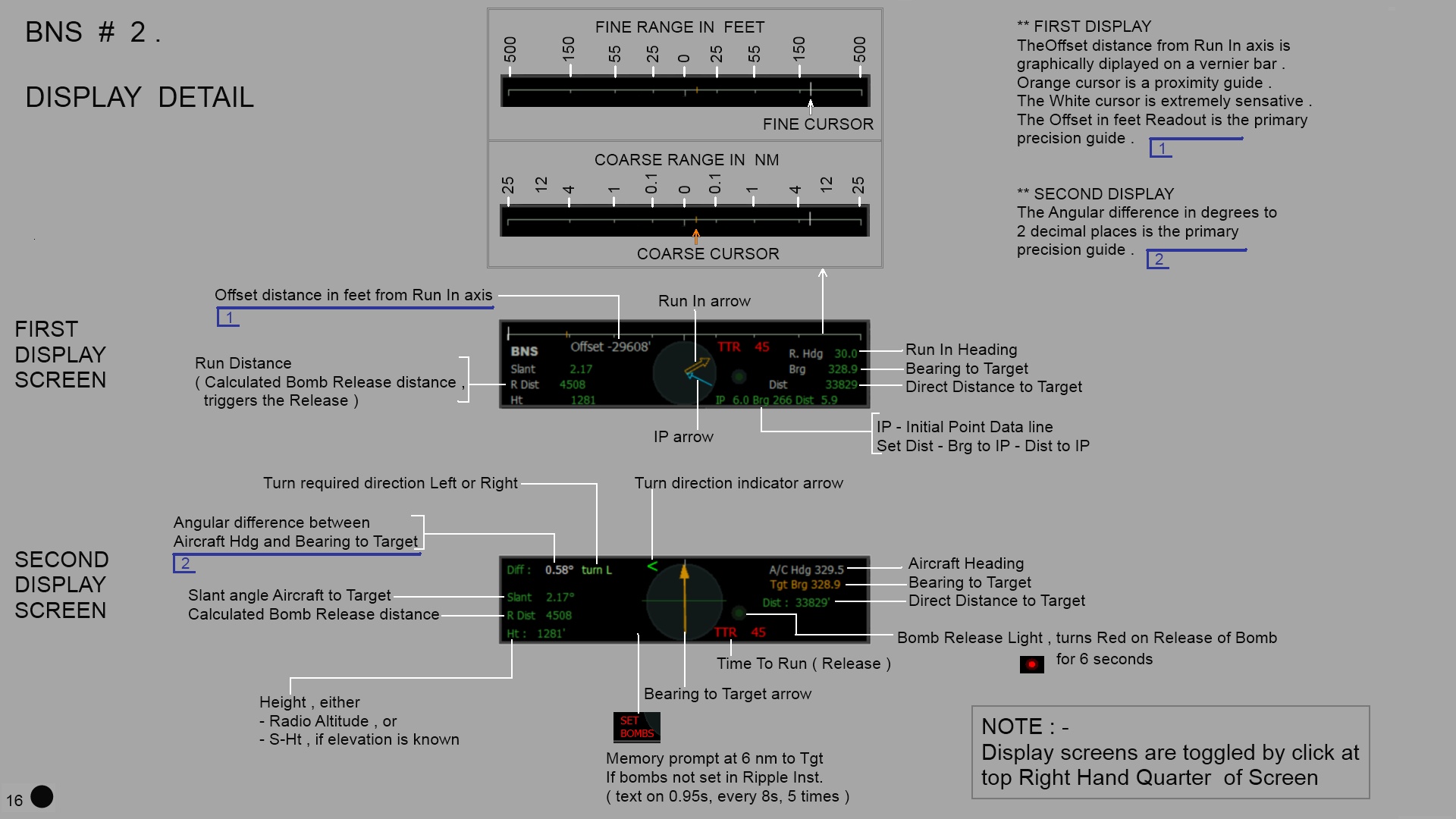

# 2 . Display aspects .
BNS # 2.jpg

# 3 . Over view of System .
The BNS instrument utilises several other instruments to derive Targets , input data , and present visual depictions to aid pilot .
Instruments are : - Radar , Flight Plan Editor in Right MFD , Mark Position page in Left MFD , and Ripple Bomb switch .

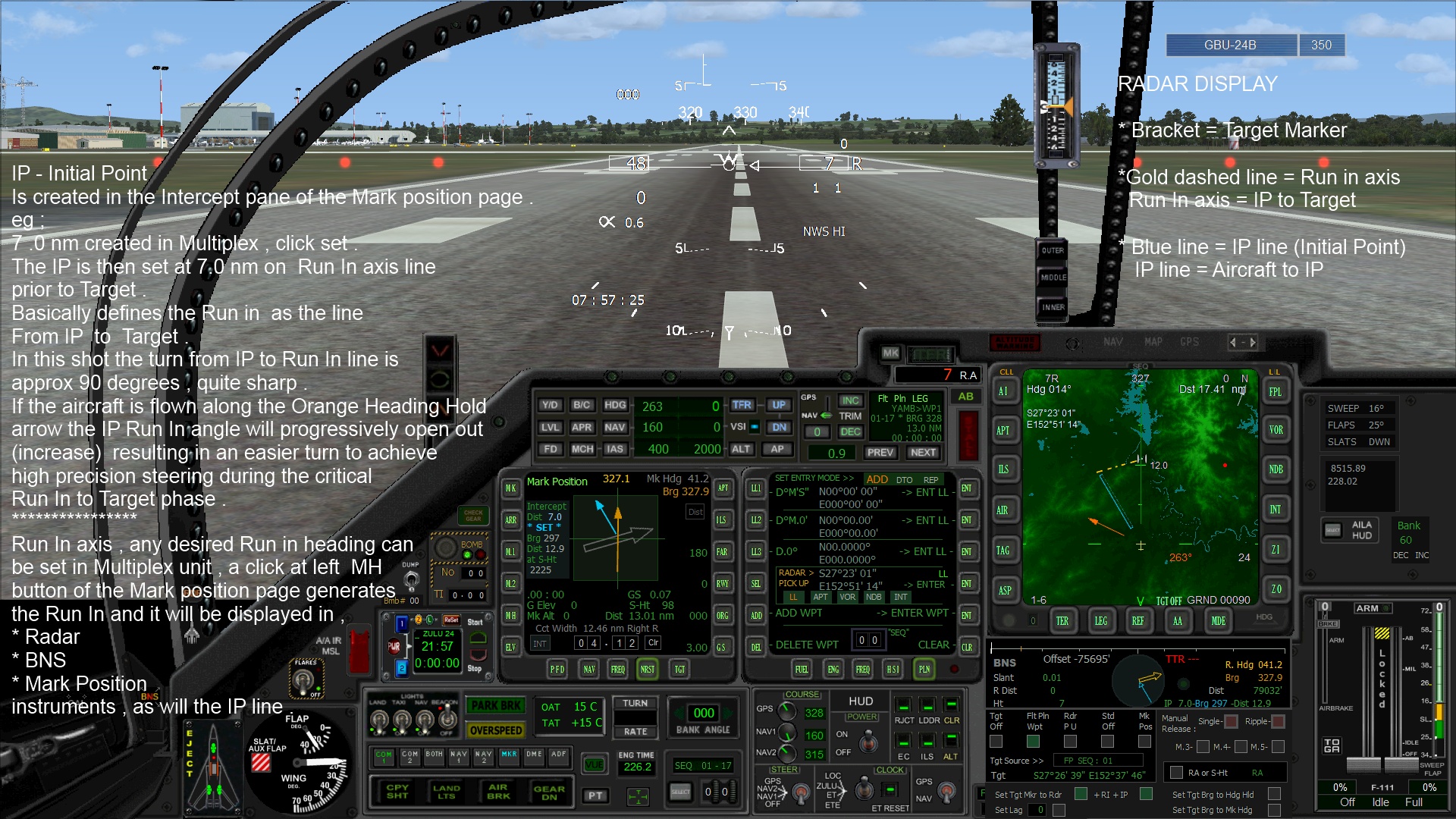

BNS # 5.jpg

Cheers
Karol
