MSFS24 Make body of water deeper

B

BendoHendo

Messages
2
Country
netherlands
Hello everyone,

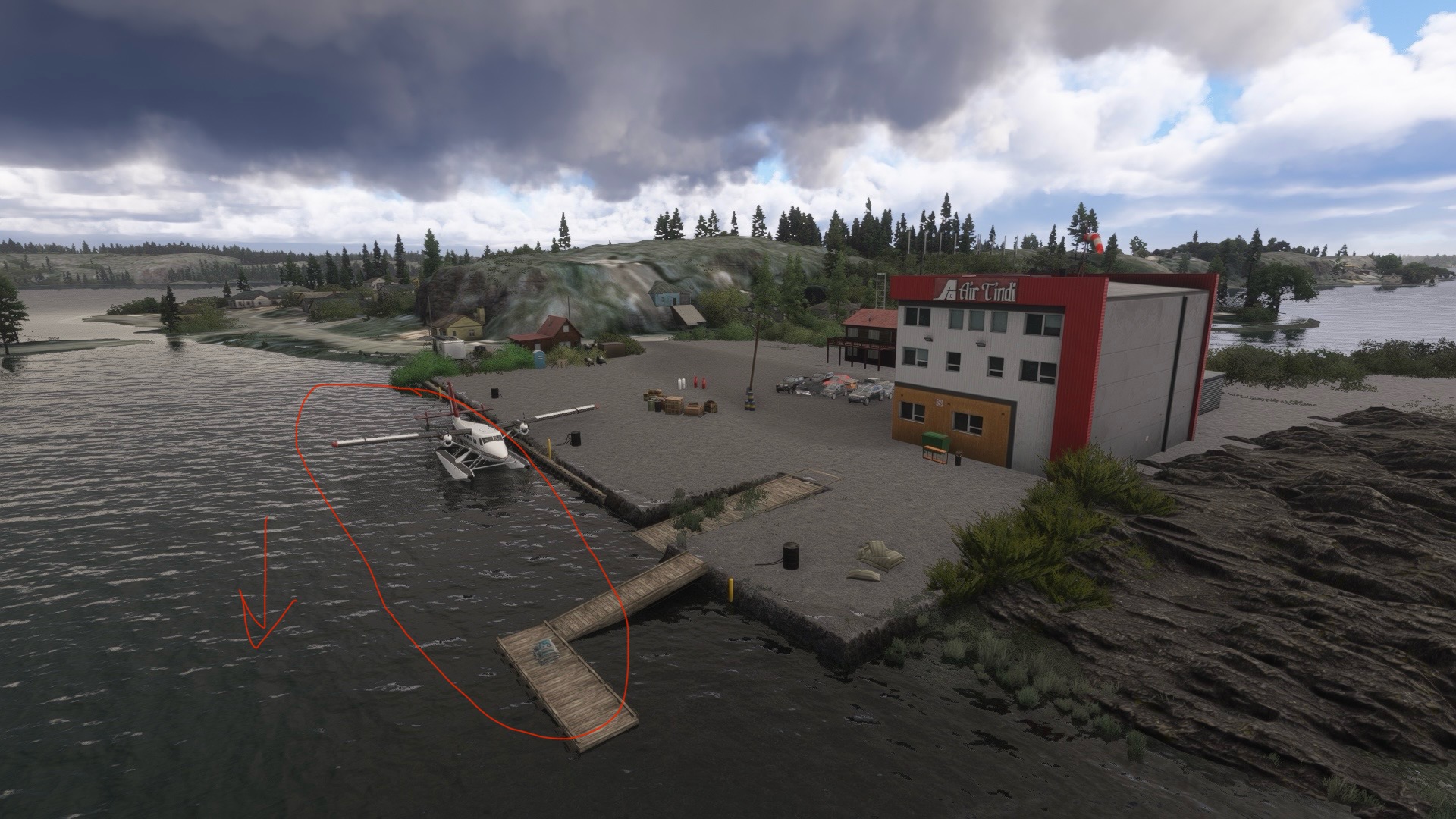

Currently I’m working on a seaplane base in MSFS 2024. The banks of the body of water / at the docks are too shallow, which beaches the parked floatplanes. Is there a way to deepen the banks of the water?



I tried it with polygons and rectangles to fix it, but when I try to lower the ground with a terraforming polygon, the water level stays ‘stuck’ with the lowered elevation.

Does anyone know what I can do to fix this? Thank you in advance.

BendoHendo

Hello:

MSFS DevMode Menu > Options > Ground > 'un-check' "Enable Water Flattening"; this must be done in each flight.

I have not yet found a way to set this display parameter permanently, so it must be done for each MSFS flight session.


IIUC, the current 3D world model for MSFS makes terrain flattens into water under water Polygons, and water is ~ 2 feet deep.

I have not yet tested if a water Apron can be placed higher / independent from a 'terrain' water polygon at a lower assigned altitude.


Aircraft Contact Points may be adjusted for less problematic draught depth and water floating and taxi behavior.

GaryGB

GaryGB said:
Hello:

MSFS DevMode Menu > Options > Ground > 'un-check' "Enable Water Flattening"; this must be done in each flight.

I have not yet found a way to set this display parameter permanently, so it must be done for each MSFS flight session.


IIUC, the current 3D world model for MSFS makes terrain flattens into water under water Polygons, and water is ~ 2 feet deep.

I have not yet tested if a water Apron can be placed higher / independent from a 'terrain' water polygon at a lower assigned altitude.


Aircraft Contact Points may be adjusted for less problematic draught depth and water floating and taxi behavior.

GaryGB
Click to expand...
Thank you for the tips. I will try that. Cheers
