P3D v4 mcx how to remove this?

Messages
3
Country
japan
I imported p3dv4 .mdl file into mcx development release version.
And didn't edit then export to .mdl file.

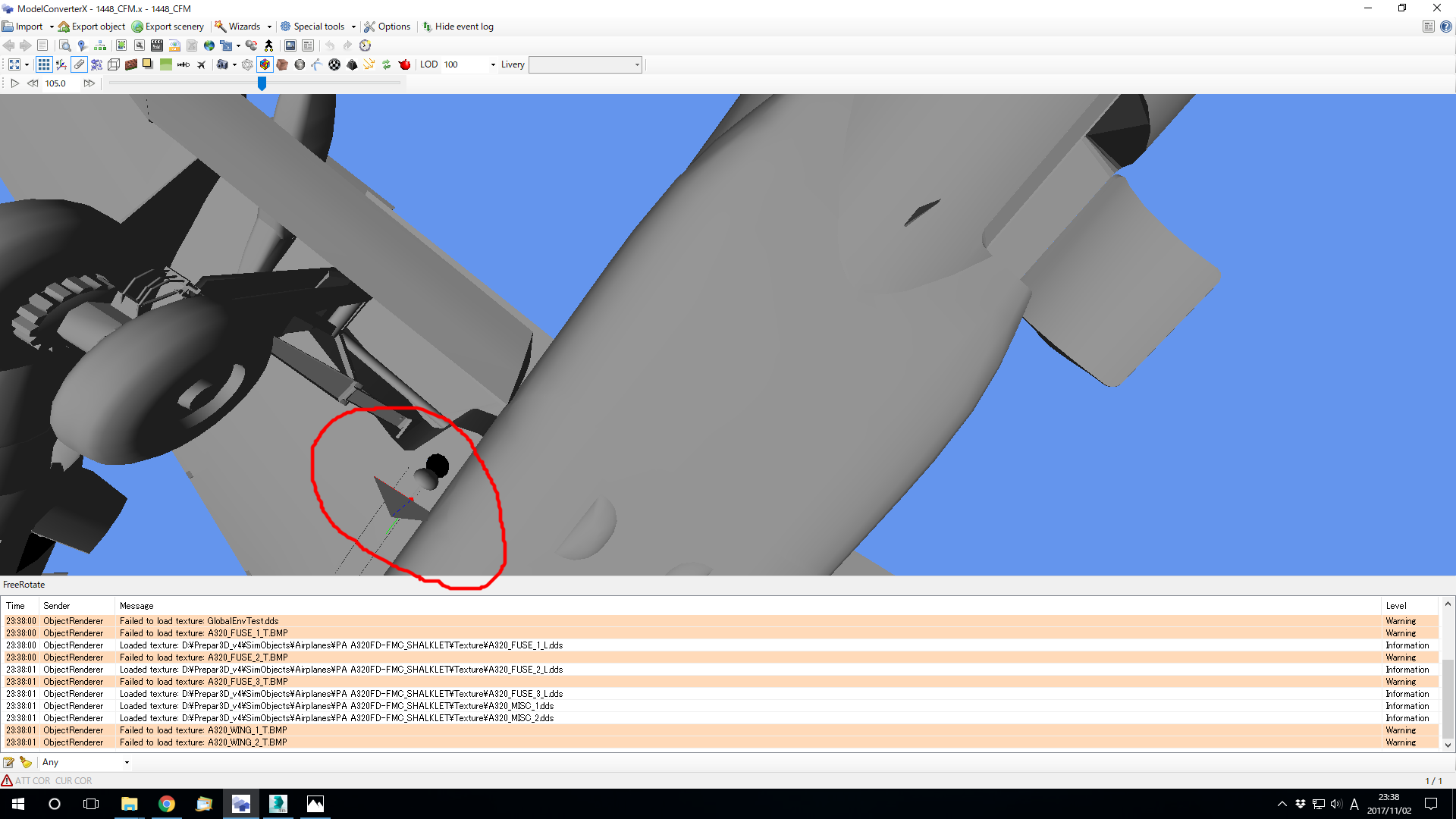

The new .mdl file have triangle surface in front of Light attach point.

Does anyone know how to remove that?
スクリーンショット 2017-11-02 23.38.37.png

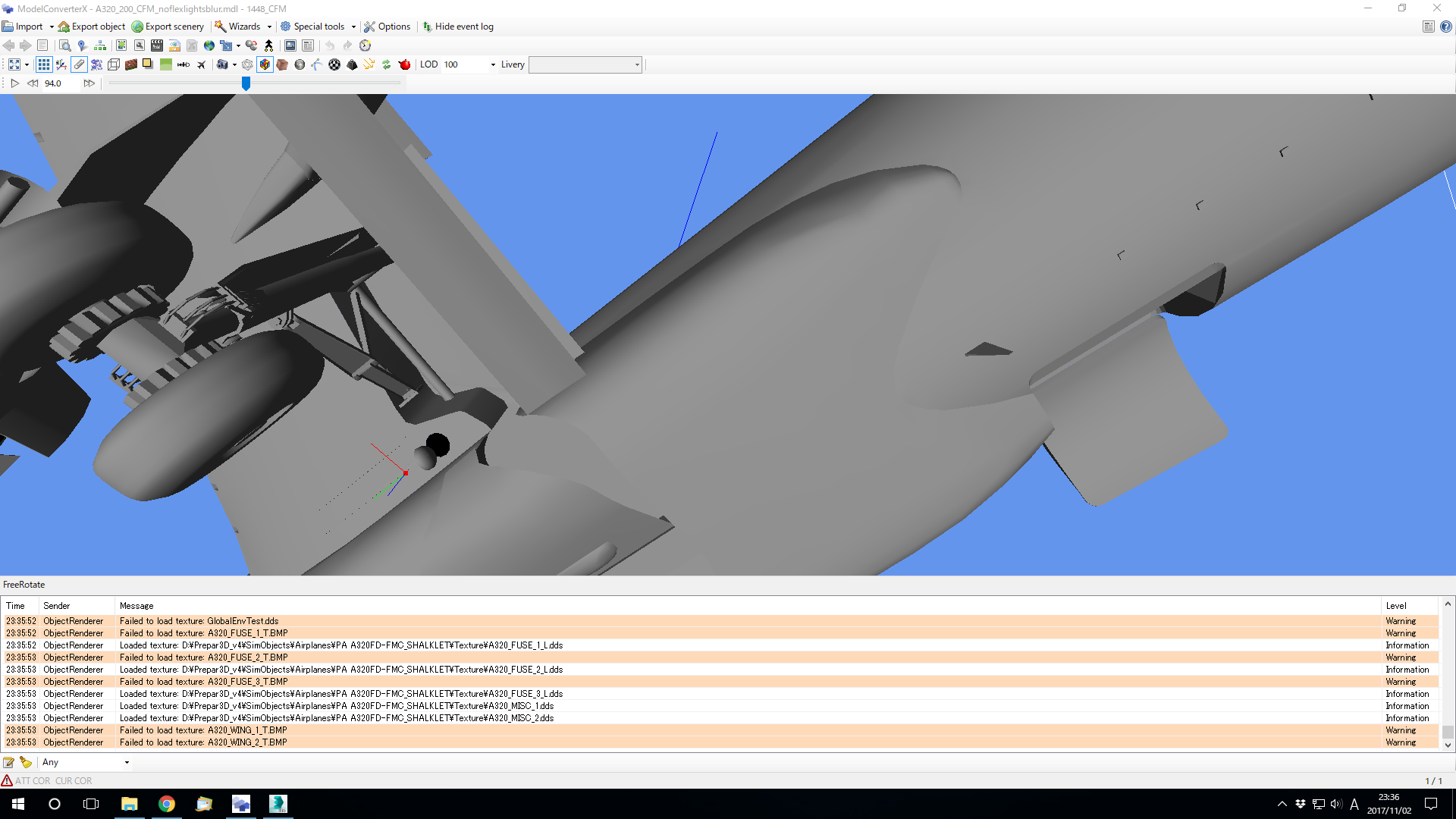

スクリーンショット 2017-11-02 23.36.56.png

You can only delete by material, so that would mean any polygon with that material is removed. But if this polygon has an unique material it would work.

I wonder where it comes from. Looks like the dummy geometry for attach points, but they should not be visible.

You can only delete by material, so that would mean any polygon with that material is removed. But if this polygon has an unique material it would work.

I wonder where it comes from. Looks like the dummy geometry for attach points, but they should not be visible.
Thanks for reply arno.
Try it.

Tapatalk を使用して私の X80 Pro (E3E9) から送信

I wonder where it comes from. Looks like the dummy geometry for attach points, but they should not be visible.
I think it is a light wash model intended to be mapped to a transparent texture.

I tried to make it invisible after that, but I could not.
However, it was able to solve it.
Working with the latest mcx, that triangle did not show up.
Arno Thank you. My problem is solved.
Thank you =rk= for replying.

Tapatalk を使用して私の X80 Pro (E3E9) から送信
