P3D v4 no transparancy in Models

Gonzales

Gonzales

Messages
63
Country
germany

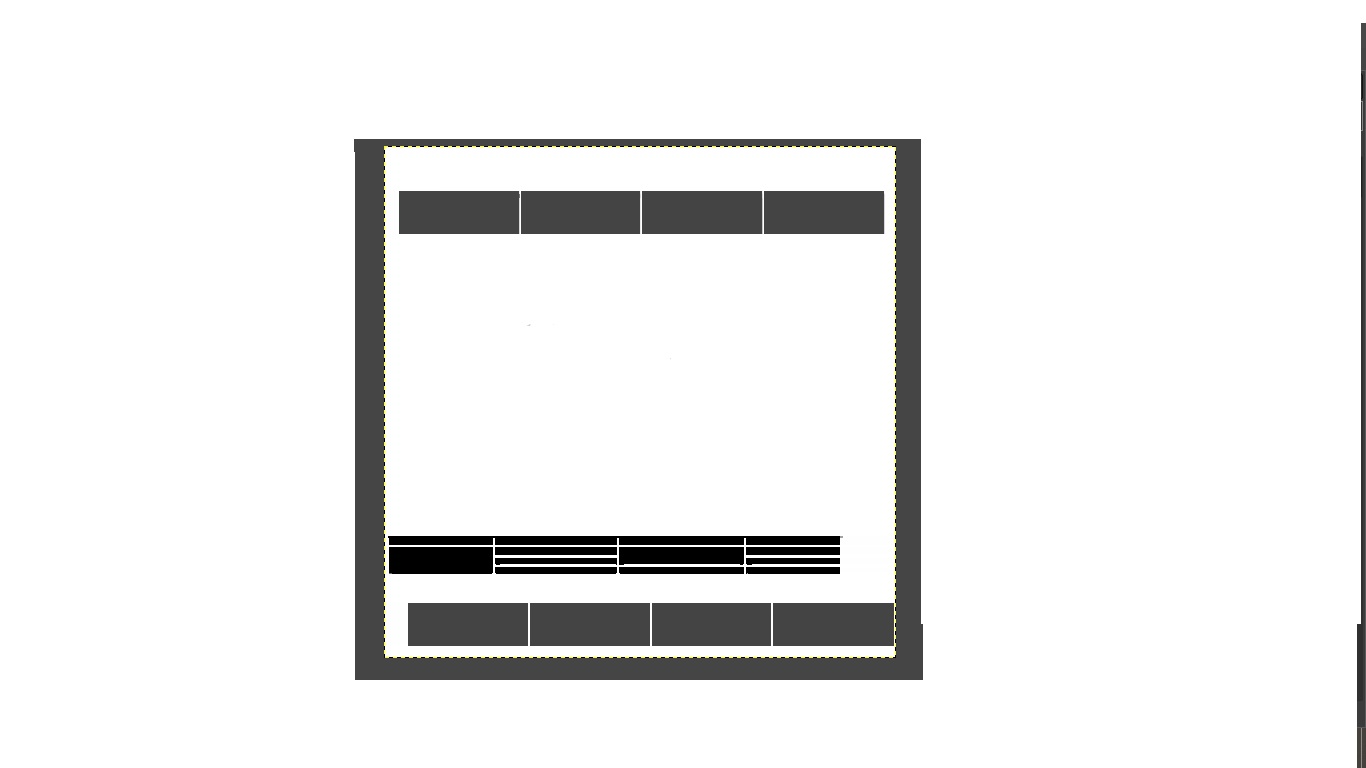

I have a Question. Like You can see i have a "Tower Building" :) There´s also a Railing around on Top Floors. But why they dont have transparent Parts. But i cant find a Way that it shows in the P3D. I create the File with GIMP and DXTBMP. I think it must be a Mistake during the Converting with the MCR. Maybe i must open a seperat Alpha Channel- dont know.
What could be happen?


Attachments

  • trans 1.jpg
    trans 1.jpg
    213.3 KB · Views: 180
  • trans 2.jpg
    trans 2.jpg
    102.9 KB · Views: 178
  • trans 3.jpg
    trans 3.jpg
    50.7 KB · Views: 160
What was the base format used (.png or something else)?

You might have better luck using Photoshop or GIMP. If using Photoshop, make sure to use tga format.

Its a.dds as Texture file. Create with DXTBMP and Gimp. What and where i must change the Settings in the Material Settings?

Short answer (but you should read the manual too):

1. Open the Material Editor.
2. On the left side click that texture.
3. On the right side use the drop down box at the top to select Set Default Transparent
4. Click the Apply button.
