"nothing to compile", sbuilderx, no solution seem to work

Voyage

Voyage

Messages
134
Country
sweden
Hey!

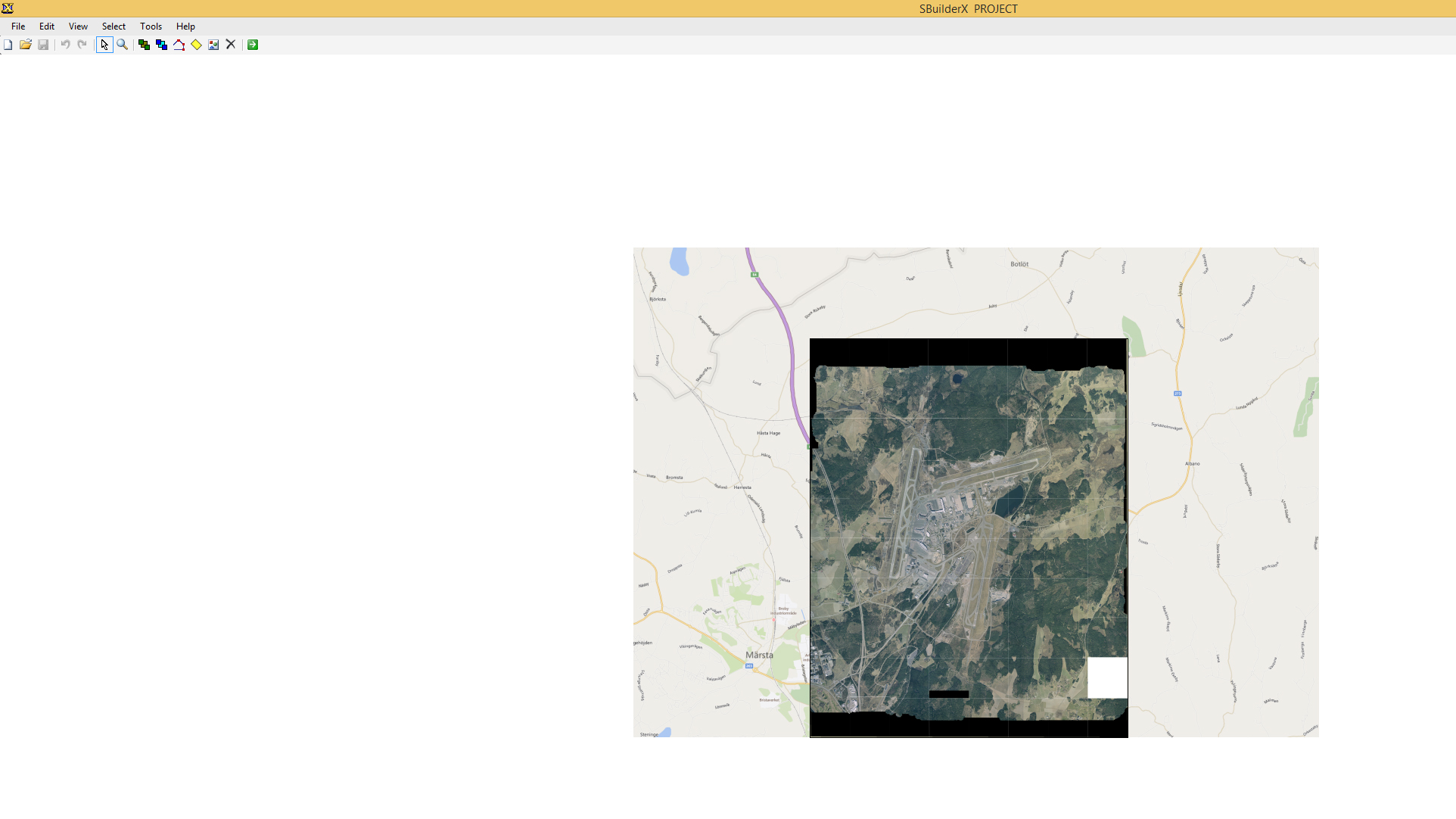

I can open my GeoTiff as Add map in SbuilderX, it projects correctly.
I "Select all", "Export to BGL" but then it says "Nothing to compile".

I search through the forums and apparently I'm not the first one having this problem but every solution they managed does not work for me:
1. check the decimal settings so they are correct. yes, done that
2. make sure the image inserted is namned Photo_xx, yes it is.
3. place it in the Work-folder, yes.

I compiled my ground tiles into a bigger file, as i wasn't sured if the image proportions would be a problem i also tried the same method on a single tile, but same problem there as well.

(I compiled them in to a bigger file just to see if it works, I'm aware there are holes in the image and gaps between the tiles at some places ;) )

Any Ideas?


Attachments

  • Untitled-1.jpg
    521.1 KB · Views: 464
SBuilder doesn't generate a .bgl. It will save the image and perhaps an associated .inf file in its directory.

You need to drag this .inf file over the resample.exe in your SDK/terrain kit to generate the .bgl.

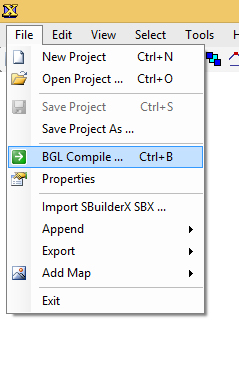

Now I get confused. In all tutorials I've seen about SbuilderX they compile a .bgl however I can't export it to be anything at all.

Another thing I've also been wondering is if I have 40 images with tiled aerial footage, do i need to insert them one and one or can i insert like it just did a huge compile of them all together from photoshop and then the program tiles them in the right size when exporting?


Attachments

  • Untitled-2.jpg
    80.2 KB · Views: 498
I was wrong. It does generate the BGL.

You haven't selected the tiles, hit CTRL+A to select all then export as bgl.
