FSXA Possible to rotate texture?

J

jfbrubaker1969

Messages
45
Country
us-pennsylvania

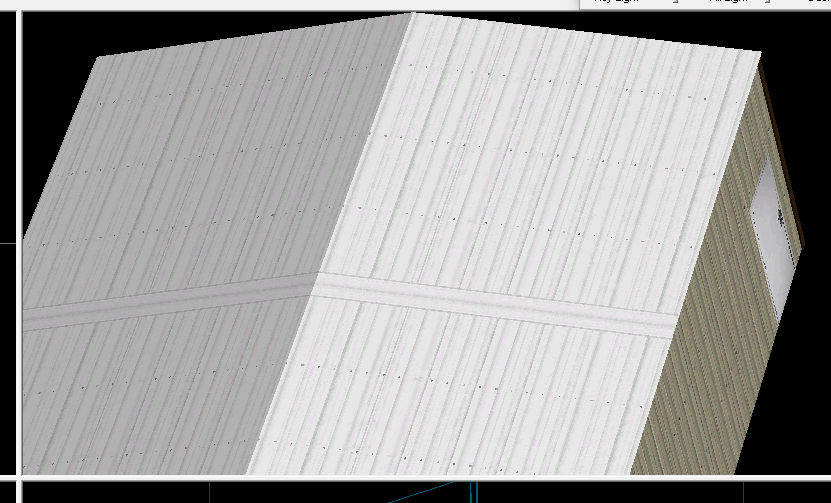

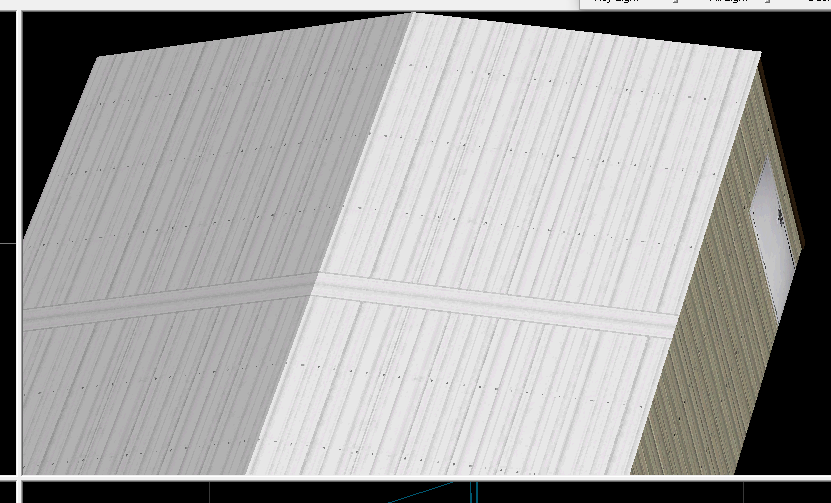

I am applying a texture to the roof of a hangar, but it's alignment is 90 degrees off what I was expecting. Is it possible to change the rotation of the texture without having to modify the texture file?
The strip in the middle should be running along the ridge of the roof.


Which software are you using? In Blender, you could just rotate the roofs UV Island by 90 degrees.

You are right, I didn't realize the category this was posted. Sorry. So you can just ignore my post, unfortunately I don't know anything about FSDS. Hope someone else can help you.

Best regards, Fabian

Changing the roof on the UV would change the position or placement locarion (u or x and v or y) on fhe texture. After the map has been created, there isn't a way for it to be modified/ changed unless it is recreated. That goes for any application, Blender, 3dMax, etc.

Last edited:
Yes, assuming the roof is a part by itself and not grouped to anything, select Transform, Rotate, select 'Axis only' and put 90 degrees in Y box. The texture will then apply based on the new axis direction.

Hello ; if you have many parts to texture, you will earn time if creating a new rotated texture file.
However, it's possible to modify the "cut" of your texture file: example wood with horizontal lines, and I need vertical lines
In FSDS (polygon mode) / part / texture / texture file properties: the default cut of your polygon appears (lower rectangle 1234 ) with 4 handles (active one is big black square).
Active each handle and move them to new green positions 1234 to get the final "cut" (as if you rotate red rectangle 1234).
!!! it's not allways easy to select handles ; sometimes it takes a long time to succeed in catching handles !!!


Attachments

  • default_cut.jpg
    27.3 KB · Views: 4
  • final_cut.jpg
    29.5 KB · Views: 4
  • moving_handles.jpg
    28.3 KB · Views: 4
