Resample.exe = Image header is corrupt

gouaill

gouaill

Messages
78
Country
canada
Hi All,
I'm doing a photo scenery with the same process that worked for me in the past: photo from Google produced by SbuilderX313, image corrected, watermask and blendmask created by Gimp2.8.14, and scenery compiled with resample.exe

Now I get on this project a resample error for the first of the 3 images : source 1 header is corrupt (...) can't compile data source.
The images are : BMP 24bits, about 288 meg in size each.
This is what I tryed:
- Exported images in TIFF from Gimp. This solved a same issue in the past, while the size of the images was not different. In this case, it could compile but didn't showed results in FSX and Annotator.
- Exported images in JPG and also in BMP 16 bits x1.
- Redone the whole process and split the scenery in two smaller sceneries covering the same area.
Nothing worked, same result.

This is bad because I spent much time in creating the watermask for a shore in the scenery and adjusting colors.

This is the .INF file, hoping someone can help!!! Thanks !

[Source]
Type = MultiSource
NumberOfSources = 3

[Source1]
Type = BMP
Layer = Imagery
SourceDir = "."
SourceFile = "Pont-Rouge_v5.BMP"
Variation = January, February, March, April, May, June, July, August, September, October, November, December
Channel_BlendMask = 2.0
Channel_LandWaterMask = 3.0
ulyMap = 46.8414071270059
ulxMap = -71.78466796875
xDim = 2.14576721191406E-05
yDim = 1.47016048423777E-05

[Source2]
Type = BMP
Layer = None
SourceDir = "."
SourceFile = "Blendmask.bmp"
SamplingMethod = Gaussian
ulyMap = 46.8414071270059
ulxMap = -71.78466796875
xDim = 2.14576721191406E-05
yDim = 1.47016048423777E-05

[Source3]
Type = BMP
Layer = None
SourceDir = "."
SourceFile = "Watermask.bmp"
SamplingMethod = Gaussian
ulyMap = 46.8414071270059
ulxMap = -71.78466796875
xDim = 2.14576721191406E-05
yDim = 1.47016048423777E-05


[Destination]
DestDir = "."
DestBaseFileName = "Pontrouge"
DestFileType = BGL
LOD = Auto
UseSourceDimensions = 1
CompressionQuality = 85

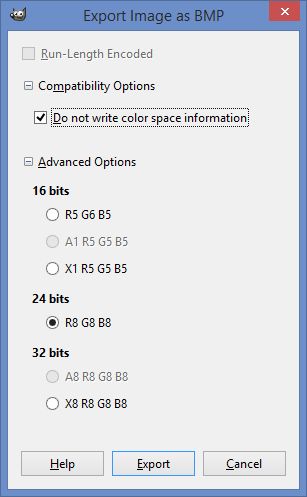

It is perhaps the color space information. See snapshot of the export parameters for the BMP-file i converted sucessfully today.

Wow! It worked ! I replaced seasons by All and exported the images from Gimp cliking Dot not overwrite colors into a BMP 24 bits. Great! Now I got an issue with the Watermask that does not remove water area from the image. I forgot to remove (put black) this water area from the Blendmask. I'm suspecting this is the issue.
Thanks very much Shaun, Dick and JdBerg for the help!
