skin animation problem: 'double vision'

Horst18519

Horst18519

Moderator
Resource contributor
Messages
2,385
Country
germany

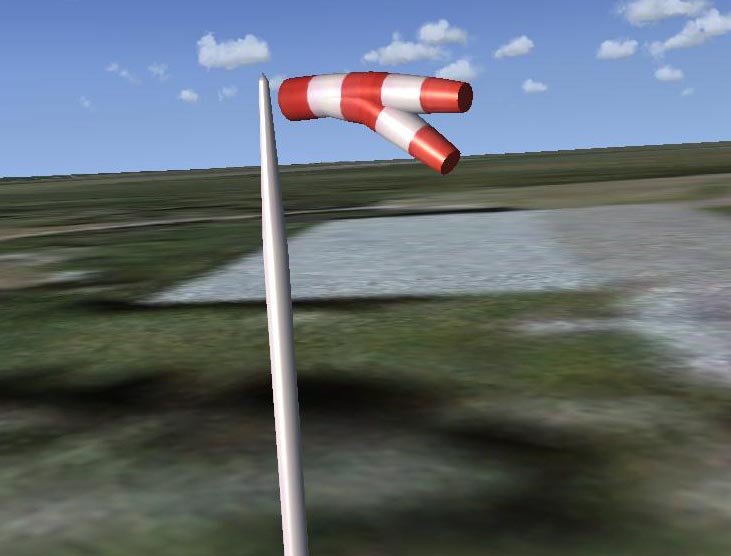

I created a small animated windsock with bones. It works nice, but in fsx the windsock appears twice. There are two windsocks (only the animated part) which move with a small delay.

Don't know what I did wrong. :confused:


Attachments

  • windsock1.JPG
    41.8 KB · Views: 508
Last edited:
Horst,

Possibly the problem is with the bone envelopes - hard to tell from the screen shot. You can try expanding the envelopes, or if you like send me your .gmax file and I'll see what I can find.

Thanks for the help. I'm afraid it's in Max.

But I'll try to enlarge the envelopes first.

I am afraid that I still couldn't find the problem.

The envelopes seem to be ok.

I created a complex person and tried to animate with bones, too. It works very nice in Max, but allthough using correct material, animation names (ambient,...) and exporting without problems the animations doesn't show at all in fsx.

Is there some trick I may have missed?

Ok, found out:

It seems fsx can't handle submaterials applied to skinned mesh.

Working on the other issue...

Hi Horst,

Did you ever get your skin and bones windsock working? In particular, does it respond to the speed and direction of the wind? If not, is this possible in a way that will work in FSX and P3D v3?

Thanks for any info you have on this,

You cannot tweak fix models with conditional display like wind speed or wind direction. The only way to do that would be using an external tool like SODE.
We sometimes use bone-animation windsocks that don't show the current wind or we use tweaked fs9 or fs8 models without bones.

Thanks much for this info. The issue is that the FS9 methods no longer work in P3D. Not that I want to undertake the project -- that's for sure, but I'm wondering what the options are for creating a high class functioning windsock that needs only one GUID with versions that work in FSX, P3D v2.5 and P3D v3.x
