P3D v3 [SOLVED] ADE will only compile GP objects

Frédéric Revol

Frédéric Revol

Messages
72
Country
qatar
Hi,

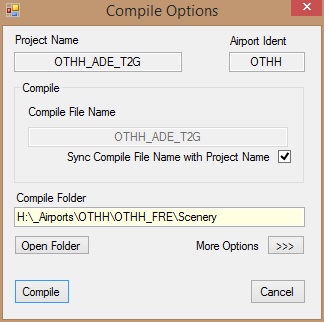

After some time away from scenery design, I started working on a new airport but get stuck as only the GP are being compiled. No error whatsoever reported, just that the Airport itself and library objects do not have a bgl file generated.

Any help? Thanks,

Fred

are you sending them to jon AT scruffyduck DOT co DOT uk ? That file size should be fine. It would be better however to post the project file here since someone else may be able to help as well

Frédéric Revol said:
Hi,

After some time away from scenery design, I started working on a new airport but get stuck as only the GP are being compiled. No error whatsoever reported, just that the Airport itself and library objects do not have a bgl file generated.

Any help? Thanks,

Fred
Click to expand...

I see multiple GP errors that is causing a problem.

Example of just one

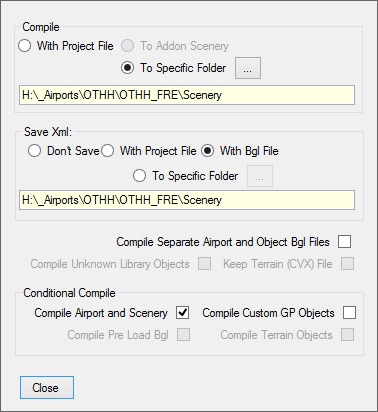

If you uncheck the Compile GP Custom Objects then both the airport scenery and the unknown library objects compile

Hi Jim,

If you uncheck the Compile GP Custom Objects then both the airport scenery and the unknown library objects compile
Click to expand...

I tried this also before posting and get no result, the BGL compiler does not even fire...

With regards to the GP, I had these messages in the past and did not have issues with the compiler.

Fred

The problem I see is that you are not pointing ADE to the SDK.

P33CompilerPath=H:\_SceneryDesign\Airport Design Editor
P33Shp2VecPath=H:\_SceneryDesign\Airport Design Editor

So it will not find any compilers for scenery

It compiles fine here

Hi Jon/all

I have changed the path to point directly to the SDK and again, same symptoms.



When I only ask to compile the airport and objects, nothing. When I ask to only compile the GP objects, it works...





Fred

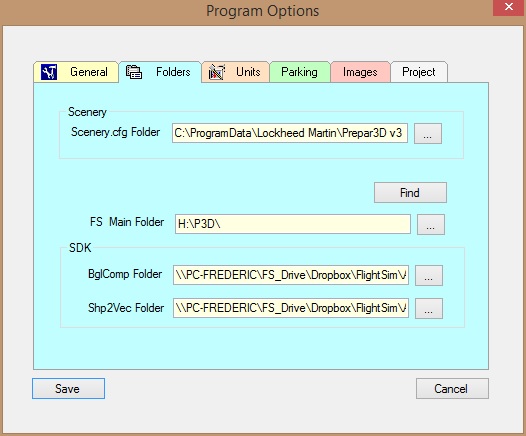

What are the full paths to BglComp and Shp2Vec - I can only see part of them. Also no drive letter. If the P3D v3 SDK is correctly installed then ADE should find the paths using the Find button in the Program Options > Folders Tab

Cracked it! Thanks all!

The issue was that the SDK was installed on a separate PC from the one I was working on. This was not a problem until now. I did install the SDK on the local PC and it now works like a charm.

Fred
