Texture problem

S

sk699

Messages
66
Country
estonia
Hello

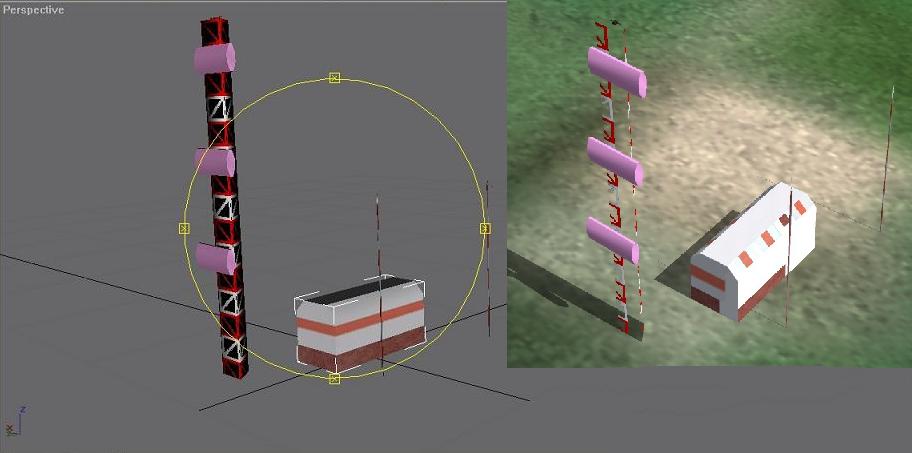

I have problem with textures showing up in FS
In gmax they seem to be fine
But in FS they turn out very wierd
I removed unwrap UWW but it didnt help
And I have doubleside on that mast texture and it is with alpha channel
I have created an antenna b4 using the same texture but this time it just aint working anymore


Attachments

  • problem.JPG
    39.1 KB · Views: 502
Oeh
I managed to get the textures on the house ok
But still the mast is looking the same as it is in the picture
Any suggestions what I should do?

Hi,

The inside polygons are probably not showing because the drawing order is wrong. In that case FS hides them to prevent bleedthrough problems.

About the textures, are you sure you mapped them correct? It seems they are shifted to one side a bit.

sk699 said:
Jep they are placed correctly
Click to expand...

Are this the only textures to show such an offset? It could very well be that the mipmap level in GMax is set low (which is the default setting) and then the textures are not shown very accurate in GMax. But that would affect all textures and not just this one.

sk699 said:
What do you mean by " the drawing order is wrong"?
Click to expand...

Have a look at this article. I try to explain the problem there:

http://www.scenerydesign.org/forum/showthread.php?t=492

I've also had this problem once, with the texture being displaced in FS. It was caused by the fact that I was using a texture with the wrong format in Gmax. This can happen when you use 32 bit texture in Gmax and then convert it to DXT for FS. You have to make shure that you only use 24 bit textures in Gmax (so without alpha channel). Then make shure that your UVW Unwrap is correct and then export the model and convert your 24 bit texture to DXT format.

Thomas

I have that problem on all models that have more than 2 sides and should have an alphha channel texture. I tried to create a ladder using a texture with lpha channel but i still have the same anomaly.

I found that. With a bit of experimenting things seem a bit better if you use 2 seperate 1-sided objects instead of one 2-sided one. You still sometimes get weird effects, but it seems to clear things up a bit.

I made a new antenna with 3 separate sides( used 3 boxes )
And tried to attatch the same texture to it.
Still ain't working in FS
Is here anybody who has a little time to check the gmax file and the texture file?
The same texture is working fine on another object.

Just attach your GMax file and texture to this thread (as a ZIP file) and I am sure someone will take a look (I will try to, if I have enough time).
