Tool boolean

Hola Tapi, cuando preguntes usa why no because, ese ingles¡, vi que al plano no lo convertistes en editable poly, y no se si se puede usar boolean con solo un plano sin geometria ninguna. de todas maneras tampoco se que es lo que quieres hacer. saludos
Maybe you didn't no convert to editable poly the plane, anyway explain a little more what you want achieve. greetings.

Thanks Bernard for the correction.
If you look closely at the video, you will see that this combertido editable poly.

Your video doesn't show what options you have chosen for the boolean op. That might explain a lot.

In my experience and knowledge the booleen tool starts to make weird things when the objects are not manifold (closed). Your extruded object has still the bottom open, try to close it with "cap holes". With the loft I have my doubts as well.

And yes; good luck! That's always needed for boolean operations.. :D

Kai

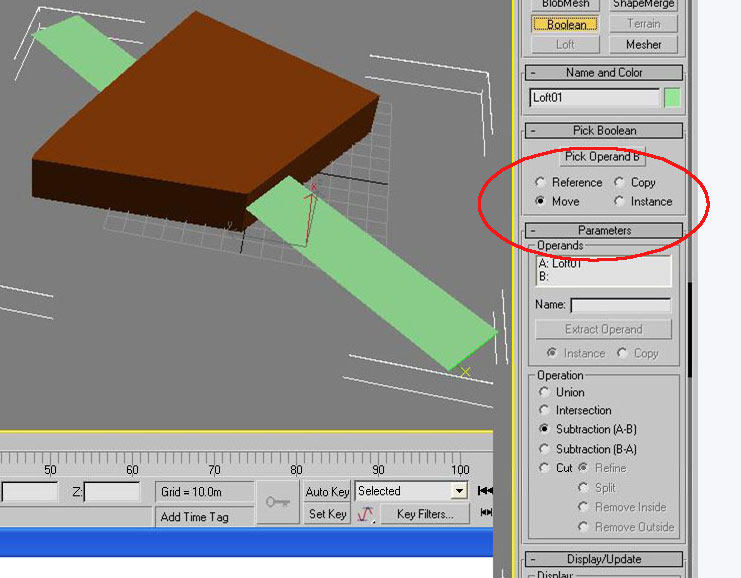

This is the configuration.

Kai503 said:
...the booleen tool starts to make weird things when the objects are not manifold (closed).
And yes; good luck! That's always needed for boolean operations.. :D

Kai
Click to expand...
You have answered to one of the problems I meet working with booleans, this left me the objects without interior planes. and I can only observe with astonishment.anyway it was a complex building and I can't see the problem.anyway thanks :D
tapi you can work with loft objects but this must be manifold as said above.

Change from "Move" to "Reference". Hope this helps!


Attachments

  • Bool.jpg
    72.4 KB · Views: 372
