FS2004 Tunnel in FS9 project. Is it possible?

jtanabodee

jtanabodee

Resource contributor
Messages
3,924
Country
thailand
Hi,
I am converting FSX to FS9. In FSX I can have tunnel under the taxiway. I was wondering if it works also in FS9. I tried that under lay airport but it didn't work out. No tunnel is visible.

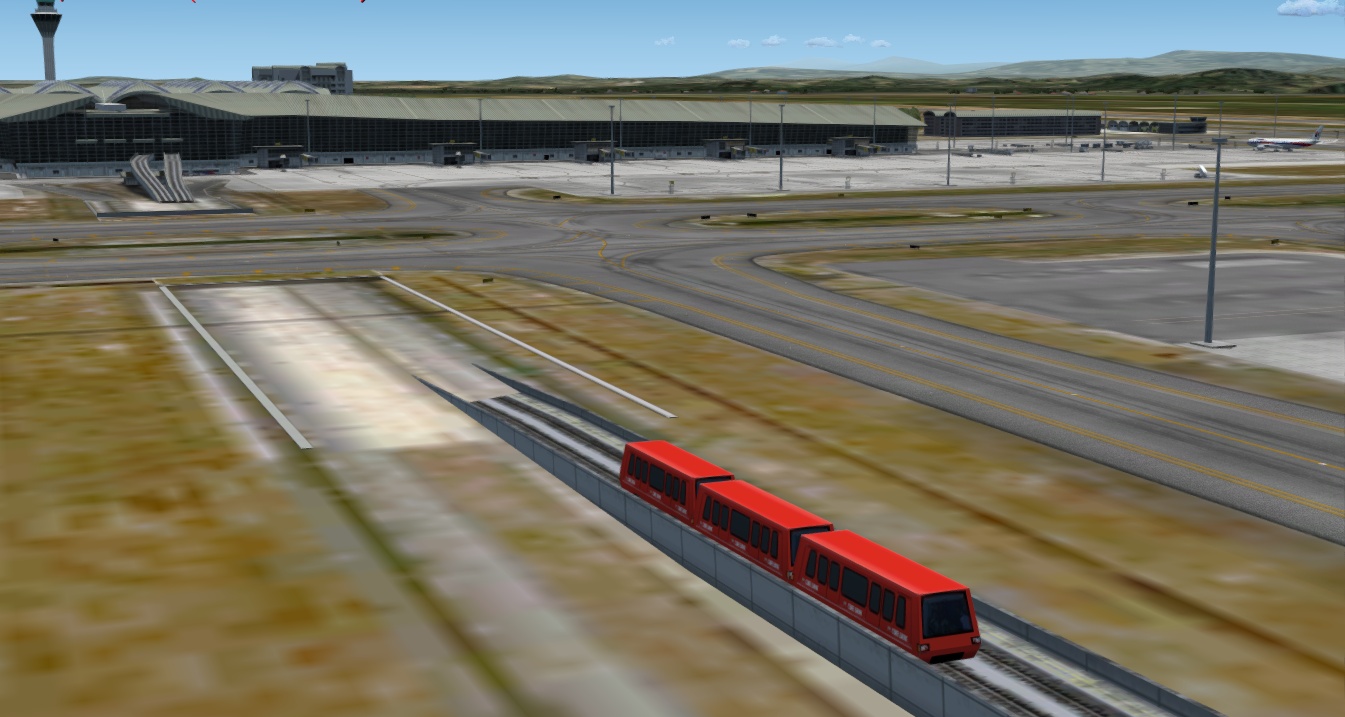

FSX version

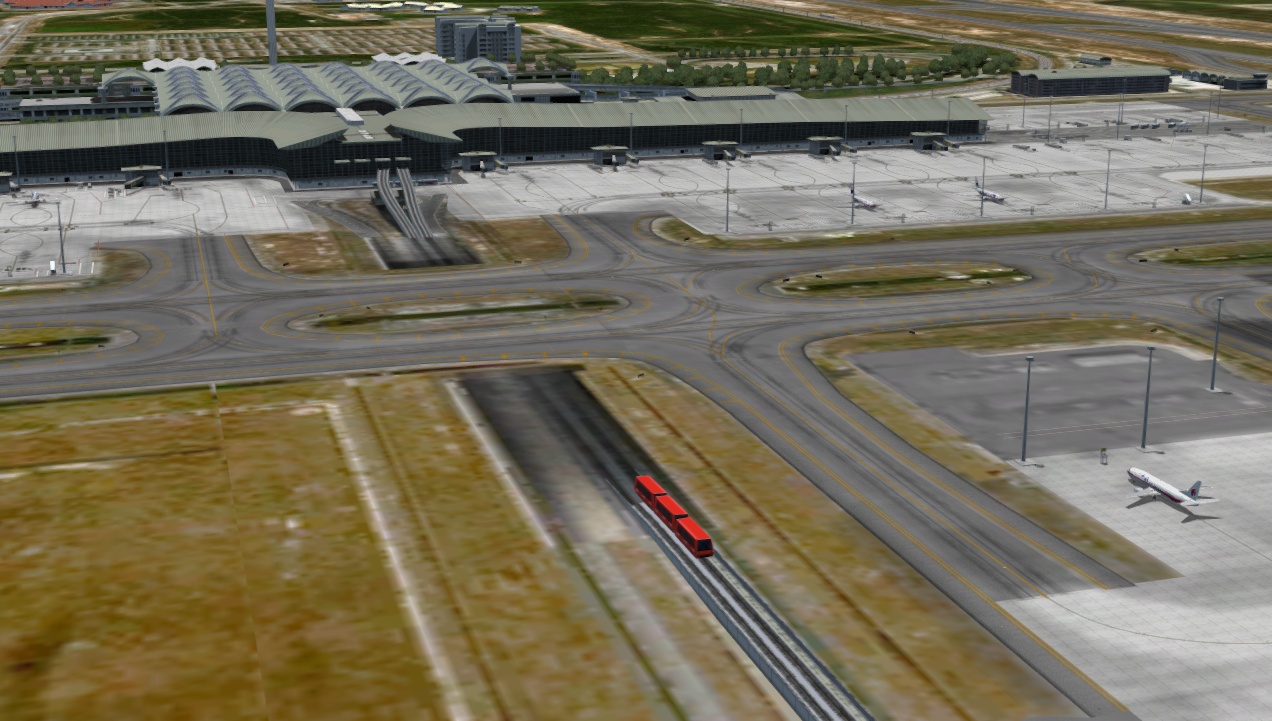

FS9 version


I think in FS2004 you would have to use a flatten to lower the ground and then fill the hole with a 3d model.

Sorry about that. I might forget to paste the link.
We have discussed this quite a lot. It might make you confuse with the discussion.
If you want to make a tunnel, you need to make another airport at different level of height. It is called overlay airport. The different height will be the tunnel floor and you need to make 3d object to cover the defect. It is quite difficult to do a perfect match to the rest of ground poly. If it is a bridge, it will be easier to do (the second link).
http://www.fsdeveloper.com/forum/th...ridging-over-road-highway.427493/#post-650741
http://www.fsdeveloper.com/forum/threads/tunnel-under-taxiway.427049/

I think it is possible but..............
I have to get through a lot of trouble.

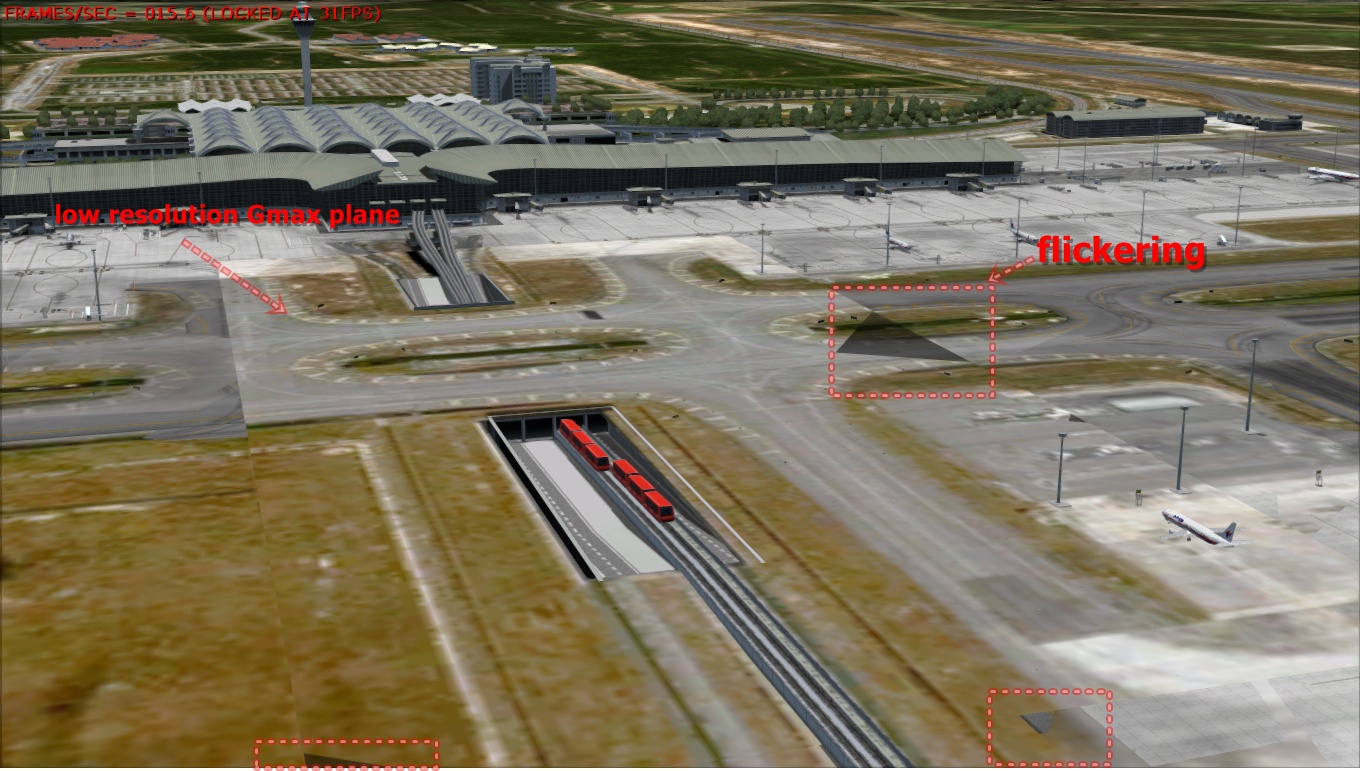

Please see this picture.

The terrain will be quite a big hole. I try to make terrain in Gmax and export to be FS9 mdl (not ground poly). It is quite nice to look. But there is a lot of flickering here and there. Terrain in FS9 cannot be a high resolution like FSX, so the defect is large and random jagged edges. I have to make lines and asphalt in FS9 mdl as well and it has to be layer by z-bias. I need to make a platform of the terrain to make the airplanes can move over it. OMG. It is quite hard to make a perfect match to the terrain defect.
I give up since it is not quite worth to do.

Some painting over the texture to make an illusion might be a better plan. The real tunnel might rock the boat more than anything. The complications of it does not worth the trouble.
