P3D v4 A few questions about 3D virtual cockpit

Stay away from the autopilot until you get at least the code for more basic cockpit controls right.

VNAV/LVL CHG is not easy to implement in XML.

Heretic said:
Stay away from the autopilot until you get at least the code for more basic cockpit controls right.

VNAV/LVL CHG is not easy to implement in XML.
Click to expand...

Haha, OK. But I wanna fly good.
VNAV is not work on this version of autopilot (in real). But LVLCHNG is need to realize. I think it's not hard, because we know thrust in climb mode, it's always constant and we can attach to thrust level (73% from 100 +- 3) stay only regulate vertical speed for maintain indicated airspeed.

Marwan Gharib said:
Hi , Don't make the Knob animation dependent on the IAS number but driven by an L:var that you have control of. for example this is my code for an Altitude target selection knob. the variable controlling the animation is (L:ALT_Knob, number) so when the user left clicks or uses mouse wheel down the following happen:
1- (>K:AP_ALT_VAR_DEC) so the actual selected altitude decreases.
2- (L:ALT_Knob, number) 5 - (>L:ALT_Knob, number) , So the animation variable decreases by 5 , However it also limited between 0 and 100 so if you keep decreasing and reach 0 it will cycle back to 100 . since animation variable is decreasing the corresponding key frames of animation will decrease (reverse animation) so for my knob it will continue to rotate counter clockwise regardless of the actual altitude value, and vice versa.


Code:
    <PartInfo>
    <Name>HA420_knob_alt</Name>
    <AnimLength>100</AnimLength>
    <Animation>
      <Parameter>
        <Code>
          (L:ALT_Knob, number)
        </Code>
      </Parameter>
    </Animation>
    <MouseRect>
      <Cursor>Hand</Cursor>
      <TooltipText>selected ALT %((A:AUTOPILOT ALTITUDE LOCK VAR,Feet))%!2.2f!</TooltipText>
      <MouseFlags>LeftSingle+RightSingle+WheelUp+WheelDown</MouseFlags>
      <CallbackCode>
        (M:Event) 'LeftSingle'  scmp 0 ==
        (M:Event) 'WheelDown'   scmp 0 == or
             if{ (&gt;K:AP_ALT_VAR_DEC)
                        (L:ALT_Knob, number) 5 - (>L:ALT_Knob, number)
                        (L:ALT_Knob, number) 99 &gt; if{ 0 (>L:ALT_Knob, number) }
                        (L:ALT_Knob, number) 0 &lt; if{ 99 (>L:ALT_Knob, number) }
                        }

        (M:Event) 'RightSingle' scmp 0 ==
        (M:Event) 'WheelUp'     scmp 0 == or
                                if{ (&gt;K:AP_ALT_VAR_INC)
                        (L:ALT_Knob, number) 5 + (>L:ALT_Knob, number)
                        (L:ALT_Knob, number) 99 &gt; if{ 0 (>L:ALT_Knob, number) }
                        (L:ALT_Knob, number) 0 &lt; if{ 99 (>L:ALT_Knob, number) }
                        }
        7 (>L:knbsound,bool)
      </CallbackCode>
    </MouseRect>
  </PartInfo>
Click to expand...


I made other knobs according to your example and they work fine. Thank you very much!

MrJam said:
Haha, OK. But I wanna fly good.
VNAV is not work on this version of autopilot (in real). But LVLCHNG is need to realize. I think it's not hard, because we know thrust in climb mode, it's always constant and we can attach to thrust level (73% from 100 +- 3) stay only regulate vertical speed for maintain indicated airspeed.
Click to expand...

That's also way beyond your capabilities at the moment.

Heretic said:
That's also way beyond your capabilities at the moment.
Click to expand...

You're right! But I try. At the moment I stopped at the custom animation autopilot button with according to the default action variable (events).
I can not understand how to combine them, so that the animation worked and the action was performed.

What is the problem? The double animation sometimes occurring when clicking the button? That's a bug in mouse rectangles with "release" conditions that has existed since FSX. Nothing you can do about it.

Heretic said:
What is the problem? The double animation sometimes occurring when clicking the button? That's a bug in mouse rectangles with "release" conditions that has existed since FSX. Nothing you can do about it.
Click to expand...

Really? Thanks again.
What about vertical speed switch? Why it doesn't work? For that switch I use AUTOPILOT VERTICAL HOLD, but it's not switching on VS mode.

There is no pure vertical speed hold by default. When clicking the button, in the clickspot code, you will need to engage AP altitude hold, set it to a very high or low value (100000 ft or 0 ft) and then engage vertical speed hold.

(Default VS Hold is basically LVL CHG with V/S mode engaged.)

It's strange. I remember a long time ago I was try to change 2d panel and add VS hold button and got good effect - if vs hold button not activated can't change vs speed. Maybe I'm confusing something. But how then to realize it? Need add some conditions to the custom switch? So that no ap speed hold switch is turning on, only when approaching selected altitude.
I think I understand, we need to add custom switch (like a L:vs_hold) with custom animation write custom gauge (like autopilot vertical hold) and add it to the custom switch to the modeldef.xml by CallbackCode like a C:AP:vs_hold. Yes?

Last edited:
Not quite. More complicated.

However, I'm getting tired of the constant explanations and my motivation to continue this discussion is weakening. I hope someone else will help you out.
Or search the forums, maybe there already is some code out there.

keep calm Bjoern, he/she still doesn't understand yet in mater what sim provide, he/she still dreaming ...

kalong said:
keep calm Bjoern, he/she still doesn't understand yet in mater what sim provide, he/she still dreaming ...
Click to expand...
(He). Haha, maybe.. Maybe you're right. I'm just want to fly on my favorite aircraft, which is haven't in the simulator, like most Soviet aircraft.

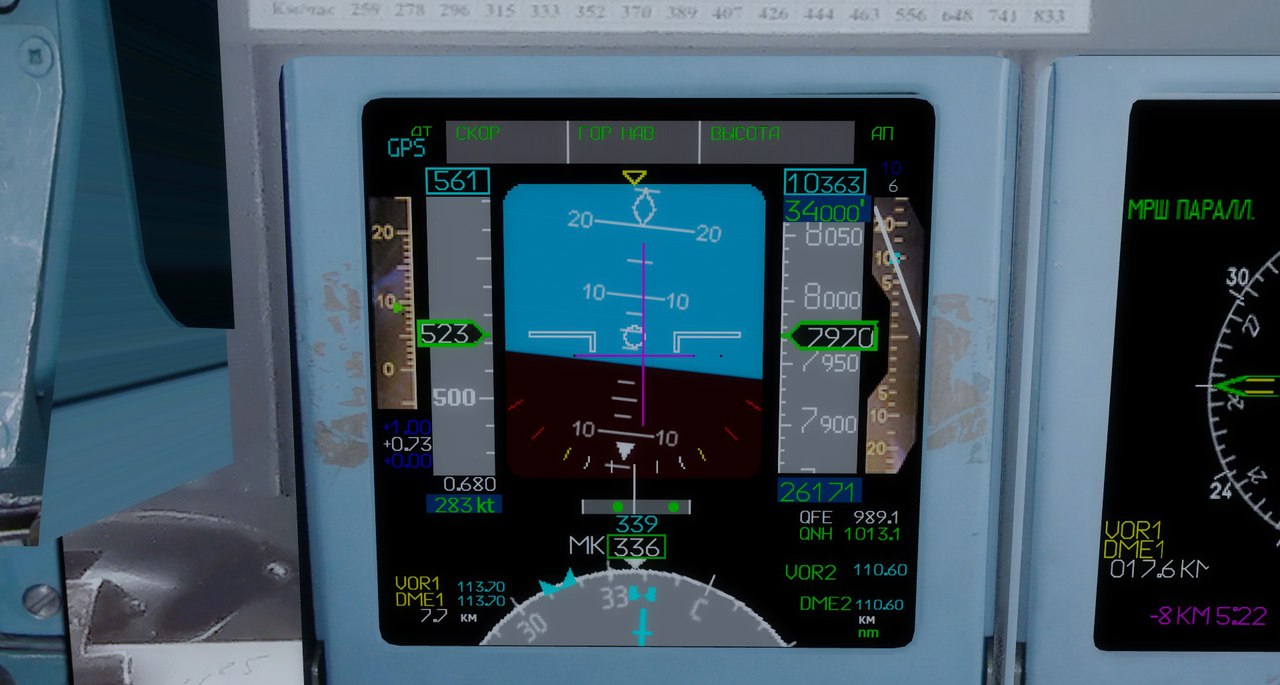

I'd like this PFD, for example, and try to do it more realistic.

kalong said:
keep calm Bjoern, he/she still doesn't understand yet in mater what sim provide, he/she still dreaming ...
Click to expand...

Yes, and that's what makes the discussion so bloody tedious and energy-consuming.


Anyway, I'm out of here.
Best of luck, Mr. Jam.

MrJam said:
(He). Haha, maybe.. Maybe you're right. I'm just want to fly on my favorite aircraft, which is haven't in the simulator, like most Soviet aircraft.
Click to expand...
there several things/could be many stuff that not provide by the sim, I call it sim limitation. if you want beyond this limitation, you'll need do your own code. it complicated, for autopilot is very complicated, and you can't do half part, you must do fully and whole autopilot by your own code.
