[arno]

Hi,
You could try to use the same bounding box from the ImportOGR step also in the SplitGrid step. That usually works for me.



[Greywander]

But there will be no splitting; the problem is for a 0.25x0.25° area, there are more than 10.000.000 trees; i will set the ImportOGR bounding box same as GRID bounding box to keep not to big files;
i used to create a batch of 16 tasks (0.25°x0.25°) for 1 degree square, now it will be 400 tasks ! And the batch generator only accept only LOD values ! and each run will reload the big shape file.
I will try ! (and no method to change destination file with batch variable ?)
Thanks



[Greywander]

And the problem of overwriting file is still present (i just tried as you said, and it create extra cell for "exiting" polygons. These files will be overwritenby more recents tasks .
The only solution is to move and rename file between each task.
Thanks



[arno]

Hi,

In general you need to use the same bounding box in ImportOGR and in SplitGrid if you want to ensure that you only have features inside that area. It doesn't matter that the bounding box is for a 0.25 degree area, while you split in 0.05 degree tiles.

You can only have issues with conflicting names if in different batch jobs you process the same tiles. But if you set the bounding boxes correctly that should never happen.



[Greywander]

No, the problem is shapefile polygones having a part outside ImportOGR area; there is an important side effect.
- if i "grid" the area they are not included in the area (nor the part inside the area, nor the part outside) and i have hole in my result.
- if the grid exclude them, they are not splitted and additional cells are created if their center is outside the area; but these additional cells/files can be overwritten by further jobs of the batch files with neighbours areas, or they can overwritten previous jobs neigbour areas.

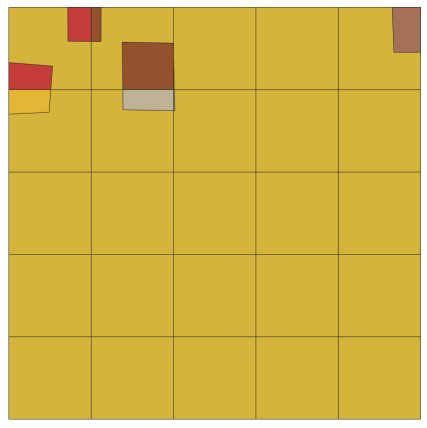

- if the grid is same area as ImportOGR area, they are splitted, their "inner" part is in the area and the parts out of area are in additional cells with same problems of overwrite. I tested and i obtain 6 part/tsc file; the target one is the bottom-center, others results from "exiting" polygons.
Thanks for very much the time you take to answer my ennoying questions.

Nb : i used the PlacePointsAlongLine function to place power lines pylone, but they were 90° mis-oriented; could you implement an offset angle (i think this question was submitted, but i didnt found answer)
-



[arno]

Can you show the script you used? Either you must have found a bug or there is a mistake in your script.



[Greywander]

There is the script.



[arno]

Thanks, I'll have a look.



[Greywander]

Thanks. Here is a minimal esri shapefile you can use with my script.



[arno]

Hi,

I had a look at the script with the test data you attached, but I'm not sure I can reproduce the issue.

When I run the script with that test data initially I see that the data is split in 6 grid cells, although with the bounding area in the ImportOGR step and the SplitGrid size of 0.25 you would only suspect 1 cell. But that is because some polygons stick out. If I put the same bounding area in the SplitGrid step as well, so that I becomes like the line below, it works fine here, I get one grid cell and only one TSC/TOC file is written.

SplitGrid|0.25|2.75;3.00;42.25;42.50

So to me it seems like it is behaving like it should. Or do you think I test it wrong?



[Greywander]

Wow, I never tested this combination ! You are true !
I tested

ImportOGR|D:\Geo\TEST.shp|@0@|NATURE|AUTODETECT
....
SplitGrid|0.05|@0@

and all is fine : the area is gridded with correct area, "inner" part of polygones are present, no new extra cells out of area, and batch mode is working !

Thank you very much.



[arno]

Your code should also work. You have a smaller split size, but also in that case nothing outside the bounding area should be given. Only you get 25 instead of 1 cell.



[Greywander]

Yes, it allows me to not obtain huges files.



[Greywander]

Hi Arno,
Thank you again for your marvellous software.
Some problems with scenproc 3 (with AFS2) :
There is part of my script :

ImportOGR|D:\Geo\VEG_FULL_REP.shp|@0@|NATURE|AUTODETECT
SplitGrid|0.05|@0@|NATURE="*"
...
PlacePointsInPolygon|NATURE="Forêt fermée de conifères"|0.0001;0.0001|1.0;1.0|String;type|tree|INHERITPARENTATTR
...
CreateAF2Plant|NATURE="Forêt fermée de conifères"|10;20|0|conifer
...
ExportTSC|D:\Geo\Scenproc\|Veg_

The first line of my batch file is :

"F:\Aerofly SF2\scenproc\scenProc.exe" "F:\Aerofly SF2\scenproc\Template_test.spc" /run /log "D:\Geo\0.log" 3;3.25;44;44.25

With scenproc 2, my 2 first sub-tile files were
Veg__N4400_E00300_N4403_E00303.tsc

<[file][][]
  <[tmsimulator_scenery_place][][]
    <[string8]   [type]          [object]>
    <[string8]   [sname]         [Veg__N4400_E00300_N4403_E00303]>
    <[string8]   [lname]         [Veg__N4400_E00300_N4403_E00303]>
    <[tmvector2d][position]      [3.025259 44.024991]>
    <[float64]   [size]          [5000.000000]>
    <[bool]      [autoheight]    [true]>
    <[string8]   [coordinate_system][lonlat]>
    <[tmsimulator_scenery_objecttmslist][objects][]
    >

    <[list_tmsimulator_scenery_cultivation][cultivation_files][]
      <[tmsimulator_scenery_cultivation] [element] [0]
        <[string8][filename] [Veg__N4400_E00300_N4403_E00303_cultivation]>
        <[string8][building_textures_folder][]>
        <[bool][auto_height][true]>
      >
    >
  >
>

and Veg__N4400_E00300_N4403_E00303_cultivation.toc

<[file][][Veg__N4400_E00300_N4403_E00303_cultivation]
  <[cultivation][][]
    <[string8][coordinate_system][lonlat]>
    <[list_plant][plant_list][]
      <[plant][element][0]
        <[vector3_float64][position][3.046680 44.028478 0.000000]>
        <[vector2_float32][height_range][10.000000 20.000000]>
        <[string8][group][conifer]>
        <[string8][species][]>
      >
      ......

That was fine...

With scenproc 3, my 2 first sub-tile files are
Veg__N4400_E00300_N4403_E00303.tsc

<[file][][]
  <[tmsimulator_scenery_place][][]
    <[string8]   [type]          [object]>
    <[string8]   [sname]         [Veg__N4400_E00300_N4403_E00303]>
    <[string8]   [lname]         [Veg__N4400_E00300_N4403_E00303]>
    <[tmvector2d][position]      [3.028368 44.024957]>
    <[float64]   [size]          [5000.000000]>
    <[bool]      [autoheight]    [true]>
    <[string8]   [coordinate_system][lonlat]>
    <[tmsimulator_scenery_objecttmslist][objects][]
    >

    <[list_tmsimulator_scenery_cultivation][cultivation_files][]
      <[tmsimulator_scenery_cultivation] [element] [0]
        <[string8][filename] [Veg__N4400_E00300_N4403_E00303_cultivation]>
        <[string8][building_textures_folder][]>
        <[bool][auto_height][true]>
      >
    >
  >
>

and Veg__N4400_E00300_N4403_E00303_cultivation.toc

<[file][][Veg__N4400_E00300_N4403_E00303_cultivation]
  <[cultivation][][]
    <[string8][coordinate_system][lonlat]>
    <[list_plant][plant_list][]
      <[plant][element][0]
        <[vector3_float64][position][3.046794 44.028174 0.000000]>
        <[vector2_float32][height_range][10.000000 20.000000]>
        <[string8][group][0]>
        <[string8][species][conifer]>
      >
.....

There is a small shift between the .tsc position :
3.025259 44.024991 (v2) as [3.028368 44.024957] (v3)
I noticed a user had problem with vegetation across landing way, it could be same problem.

The main problem is in the .toc
v2: <[string8][group][conifer]>
<[string8][species][]>
as
v3: <[string8][group][0]>
<[string8][species][conifer]>
This later make AFS2 unable to load scenery; the "clock"symbol freezes endless.

Thank you again.



[arno]

Hi,
I'll run soms tests here, sounds like you found a bug.



[arno]

Hi,

The altitude argument in the CreateAF2Plant step was missing in scenProc 3.0, I guess it was dropped by accident during some merging. I have stored it again, it will be in the next development release.



[Greywander]

Hi Arno,
I used the new PolygonToPoint function, and i have a problem. I wrote

PolygonToPoint|NATURE="Forêt fermée de conifères"|INSIDE|0.0001;0.0001|1.0;1.0|String;type|tree|hdg|INHERITPARENTATTR

and trees are grid placed; it seems there is a problem with random parameters .
If opened the toc file with AFS2 Editor :

In some place it works correctly (the below place is just at the left side of upper)

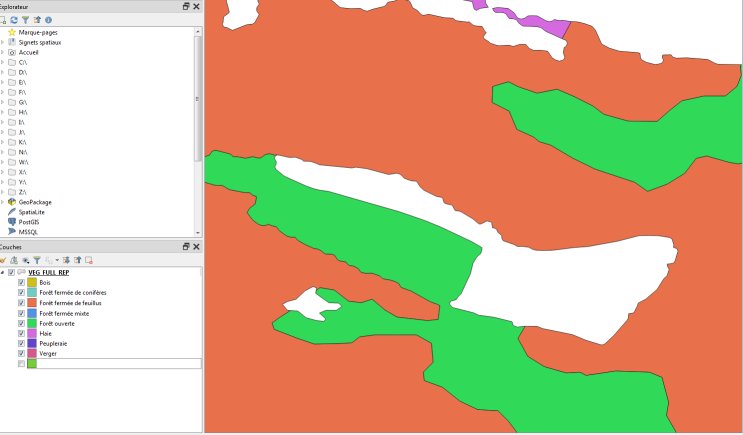

The Original polygons (QGIS) :

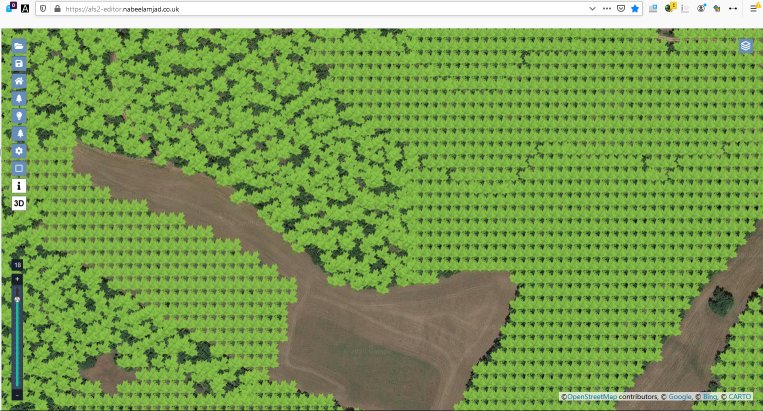

and the (heterogeneous) result :

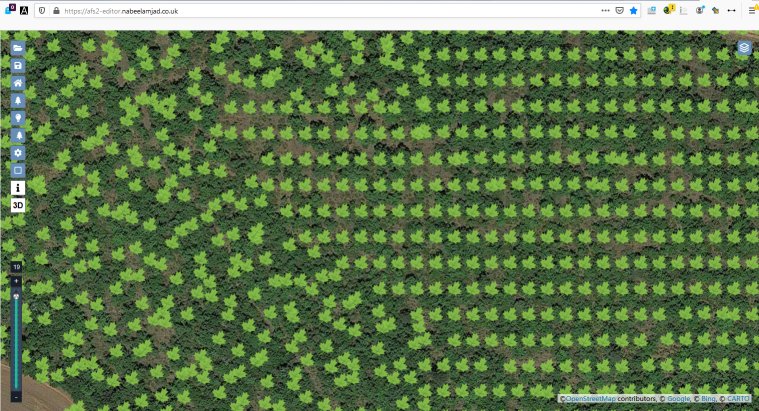

You see the left part of orange area above the field is gridded.
Sorry to submit you an other problem



[arno]

Hi,

I think I have seen this before. Do you only use one PolygonToPoint step in your script or are there multiple ones? In other words, did the area where the randomness didn't work come from the same step in the script or a different one?



[Greywander]

I used multiples :
The part of my script is

PolygonToPoint|NATURE="Forêt fermée de conifères"|INSIDE|0.0001;0.0001|1.0;1.0|String;type|tree|hdg|INHERITPARENTATTR
PolygonToPoint|NATURE="Forêt fermée de feuillus"|INSIDE|0.0001;0.0001|1.0;1.0|String;type|tree|hdg|INHERITPARENTATTR
PolygonToPoint|NATURE="Forêt fermée mixte"|INSIDE|0.0001;0.0001|1.0;1.0|String;type|tree|hdg|INHERITPARENTATTR
PolygonToPoint|NATURE="Forêt ouverte"|INSIDE|0.0001;0.0001|1.0;1.0|String;type|tree|hdg|INHERITPARENTATTR
PolygonToPoint|NATURE="Haie"|INSIDE|0.0001;0.0001|1.0;1.0|String;type|tree|hdg|INHERITPARENTATTR
PolygonToPoint|NATURE="Peupleraie"|INSIDE|0.0001;0.0001|1.0;1.0|String;type|tree|hdg|INHERITPARENTATTR
PolygonToPoint|NATURE="Verger"|INSIDE|0.00010;0.00010|1.0;1.0|String;type|tree|hdg|INHERITPARENTATTR
PolygonToPoint|NATURE="Zone arborée"|INSIDE|0.00025;0.00025|1.0;1.0|String;type|tree|hdg|INHERITPARENTATTR
PolygonToPoint|NATURE="Bois"|INSIDE|0.00015;0.00015|1.0;1.0|String;type|tree|hdg|INHERITPARENTATTR



[arno]

OK, but all with the same randomness. Are all trees that don't have randomness from the same filter or does that not matter?
