Is this even possible in MSFS? I have a texture applied to a rectangle that has an irregular outline, and therefore has an alpha channel to mask off the area that should be transparent. This works perfectly for the standard albedo texture. I can set the alpha mode to either blend or masking and it looks great in the sim during the day. The issue is that I also created an emissive texture for this object that displays at night. I tried an emissive texture with and without an alpha channel. Neither works. At night, either the "masked" area is black, or the entire emissive texture is black. Is there any configuration under which the visible texture is emissive at night and the masked off area is invisible?
-
Which the release of FS2020 we see an explosition of activity on the forun and of course we are very happy to see this. But having all questions about FS2020 in one forum becomes a bit messy. So therefore we would like to ask you all to use the following guidelines when posting your questions:
- Tag FS2020 specific questions with the MSFS2020 tag.
- Questions about making 3D assets can be posted in the 3D asset design forum. Either post them in the subforum of the modelling tool you use or in the general forum if they are general.
- Questions about aircraft design can be posted in the Aircraft design forum
- Questions about airport design can be posted in the FS2020 airport design forum. Once airport development tools have been updated for FS2020 you can post tool speciifc questions in the subforums of those tools as well of course.
- Questions about terrain design can be posted in the FS2020 terrain design forum.
- Questions about SimConnect can be posted in the SimConnect forum.
Any other question that is not specific to an aspect of development or tool can be posted in the General chat forum.
By following these guidelines we make sure that the forums remain easy to read for everybody and also that the right people can find your post to answer it.

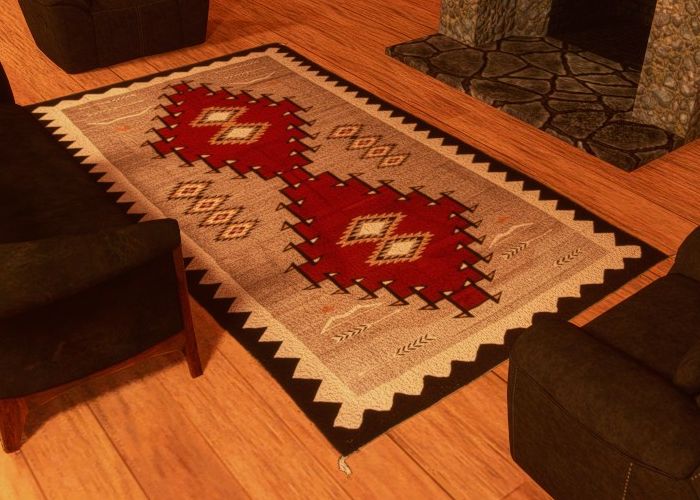

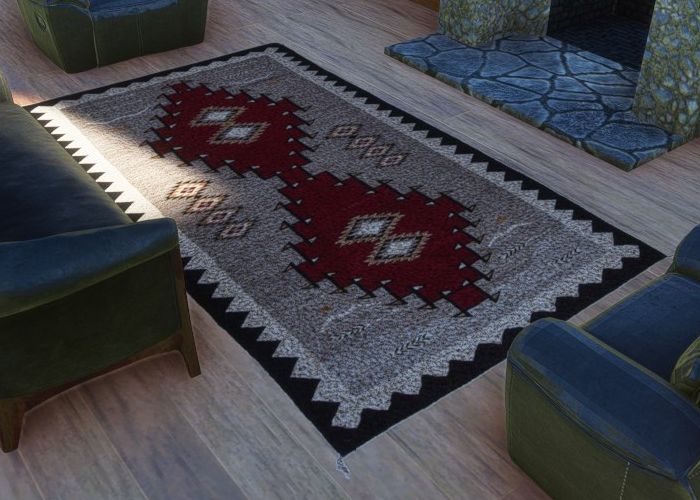

Success! I kept tinkering and finally landed on a combination that seems to work. I added the same alpha channel to the emissive texture that I used on the albedo texture, then configured the Blender material as MSFS Decal, then in the Shading Editor I made sure that both the alpha and emissive nodes were properly connected. The rug shown here is nothing but a flat plane with an image of a rug applied as a decal. The edges of the rug are uneven and there are tassels at the corners. So I had to use alpha masking to make this work. Now it works both day and night.
