Fokker D.21 fighter for FSX

Dutcheeseblend

Resource contributor
Hello guys,

I thought I'd introduce you to the Dutch Defender of may 1940. It's the Fokker D.21, a fighter with a Bristol Mercury engine. Used by the Dutch, Danish and Finnish airforces in WWII.
I'm creating this in Blender, for FSX. Hope you enjoy!




Last edited:

Dutcheeseblend

Resource contributor
Thanks!

Made this shot just to check if I'm still able to get a model into FS;)



I'm still working on the right shape of the fuselage.

Last edited:

Dutcheeseblend

Resource contributor
Been working on the cowling, in my opinion it's finished now.



Edit: just after this post, I discovered that the placement of the exhaust was not correct. It is corrected now, as you can see in the second pic.


Last edited:

Dutcheeseblend

Resource contributor

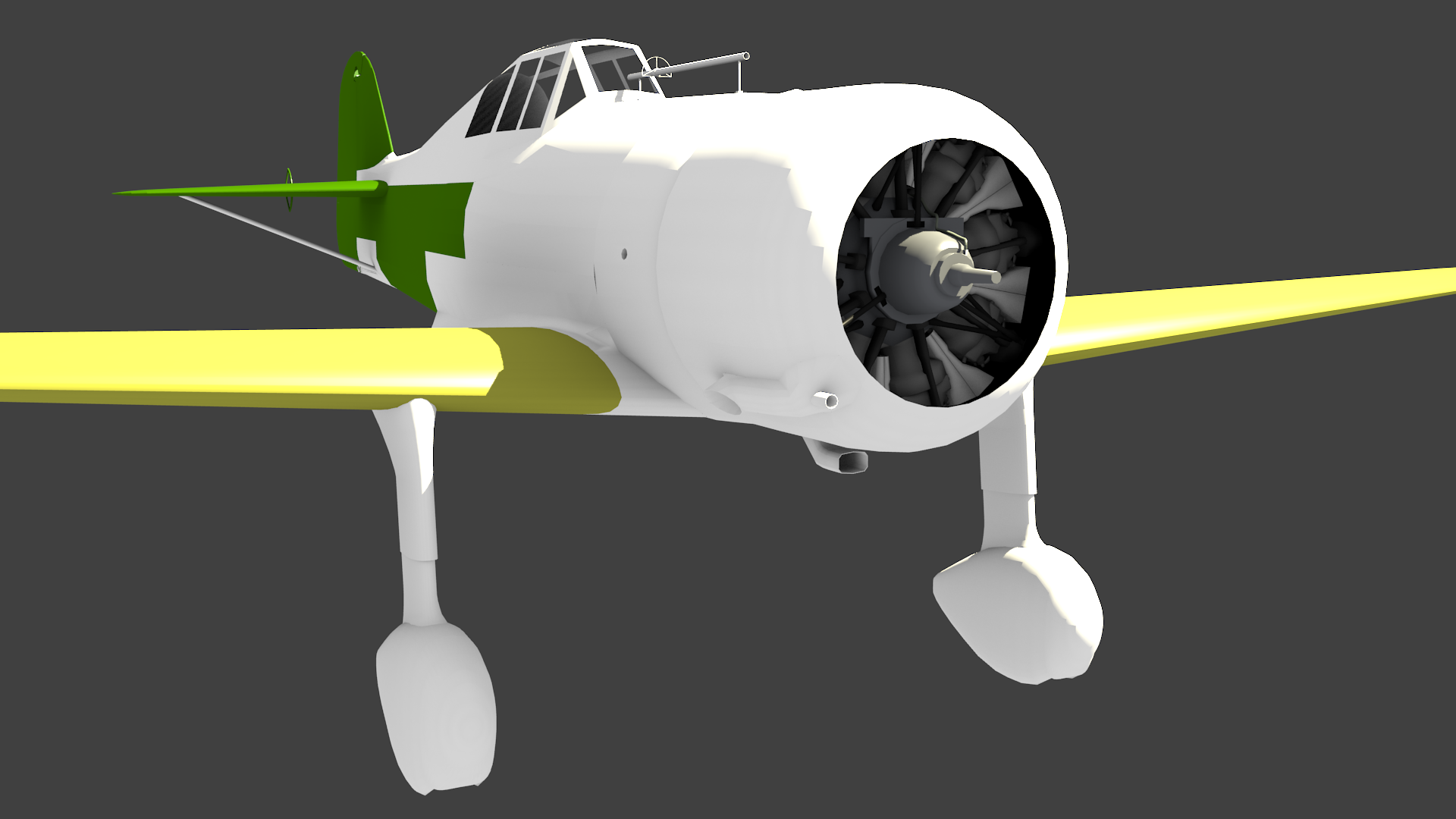

Update! This is what it's looking like now!





But, about the engine, is it good? Enough detail, or too much? What's your opinion?


Last edited:

Heretic

Resource contributor
Enough detail for me.

You could of course do an ultra-detailed engine, but then you'd have to implement a removable cowling for folks to marvel at it. :D


Dutcheeseblend

Resource contributor
Yeah, think this is OK! I'll have to optimize the engine a bit though.. And, texturing can do a lot. The Bristol Mercury VIII cooling fins are to fine to model for FS, so that could be done using some texturing.

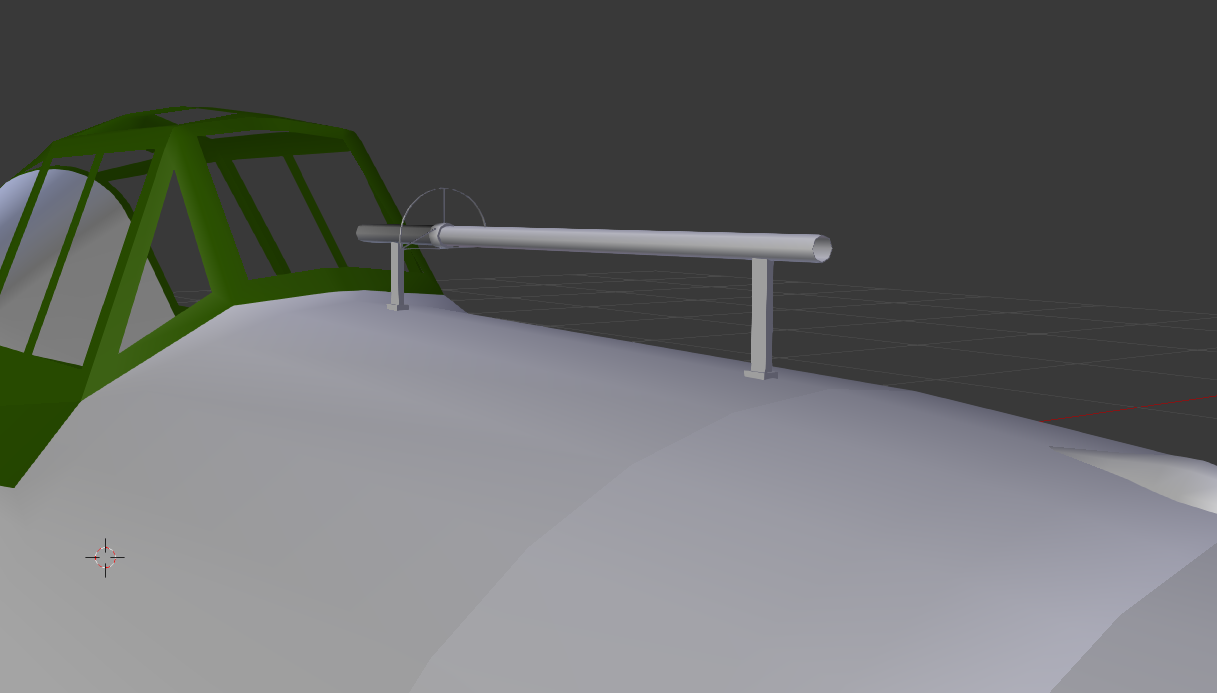

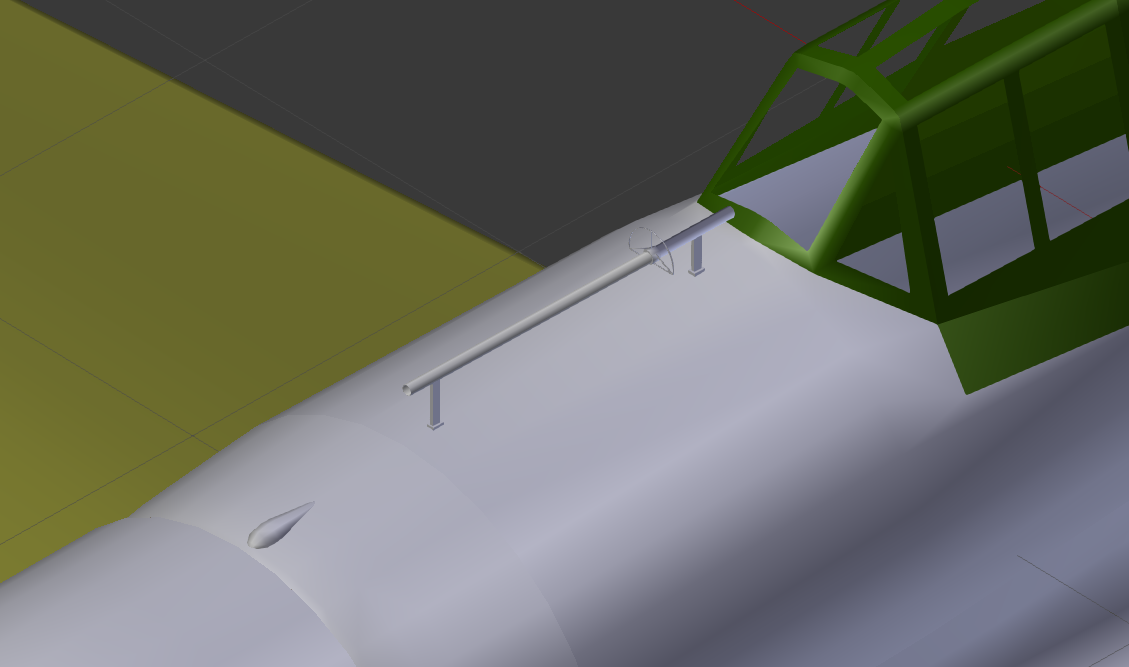

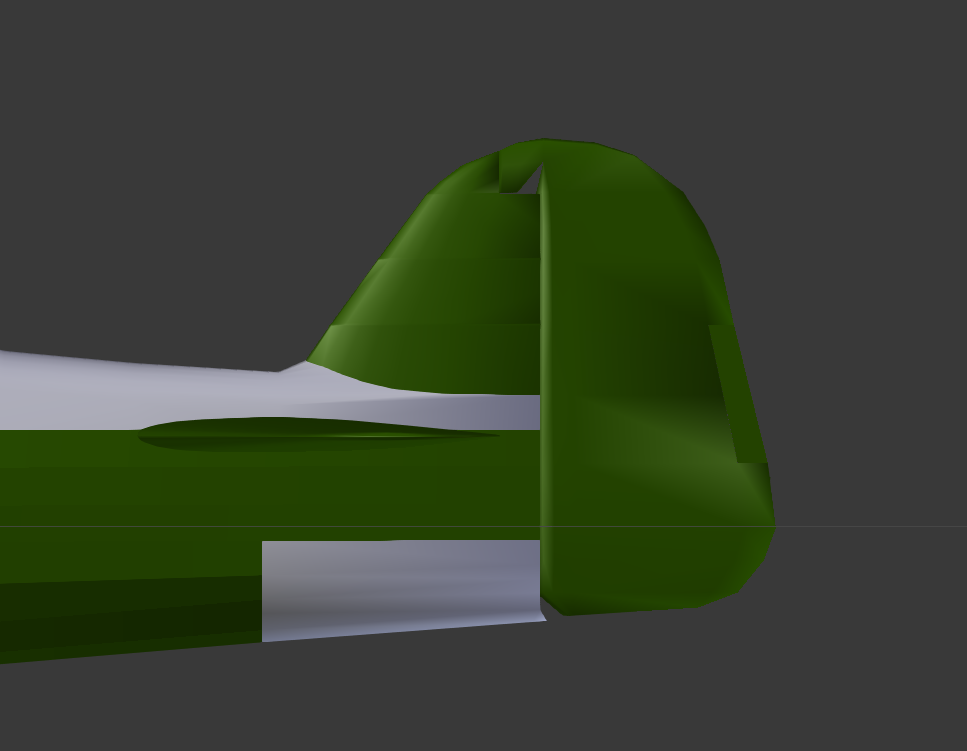

Update for today! I added the Goertz-gunsight, as used on the Dutch Fokkers. Furthermore, I edited the rudder.


Attachments

  • gunsight_01.PNG
    209.2 KB · Views: 673
  • gunsight_02.PNG
    127.6 KB · Views: 766
  • tail02.PNG
    90.1 KB · Views: 724
Last edited:

Dutcheeseblend

Resource contributor
Thanks:D

And there's an update!

I added the wheel struts, wheel caps and did some detail at the tail control surfaces (trimtabs, though not visible here, hinges and struts).

Greetzz!


Attachments

  • CaptureNwT.PNG
    140.9 KB · Views: 688
  • FokD12pr3.PNG
    131.3 KB · Views: 660
  • FokD12pr4.PNG
    117.2 KB · Views: 721
  • untitled1.png
    304.9 KB · Views: 746
  • wheelstrut.PNG
    80.9 KB · Views: 705
Last edited:

Dutcheeseblend

Resource contributor

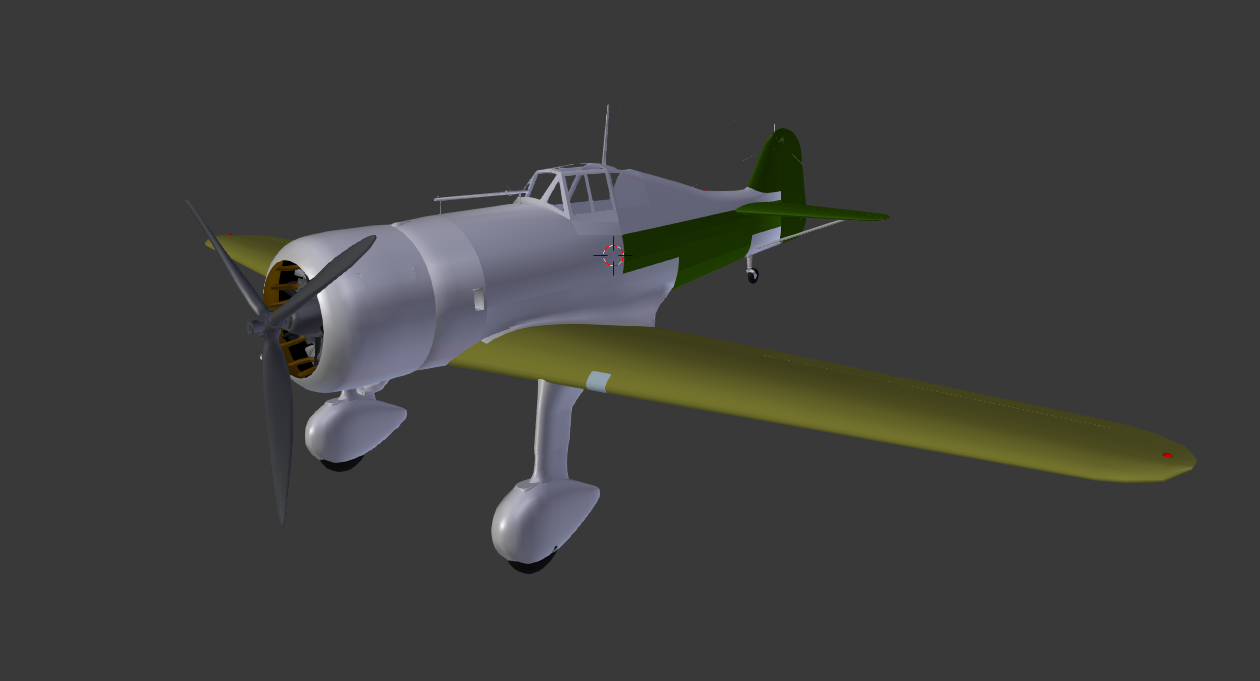

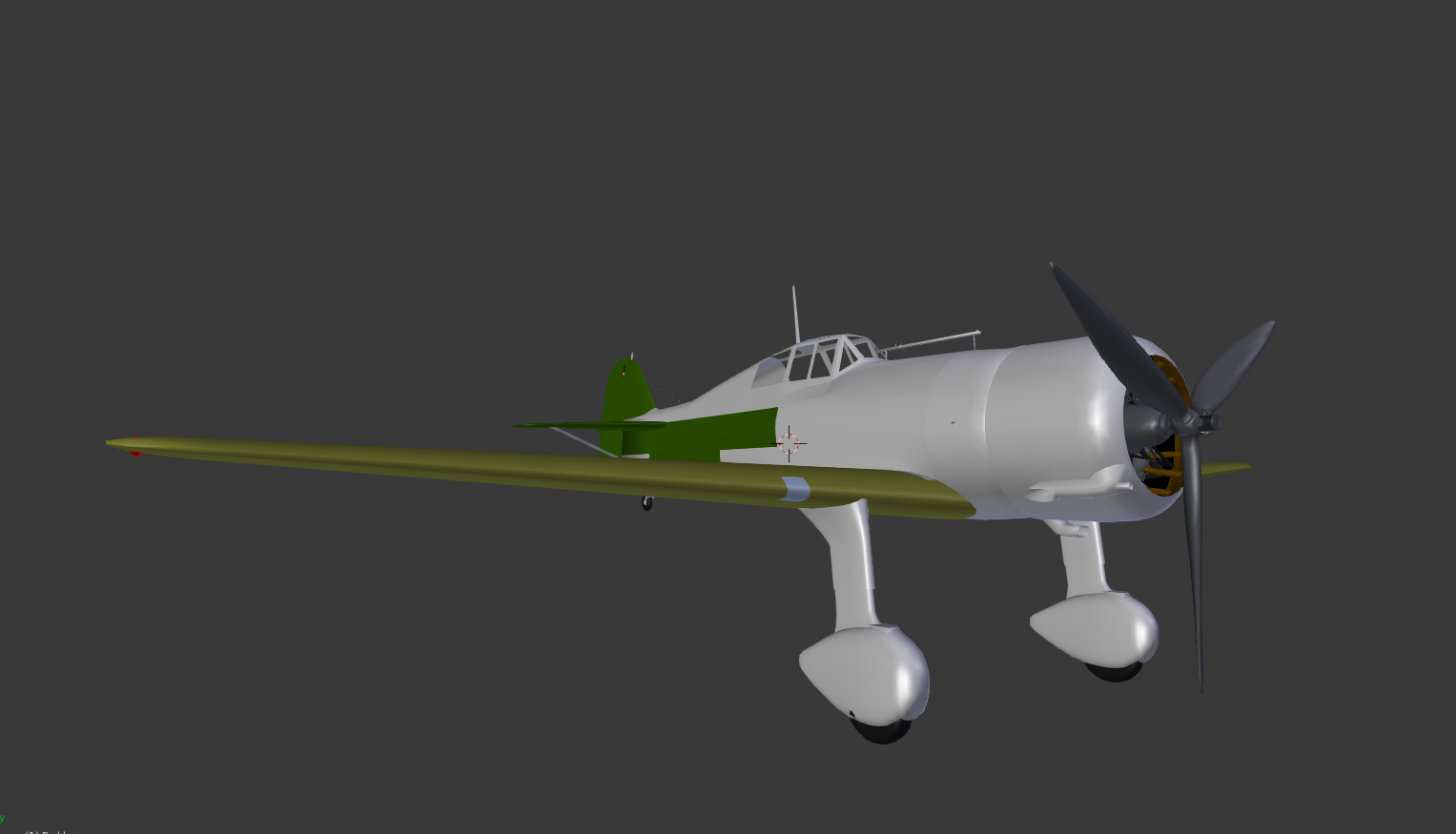

Finally another update!
I added:
- Flaps
- Propellor
- Lights
- Trimtabs on the ailerons
- Tailwheel and main wheels

The project is looking better now, the exterior is almost finished now.
I will add interior after modelling of the internal model.


Attachments

  • persp_upd_04.PNG
    158.2 KB · Views: 710
  • persp_upd_01.PNG
    151.8 KB · Views: 750
  • flaps_upd_02.PNG
    30.8 KB · Views: 692
  • tail_upd_03.PNG
    174.4 KB · Views: 718

Dutcheeseblend

Resource contributor

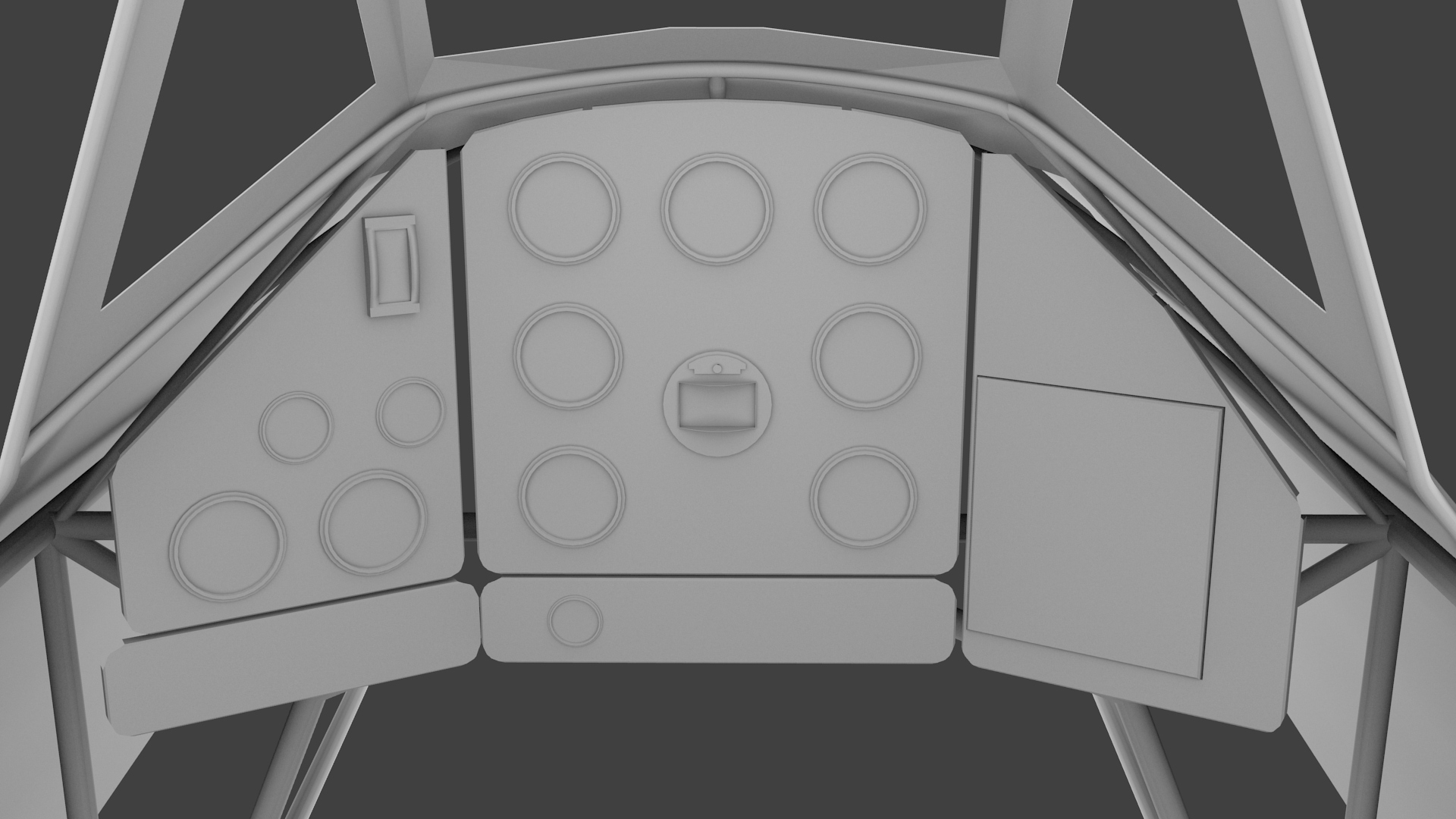

The last days, I've been working on the interior. The frame of tubes was made first, after that the panel, still empty.


Attachments

  • int_cock_01.PNG
    188.3 KB · Views: 666
  • int_cock_02.PNG
    145.8 KB · Views: 739
  • int_pan_03.png
    929.7 KB · Views: 625

Dutcheeseblend

Resource contributor
Thanks:)!

I found some time to add the majority of the gauges this night! After finishing the main panel, I will pay attention to the left side of the cockpit, with ao the throttle quadrant.

Enjoy!


Attachments

  • int_pan_04.png
    951.4 KB · Views: 636

Dutcheeseblend

Resource contributor

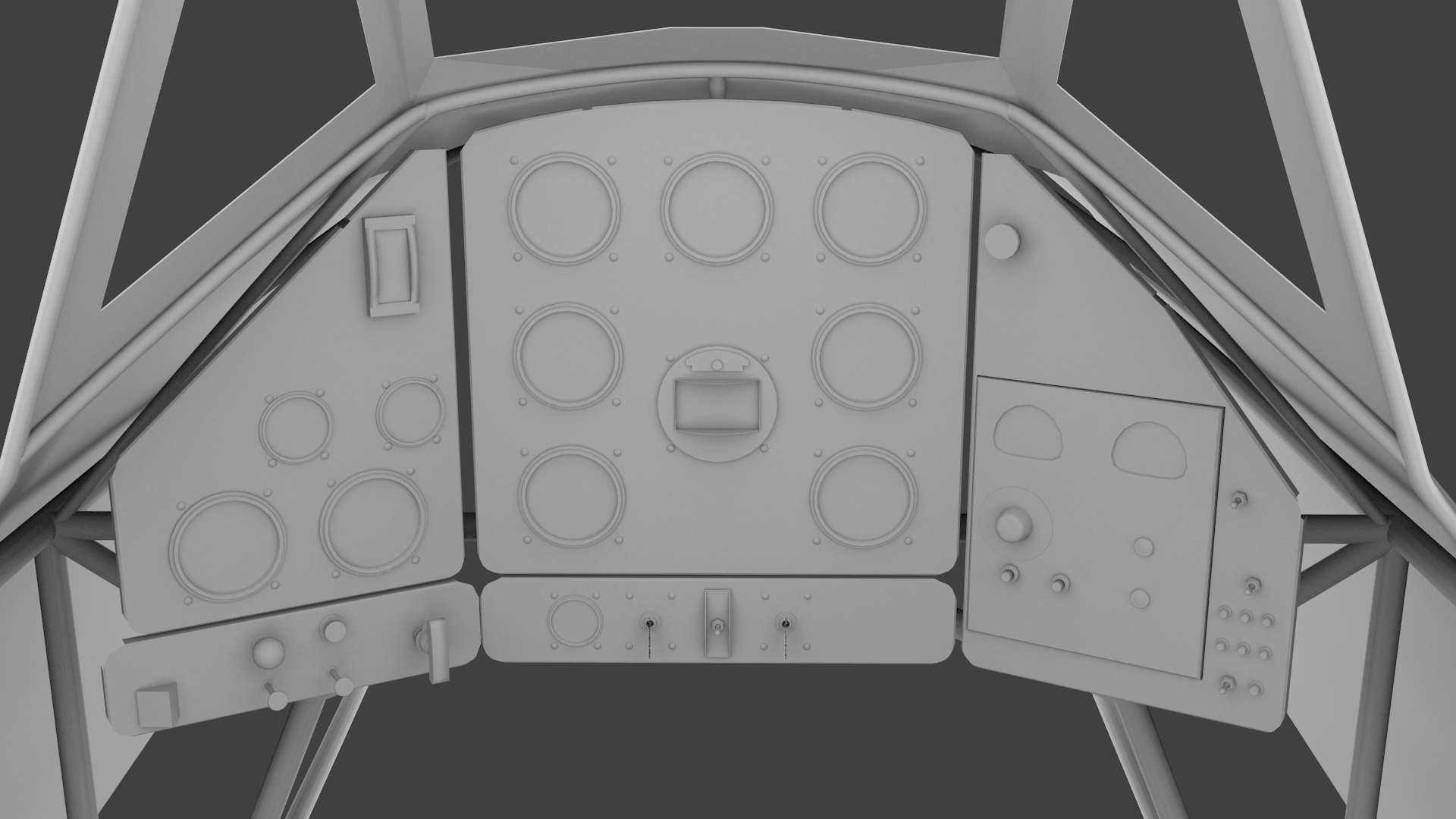

Update for tonight!

Added the majority of instruments to the panel, only a few details are missing still.


Attachments

  • int_panel_01.png
    970.6 KB · Views: 763
It look promising, the modelling is great. I'd like to make an airplane but the cockpit is what make me step backward. all those gauges and coding, animations etc. :duck:


hairyspin

Resource contributor
You build it one step at a time Bernardo: it may look daunting but aircraft exterior modeling looks daunting to start with too. Animations and coding don't have to be uber-complex to start with, just use the default modeldef.xml systems. You can impersonate Bill Leaming later as experience and confidence grow. ;)

You're no novice with Blender, Dutcheeseblend!

thanks for the advices, but I almost can't cope with modelling . I feel like "or modelling or virtual cockpit creations".all this seem like a huge task. anyway who know...:cool:


Dutcheeseblend

Resource contributor
@hairyspin: Thank you! I'm working with Blender for almost four years now;)

@bernardo: Just try:)! Before I started with this VC, I felt my project as nearly abandoned. But... just start and try! Work structural. Begin with the basic shape, let then follow everything in a logic order. And, now what you're modelling. I have the ability to read a book about the Fokker during breaks at work (I've looked at the photographs for a hundreds of times) and discover what the model should be. And again, in a structural way!
...
Well, just my approach;)
