MSFS20 gear animation don't work in sim | please help

Y

YanivNadell

Messages
3
Country
israel
I'm working on an aircraft and now I'm got to the part of wheels animation.
I did the animation in blender and it does not work for me in the sim.

<Component ID="GEARS">

<UseTemplate Name="ASOBO_GEAR_Center_Template">
<ANIM_NAME>GEAR_Center </ANIM_NAME>
</UseTemplate>

</Component>

I put all the animations of center wheel animation
And I called them GEAR_Center in blender and in script and it just did not work what to do?

Hi,
Did you use the NLA for assigning animations to multiple parts? you have to name the animations themselves (No need to name the actual objects Gear_Center).

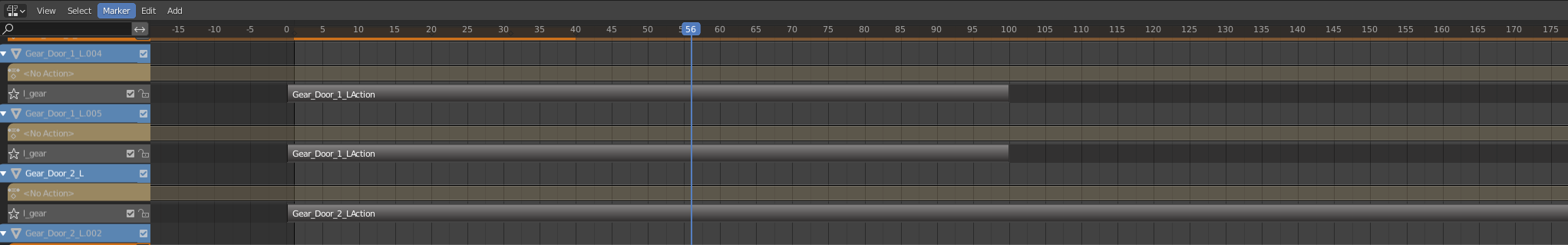

Example this following image you see3 items named Gear_Door_1_L.004 ,Gear_Door_1_L.005 ,Gear_Door_2L .... But their animation name is common "l_gear", so all these parts will animate when left gear animation is triggered in the sim:
