FSXA How to extrude

Assuming your shape matches correctly:

A Plane modifier applied to each side of the hull would most likely suffice

Scale the vertices in the UVW-unwrap window so that the front of the ship matches the texture.

Using UVW-face selection mode, select the faces that hang off the texture

Ctrl-B to break the UVW welds along the seam

Position the UVW faces for the rear part of the ship on the appropriate part of the texture.

If your hull does not match the shape of your texture you may come "unstuck" at this point and need to improvise.

Thanks Hcornea, the other parts more o less I can figure oout, but the hull seem to me like a mistery, very weird (according to the texture layout), I guess all those uvw mapping are exported to make the texture sheet in any editor ?. regards

texturing the hull

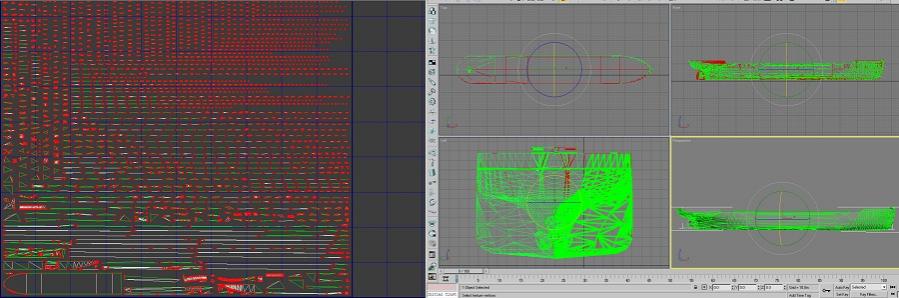

Well could be a little complicated the mapping of the hull, this is a plannar map, see the picture it's getting funny.


Attachments

  • flatten mapping.jpg
    flatten mapping.jpg
    49.6 KB · Views: 487
A few thoughts:

Just the hull polygons selected to apply the map?
Map oriented along the long axis of the ship? (can't be sure, but it looks end-on)
Equal dimension plugged into the map? (by default it shows the dimensions of your selected parts which is confusing, try something like 400 x 400)

Unless you have loads of overlapping polygons, this should provide a pretty clear map.

No problem, what you say, I think thousand of overlapping polygons, in many areas I see how I can delete polygons of the hull surface without problems, I meant the hull left intact. the only thing wich can be identified is the deck which appear at the bottom left corner, all the rest are tiny polygons with thousands of vertices.toough the vertices were welded. I made an unwrap just of the right hull side, this make useless all the earlier questions, so no problem ,anyway all have been going better than expected, but never do trials or take this as an excersize, now what I want is finish this ship. :cool:
Edit: All right, I made flatten map bofore go to the edit window and all is correct, I made Flatten mapping inside the editor, wich output was that of the picture, I have to fight with the idiom and polygons,I guess it must be exported as a template to make the texture to fit with the hull.

Last edited:
