LED anti-collision animation

T

thommoj

Messages
5
Country
australia
Hi all,

Hoping someone can steer me in the right direction, I'm trying to sort a textured LED anti-collision light in MSFS but can't for the life of me get it flashing. Not sure if I'm missing something obvious but it just isn't flashing, I have it emissive, which turns on when the beacons are selected it just doesn't flash.

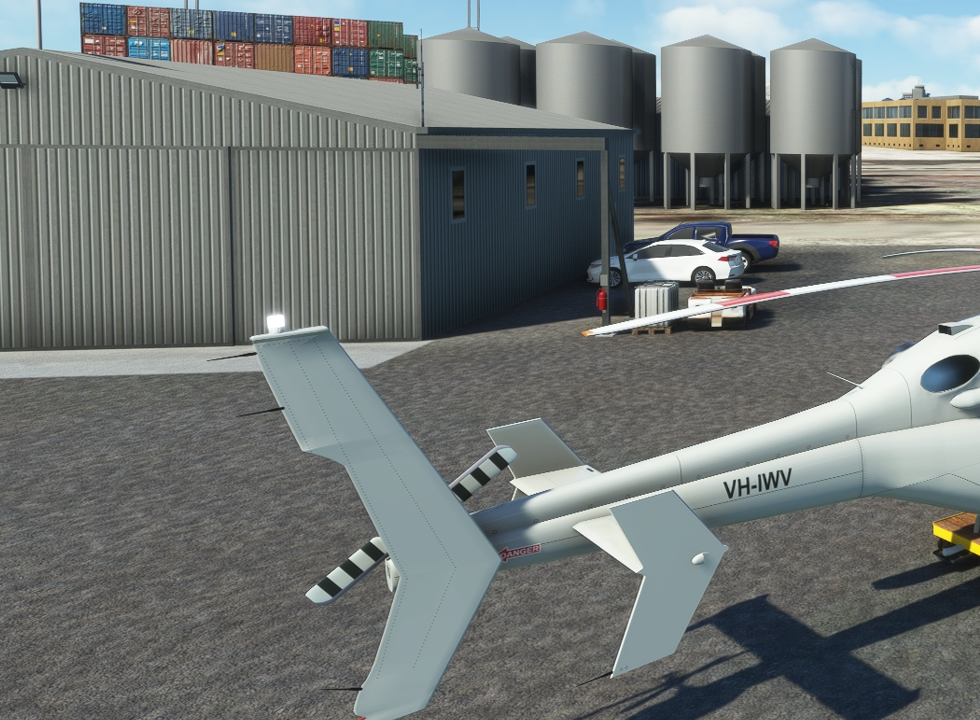

Is there something I should be setting within Blender to have it flash? Ignore the face the image below has a white beacon. Any tips?? Code I'm using in the exterior xml below:

<Component ID="LED_BEACON" Node="BEACON">
<UseTemplate Name="ASOBO_GT_Material_Emissive_Code">
<EMISSIVE_CODE>(A:LIGHT BEACON ON:1,bool) 1 == if{ 400 } els{ 0 }</EMISSIVE_CODE>
</UseTemplate>
</Component>



Emissive_code outputs the amount of emissive of that component, so your code says
When the light beacon switch is on, throw emissive go 400, otherwise set it to 0
It is missing the timing when you want that to appear

Code:
<EMISSIVE_CODE>(A:LIGHT BEACON ON:1,bool) 1 == (E:ZULU TIME, seconds) 2 % 0.5 &gt; and if{ 400 } els{ 0 }</EMISSIVE_CODE>
