I am working on a model where the texture colors are being automatically adjusted with the LOD setting within the sim developer mode, and I wonder how I can stop it from doing this.

When moving outwards from LOD1 the textures are darker than with LOD0.

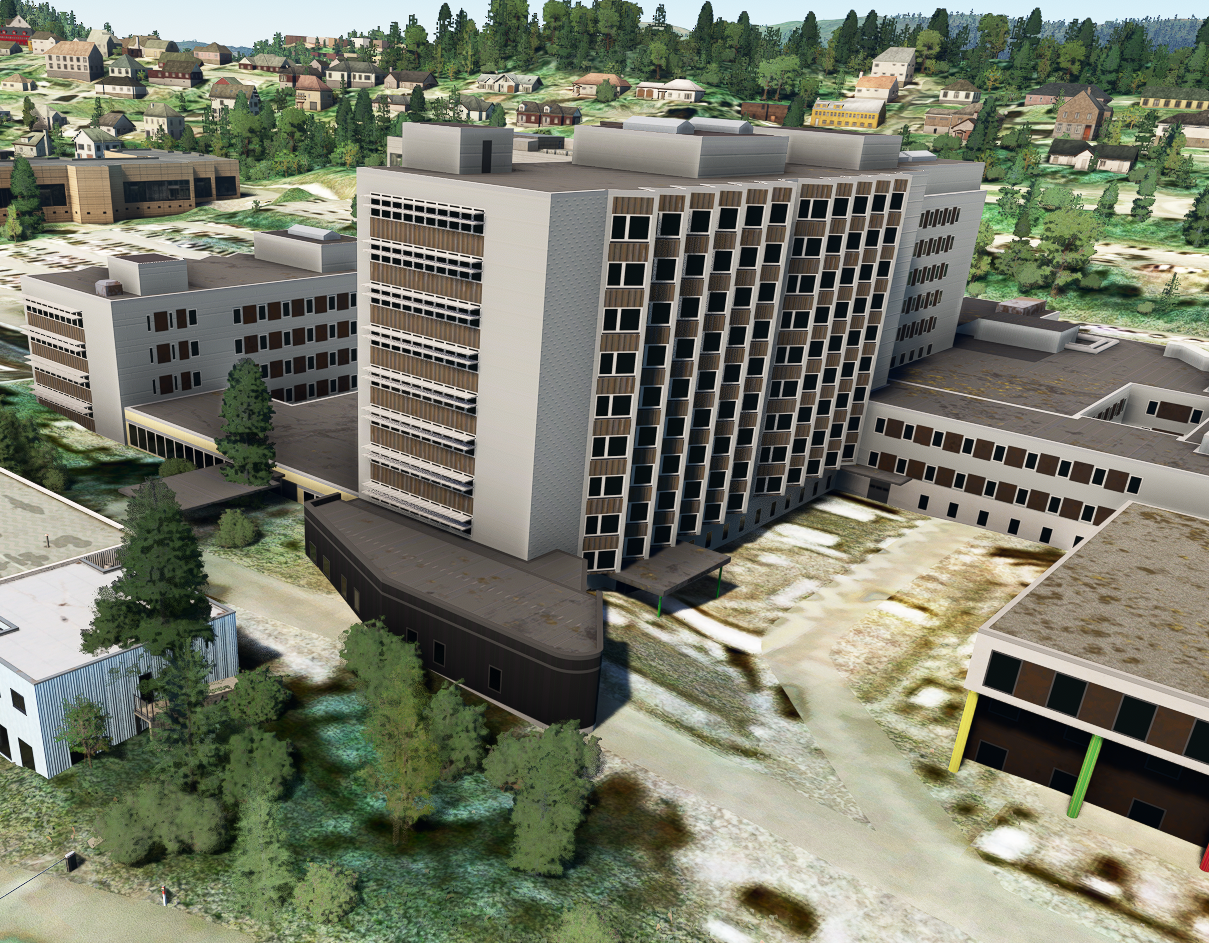

LOD0

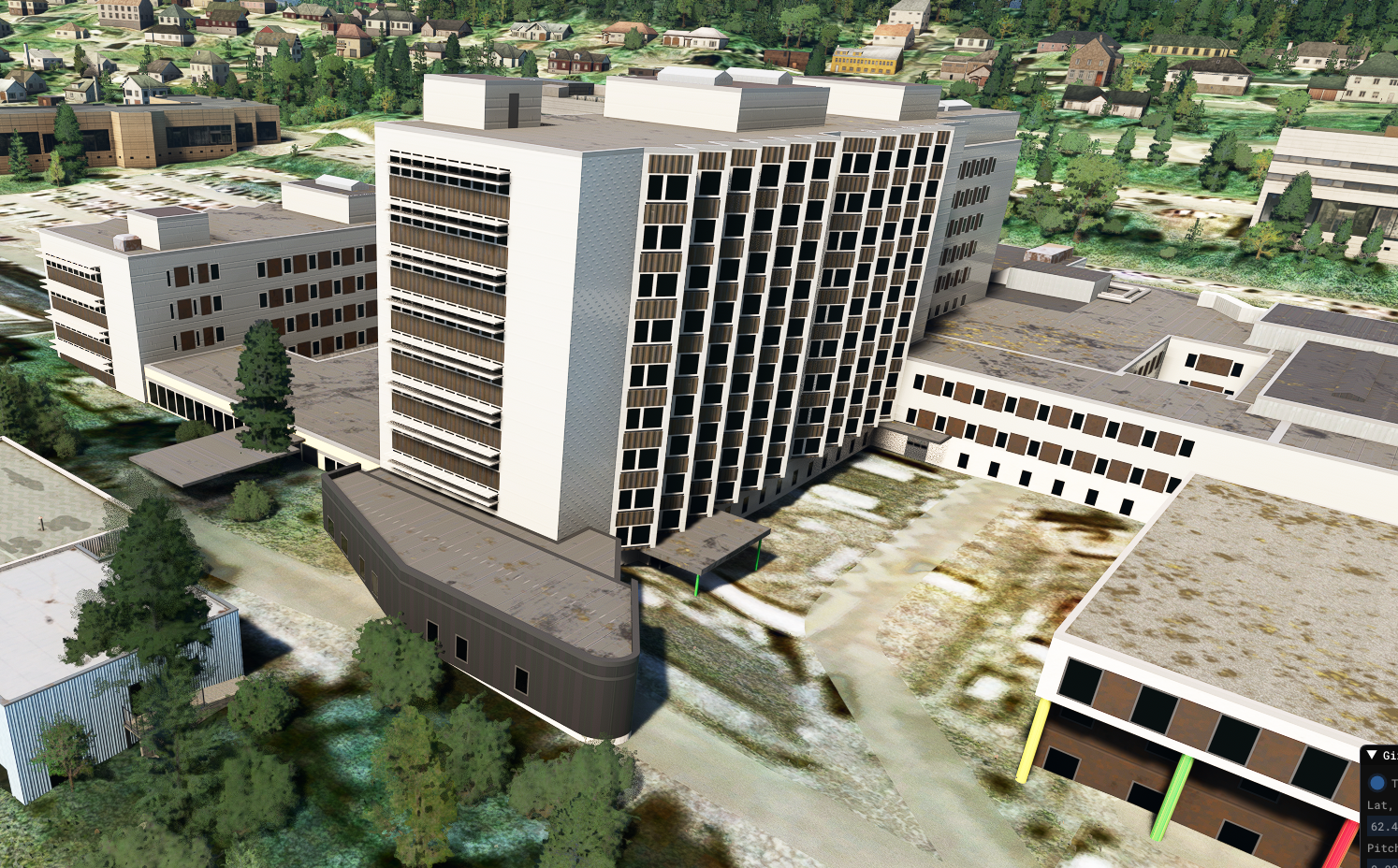

LOD1->



[GaryGB]

I currently have no info on why implementing LOD's causes glTF's to "Turn To The Dark Side" (possibly a risk of using Blender ?)


But, all joking aside ...perhaps this may provide some info on what you are observing ?

https://www.google.com/search?q=MSF...hUKEwjexezHtu2SAxXEDTQIHSkhBvEQrQIoAnoECBwQAw


Your 3D models shown above already look great, regardless of perceived shifts in color "Brightness".

GaryGB



[Nordscape]

I currently have no info on why implementing LOD's causes glTF's to "Turn To The Dark Side" (possibly a risk of using Blender ?)

Lol. Glad someone else have as dry a humour as myself

But, all joking aside ...perhaps this may provide some info on what you are observing ?

https://www.google.com/search?q=MSF...hUKEwjexezHtu2SAxXEDTQIHSkhBvEQrQIoAnoECBwQAw

I've tried to search for the issue, but I cannot really figure this one out. I asked ChatGPT and will try to work the problem, but so far no success.

Your 3D models shown above already look great, regardless of perceived shifts in color "Brightness".

Thank you. The new workflow takes a bit more time, but it is much more detailed. It requires some foresighting on what issues may arise when trying to adjust materials to texture sets. Currently the resolution is too low on multiple parts of the building, and I also get some texture issues here and there... . But I'm getting there....



[GaryGB]

...perhaps this may provide some info on what you are observing ?

https://www.google.com/search?q=MSF...hUKEwjexezHtu2SAxXEDTQIHSkhBvEQrQIoAnoECBwQAw

I've tried to search for the issue, but I cannot really figure this one out. I asked ChatGPT and will try to work the problem, but so far no success.

It may be that I insist on using FireFox and not a browser which Discord can 'snoop' ...before they are willing to show all 'rich' content.

Google quotes in a few linked threads containing posts by Federico Pinotti (aka "mamu") cited Metalness as suspect in dark LOD Materials.

But now I do not find "dark" in any of the Google quoted statements to that effect anywhere in the currently retrieved threads via FireFox.

Possibly Federico edited the original posts since Google crawled the website ?


It 'may' be a Blender or MSFS quirk; but if LODs were made via MCX, we can discuss that with Arno in MCX forum regarding LOD processing.


I consider Arno's MCX LOD Creator as a very promising option for LOD generation in MSFS development; we should help him fine tune it.


How exactly did you make the LODs ?

Did you use Substance to apply / re-apply Materials after the glTF 3D models were made for the LOD, or was Blender used instead ?

GaryGB



[Heermeyer]

Yep, looks like different shades of metalness or roughness channels. But its hard to tell from the screenshots.



[Nordscape]

ChatGPT suggest

It may be that I insist on using FireFox and not a browser that Discord can 'snoop' adequately before they are willilng to show all 'rich' content.

Google quotes in a few linked threads containing posts by Federico Pinotti (aka "mamu") cited Metalness as suspect in dark LOD Materials.

But now I do not find "dark" in any of the Google quoted statements to that effect anywhere in the currently retrieved threads via FireFox.

Possibly Federico edited the original posts since Google crawled the website ?


It 'may' be a Blender or MSFS quirk; but if LODs were made via MCX, we can discuss that with Arno in MCX forum regarding LOD processing.


I consider Arno's MCX LOD Creator as a very promising option for LOD generation in MSFS development; we should help him fine tune it.


How exactly did you make the LODs ?

Did you use Substance to apply / re-apply Materials after the glTF 3D models were made for the LOD, or was Blender used instead ?

GaryGB

I use Substance Painter to add all materials, and then final MSFS-specific attribues before exporting. The only thing I corrected within Blender before exporting was to add emissive lights to the building.

I see CGPT suggest not to use Decimation to manually create LODs, but rather use Limited Dissolve as it will contain the shader values better.

But to summarize from what you are saying; should I not use metal maps to my model to avoid this issue?
