MSFS 2024 glTF exporter only exports .xml

Evilrash

Evilrash

Messages
65
Country
bahrain

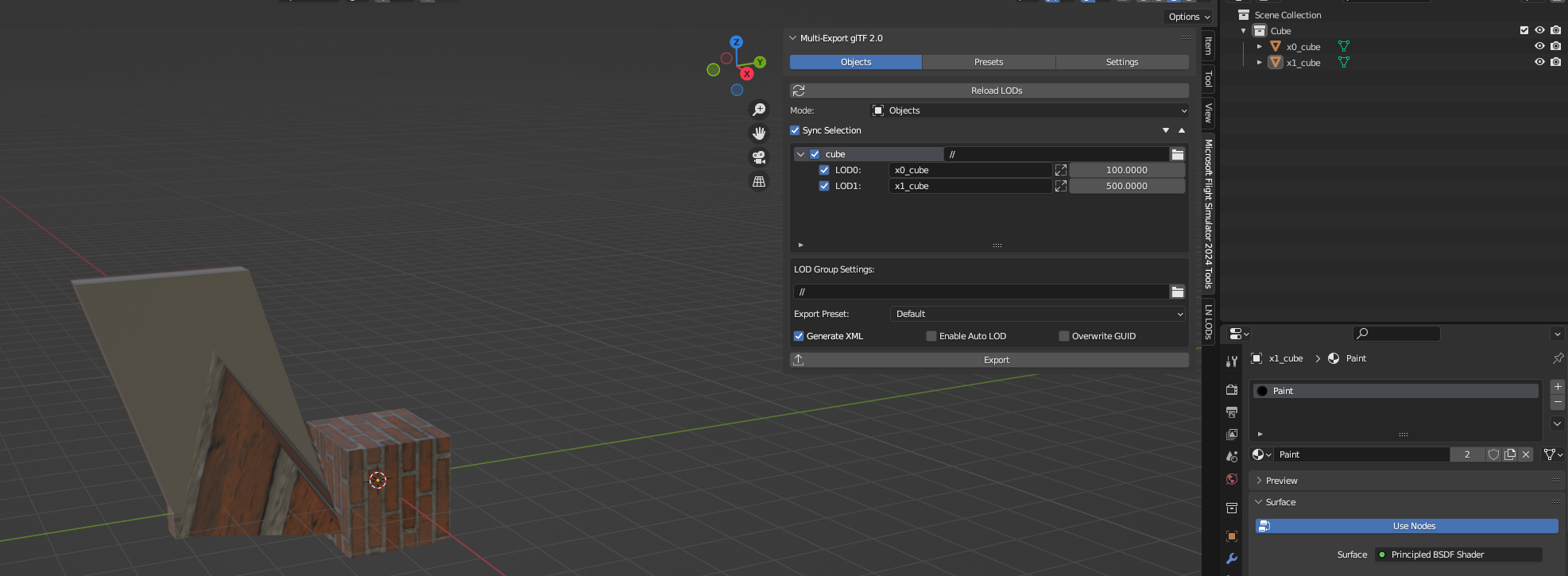

So I am using blending 3.6X version and while trying to export my object, its only creating a .xml file.


Has anyone encountered this issue too? Do advice

Please ignore the model. It was just a test cube for me.

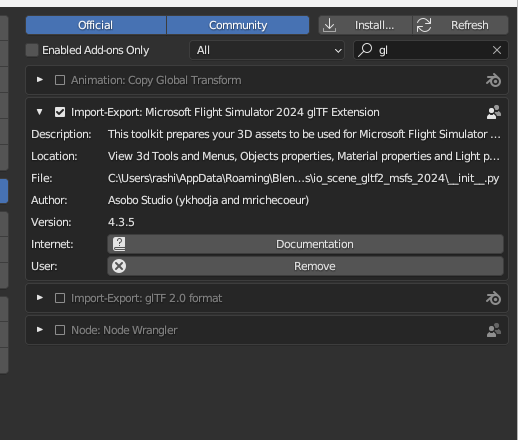

Additionally, I am using Blender version - 3.6.23 and MSFS 2024 glTF Extension version - 4.3.5



Attachments

Thanks @rhumbaflappy I have managed to fix it. The issue was the blender version possibly not compatible with the extension. Moved to 4.2 LTS and it works superb

I'm glad you got it working, but there is nothing wrong with Blender 3.6.23 and the exporter. In fact I recommend sticking with 3.6.xx as the exporter has had some problems with Blender 4.x

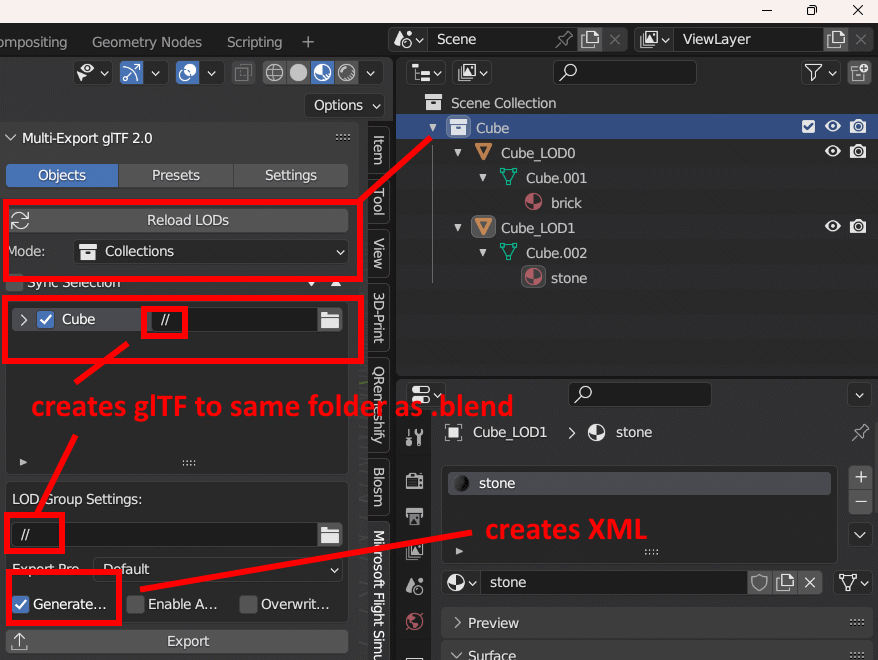

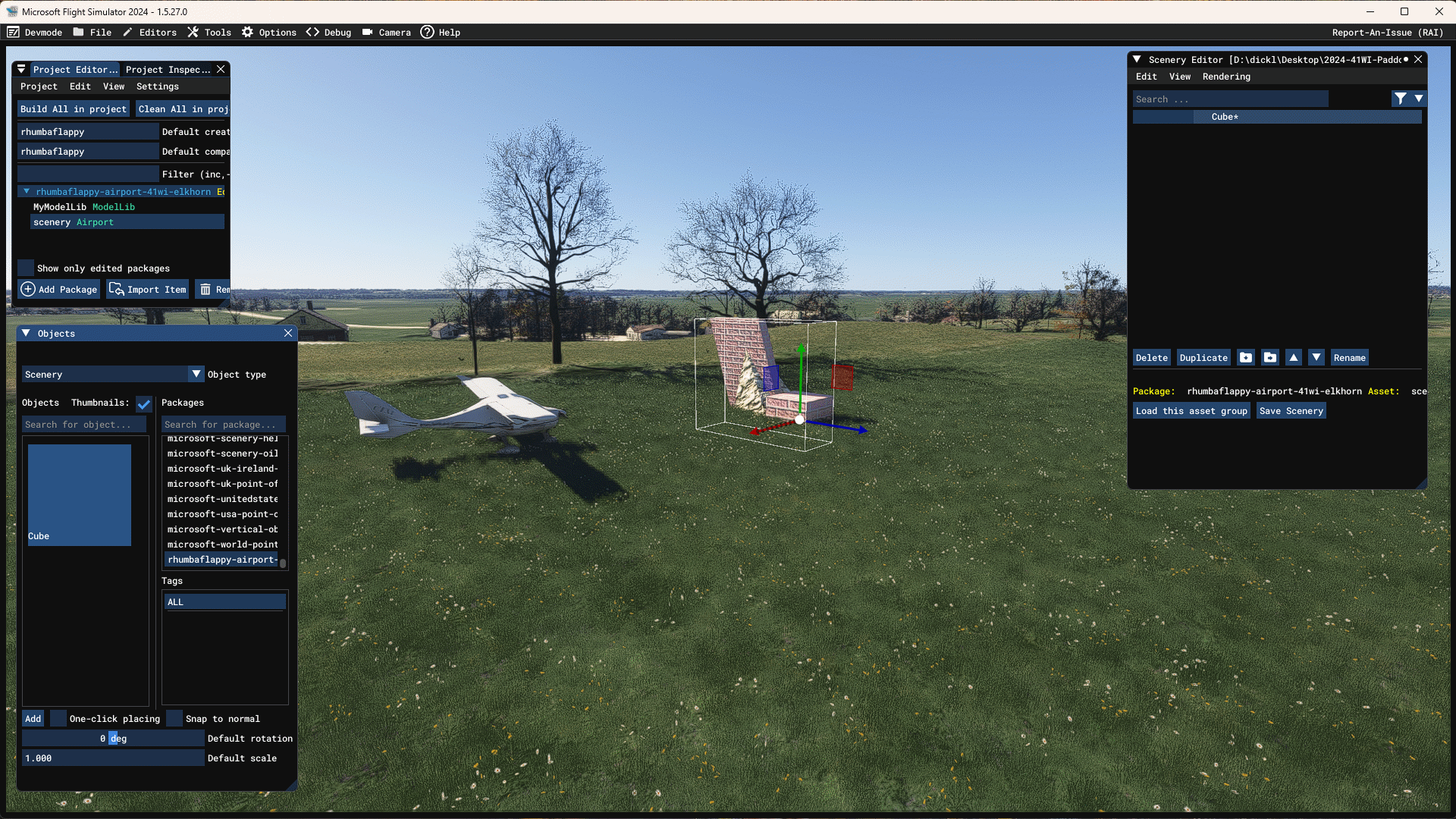

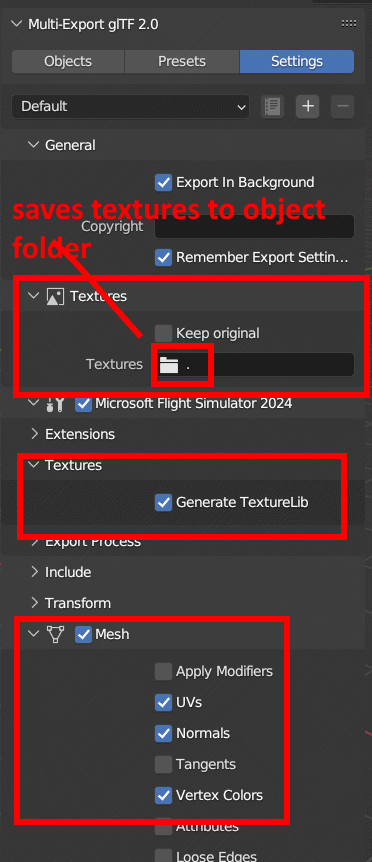

Here's how I set the exporter to save the glTF, XML and textures (with their xmls) all in the .blend folder. I then copy the files to the project's folders.







Attachments

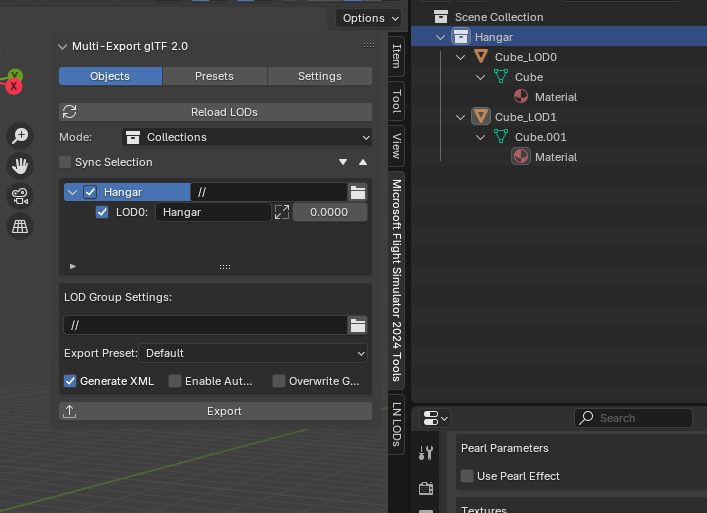

Are we supposed to see it this way? as I expect the LOD1 also to be in the list, where we can put the values for it.




Secondly in the second picture if my collection has no _LOD0 name to it, it gives no valid LOD collections found
