What tolerance is in Scenproc for (not quite) right angles and paralel lines?

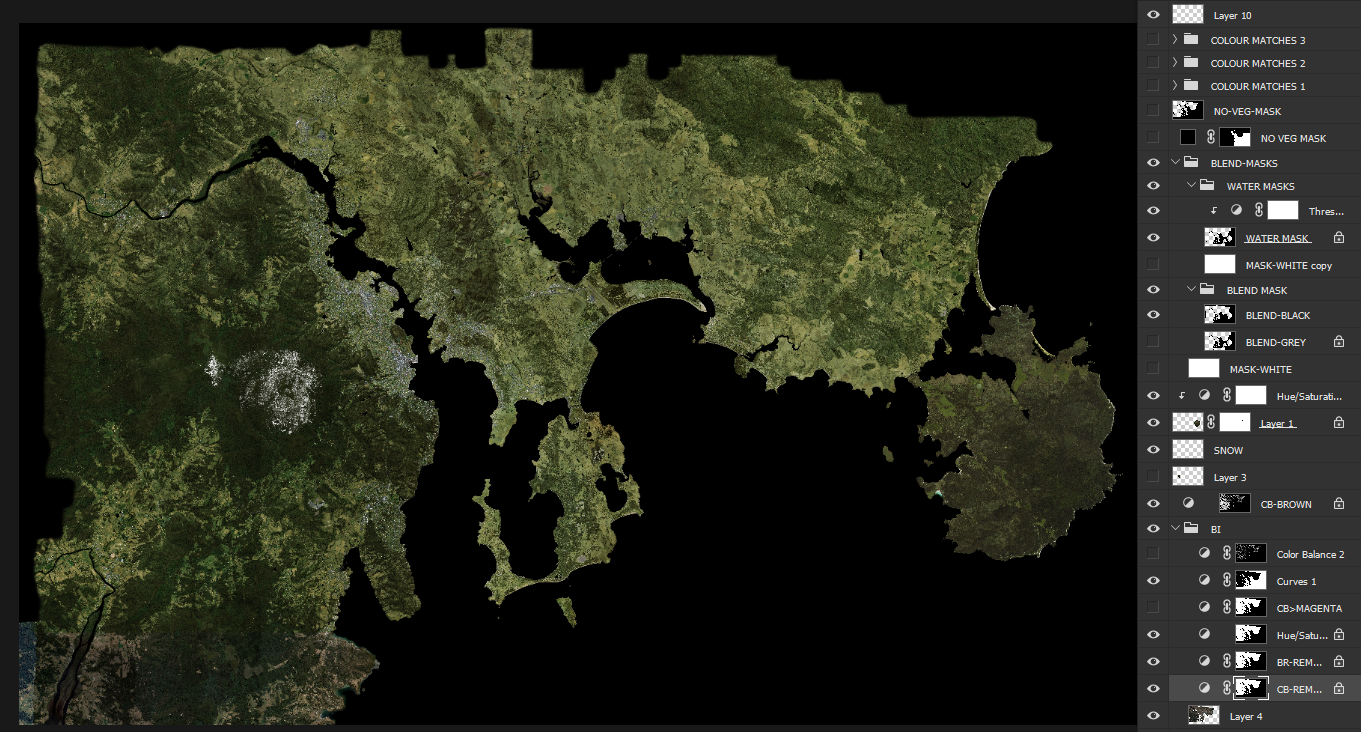

I used both the Smooth and Simplify options individually and in combination and found that Smoothing and simplifying in combinaton had the same result as simply simplifying. I haven't done the oversampling thing tho, will give that a go. My image is 210,000 by 180,000 pixels as it is, but I can break it down into many smaller chunks if I have to. I have a Multi-layer PSB file that is 100GB in size, so the PC should handle a 400MB LZW compressed TIF exploded a bit.

Ideally I could have taken background images at LOD20 instead of LOD17 in SbuilderX, but then I'd have had hundreds of images to geo-reference and been manually downloading them all (and unloading and reloading the background and redefining the download area several times for each when it stalls on the last few tiles). Scenery development can be tedious, but that would be just soul destroying...

cheers

Braedon

Hi Braedon:

That looks like a very large data load to keep in (1) *.PSD file ! :yikes:


FYI: SBuilderX creates a 1-piece BMP and a matching TXT Geo-referencing 'world' file when one performs these steps:

1.) SBuilderX Menu > File > Add Map > From Background ...

2.) Select desired aerial imagery area, then download all tiles as directed in "Add Map From Background" dialog

3.) Select desired aerial imagery area from resulting aerial imagery Background displayed in SBuilderX work-space

4.) SBuilderX Menu > File > BGL Compile ... < DO NOT 'click' [Compile] button >

5.) SBuilderX pre-assembles a 1-piece aerial imagery BMP and a matching TXT Geo-referencing 'world' file in:

[SBuilderX install path]\Tools\Work\ sub-folder

...without having actually compiled a BGL. ;)


The resulting BMP and its matching TXT Geo-referencing 'world' file can next be imported into ScenProc via "ImportGDAL":

https://www.scenerydesign.org/2014/01/import-resample-configuration/

...and then exported as a GeoTIFF via "ExportImage". :pushpin:


Possibly GeoTIFF files might prove a bit easier to manage in discrete assigned sub-folders ? :scratchch


NOTE: Although a TIF source file working set size processed by MSFS SDK Resample 'may' approach 4 GB in size in a 64-Bit Windows CMD mode task session, Resample can only create BGLs up to 2 GB in size.

Additionally, if TIF LZW compression is used, the source file working set size may double that of the aerial imagery TIF file size on disk, and could still result in a failure of compilation, as the output BGL might otherwise have exceeded 2 GB in size.

In some cases compilation of a larger submitted volume of source data within a working set may succeed when the INF file requests Resample to apply compression to the output BGL.

For example, a Resample compression level of "85" correlates with an approximately 40% reduction in output BGL size (...but may visibly reduce FS run time perceived quality of one's custom aerial imagery display).


Even if Resample tolerates the submitted volume of source data within its working set, the processing of TIF files using LZW compression reportedly can take a much larger time to complete than it does with non-compressed aerial imagery source files. :alert:

http://www.fsdeveloper.com/forum/threads/resample-cm-pixel.13637/


IMHO, it may prove more manageable to keep ones custom aerial imagery scenery source files in smaller sized tile groups in separate sub-folders. :idea:


BTW: Arno has some interesting ideas for working with folders containing many aerial imagery source files: :wizard:

https://www.scenerydesign.org/2013/06/nantucket-photo-scenery/


Hope this helps a bit more ! :)

GaryGB

Last edited:
The image is large to get consistency of colour correction across the whole area. I then break it down into 20 areas that are small enough to be exported by Photoshop then bring them into Global Mapper and carve them into about 55 georeferenced, uncompressed TIF images. Same again for the Blend and Water masks (The process is a bit more stramlined than that). I then pass the 150+ sources through resample and voila.

The most tedious step is getting all the tiles and masks out of photoshop because the tools that would automate the slicing (eg. the web slice tool) are not designed to work with anything on the scale of GIS imagery.




If I could get PS to slice it up into tiles automatically it would save a lot of time. If i had a lot of tiles that I worked on separately, the tedious bit would be synchronising adjustment layer changes across all the tiles, and making sure that what works on one tile doesn't have an undesirable adjustment on another.

I'm trying the oversample technique you mentioned now.

cheers

Braedon

Last edited:
